TOE-IN

ANTI-SQUAT

ROLL CENTER DOWNSTOP

WHEELBASE

TRACK WIDTH

901408

SB M4x8

353371

SHIM 4x10x2

903416

SFH M4x16

HARD

SUSPENSION ARMS

(HUDY #107644)

ARM REAMER

If the suspension arms DO NOT

move freely, use a HUDY Arm

Reamer to resize the holes.

➊

➋

➌

➍

➎

2mm

4x8mm

All possible mounting

alternatives of eccentric bushings.

INITIAL SETTING

Check for free movement.

DETAIL

ECCENTRIC BUSHINGS HAVE TWO DIFFERENT OFFSETS FROM THE CENTER.

Middle position = 0.5 mm or 0.5° from center.

Outer position = 1mm or 1° from center.

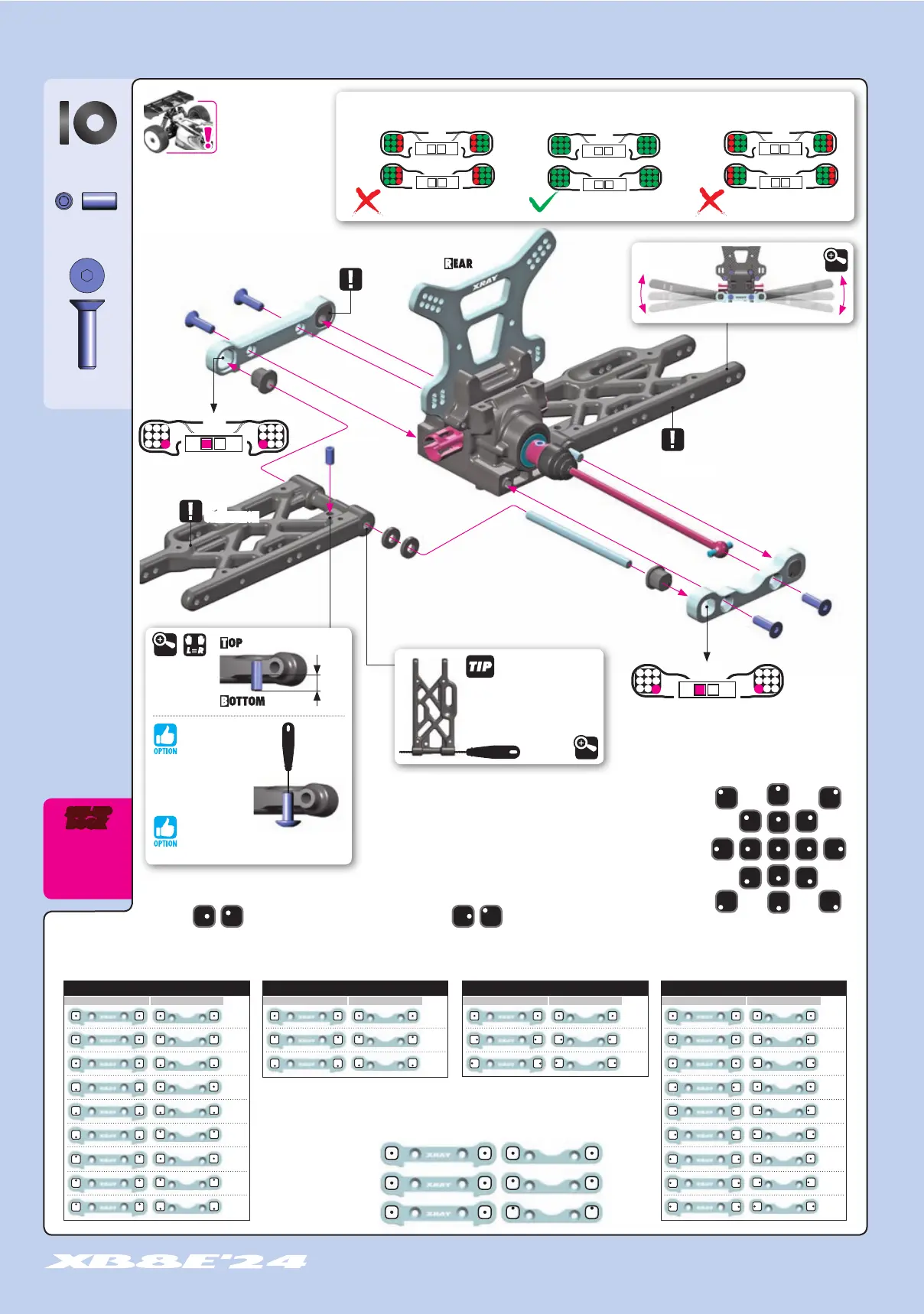

The XRAY rear alu lower suspension holders provide even greater range of adjustment for the rear suspension. Using different combinations of eccentric bushings, fine adjustment of rear anti-squat, rear toe-in,

rear roll center, and rear track-width can be obtained. For more information about the influence of rear anti-squat, rear toe-in, rear roll center and rear track width on car handling, please refer to HUDY Off-

Road Set-up Book (#209099).

The tables describe the amounts of rear anti-squat, rear toe-in, rear track-width change depending

on the combinations of eccentric bushings used with 0 and 1mm, 1° offset. The 0.5mm, 0.5° represents

the half change.

Anti-Squat Example:

0(RR) - 0 (RF) = 3°

0(RR) - 0.5 (RF) = 3.5°

0(RR) - 1 (RF) = 4°

ANTI-SQUAT ROLL CENTER TRACK-WIDTH TOE-IN

RR RR RR RRRF RF RF RF(°) (mm) (mm) (°)

=3°

=4°
