16

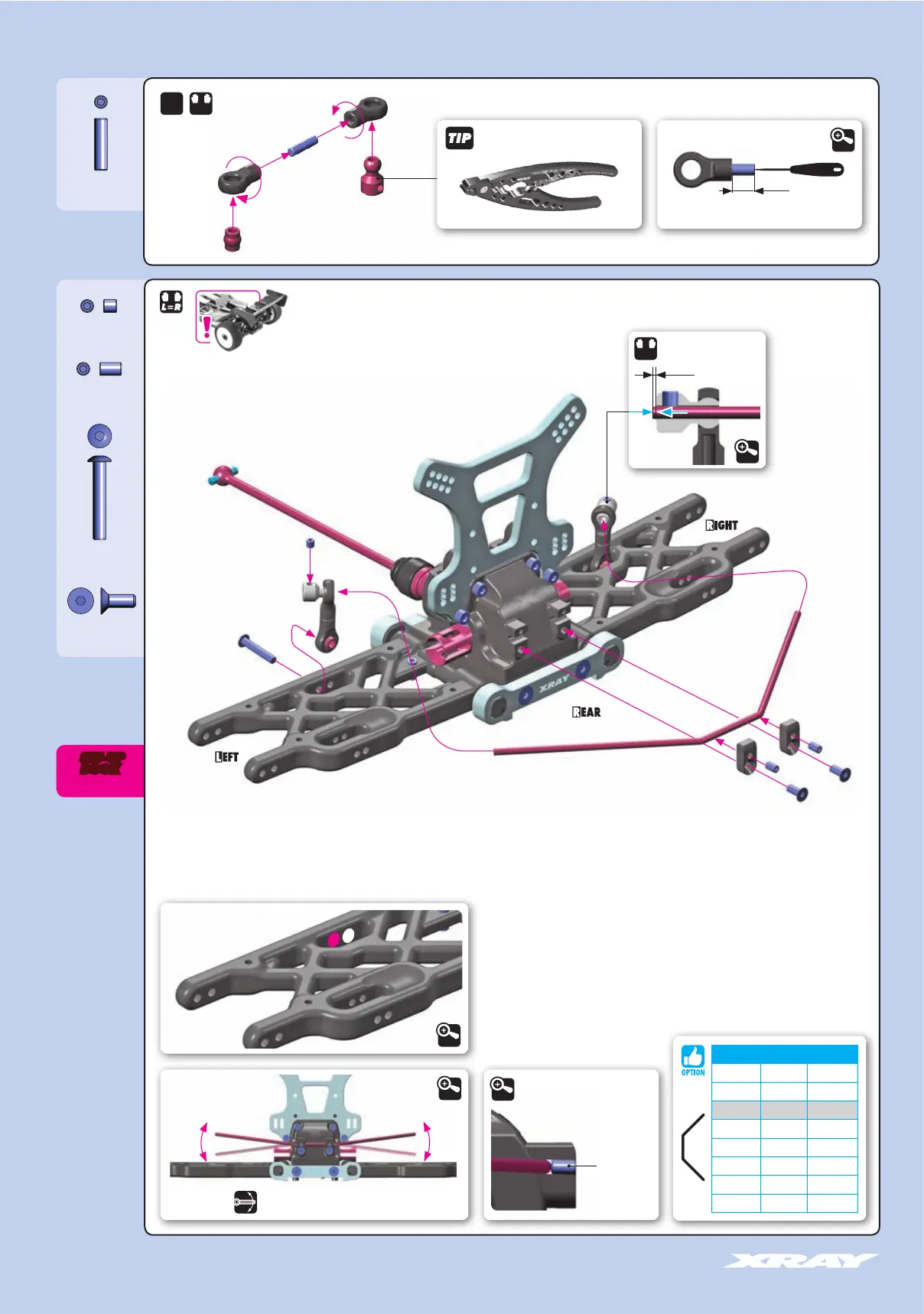

3. REAR SUSPENSION
ANTI-ROLL BAR
901303
SB M3x3
901305
SB M3x5
901312
SB M3x12
902318
SH M3x18
903308
SFH M3x8
1.5mm
6mm
DETAIL
0mm
L=R
STEP DETAIL
➍
DETAIL
Loosen the 3x5 setscrew if the anti-
roll bar DOES NOT turn freely.
Step
➊
DETAIL
Step check for free movement.
➊
DETAIL
INITIAL SETTING
DETAIL
L=R
2x
➋
➊
➌
3x5mm
3x8mm
3x3mm
3x18mm
BOOK
SET-UP
Install the pivot balls with Professional
Multi-Tool (HUDY #183011).
REAR ANTI-ROLL BARS
#353420 ø2.0mm OPTION
#353422 ø2.2mm OPTION
#353424 ø2.4mm INCLUDED
#353425 ø2.5mm OPTION
#353426 ø2.6mm OPTION
#353428 ø2.8mm OPTION
#353430 ø3.0mm OPTION
#353432 ø3.2mm OPTION
2x
2x
2x
2x
2x
