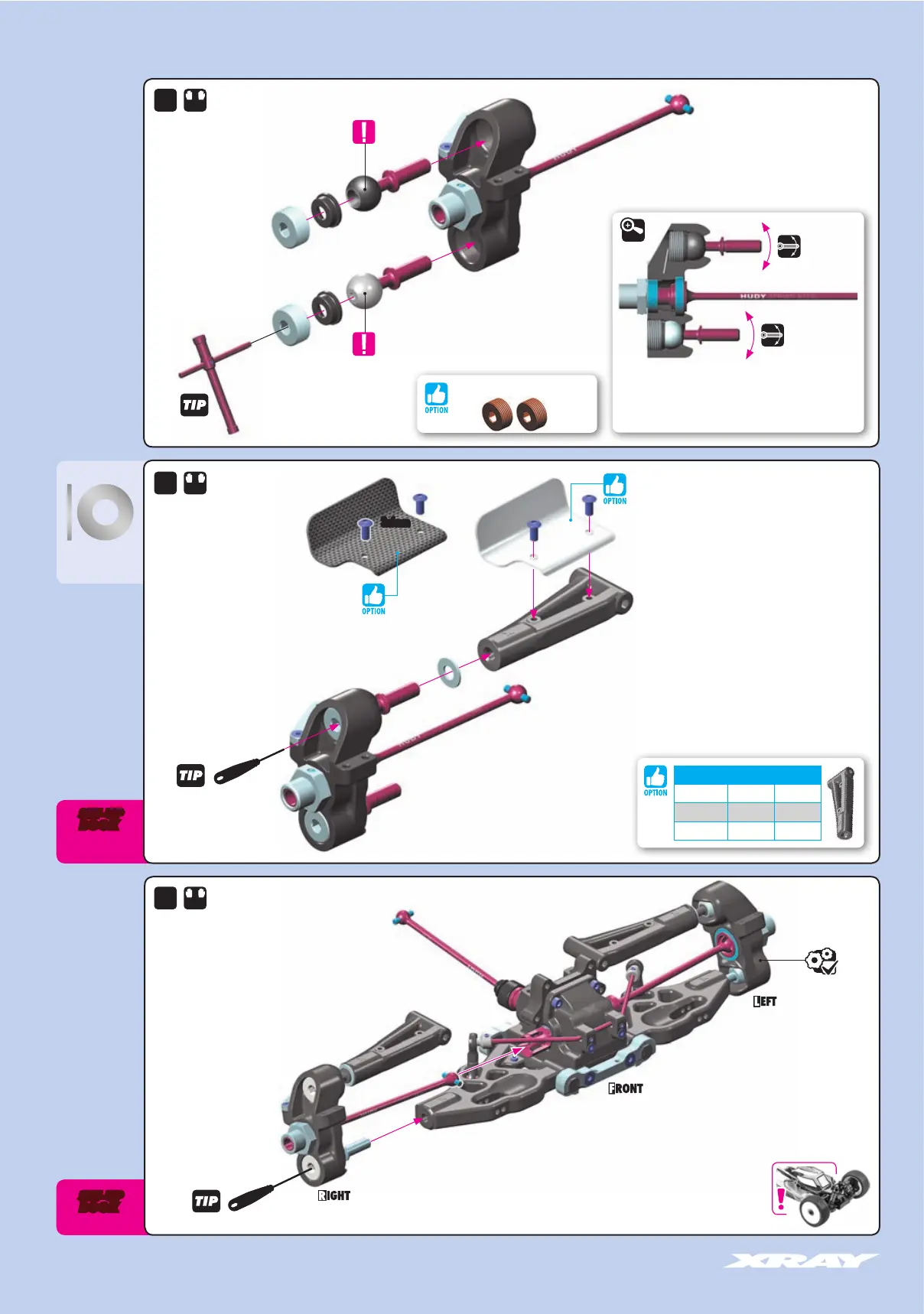

Xray XB8E User Manual

24
CAMBER
TRACK-WIDTH
ROLL CENTER
357256
SHIM 6x13x1
2x
L=R
L=R
ALU pivot ball
BLACK color
STEEL pivot ball
SILVER color
2x
2x
Tighten hex nuts using
HUDY tool #107581.
L=R
2x
PIVOT BALLS MUST MOVE FREELY
During initial assembly, tighten each hex nut until the
pivot ball starts to bind, then loosen slightly. Verify that
the pivot balls move freely.
DETAIL
2.5mm
HUDY Tool Allen 2.5mm
#352194
XB8 LEXAN® FRONT UPPER ARM WINGS IFMAR LEGAL - SET
#352195
XB8 CARBON FIBER FRONT UPPER ARM WINGS - SET
Wings (NOT INCLUDED)
6. FRONT SUSPENSION
1mm
3x6mm
3x6mm
2.5mm
HUDY Tool Allen 2.5mm
BOOK
SET-UP
BOOK
SET-UP
#357253 Brass Adjusting Nut M15x1
FRONT UPPER SUSP. ARMS
#352135 SOFT OPTION
#352135-M MEDIUM INCLUDED
#352135-G GRAPHITE OPTION

Xray XB8E Specifications

General

Chassis	7075 T6 Aluminum
Drivetrain	4WD
Shock Type	Big Bore
Motor	Not included
Battery	Not included
