26
PUSH

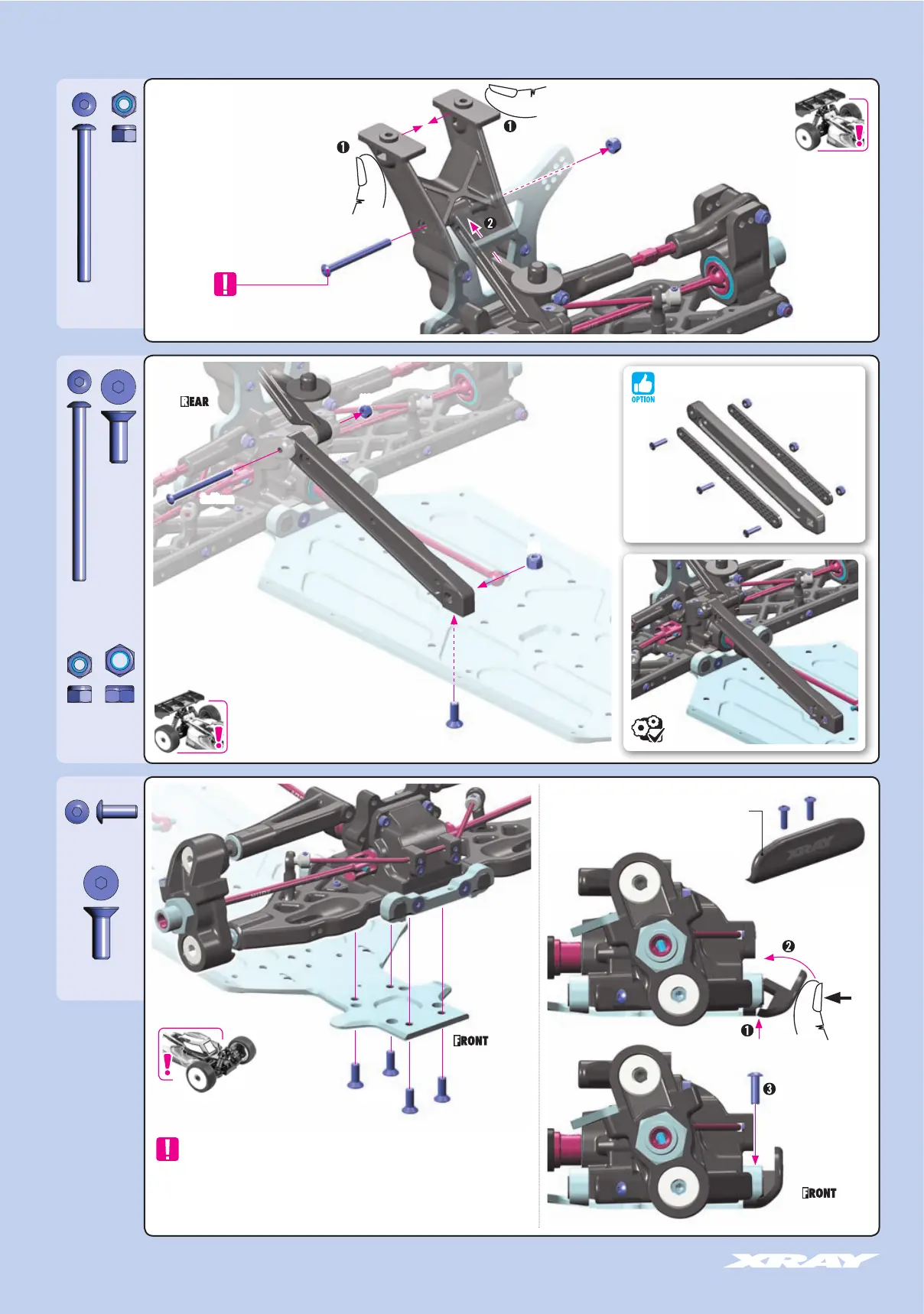

6. FRONT & REAR ASSEMBLY
902335
SH M3x35
3x35mm
902340
SH M3x40
903412
SFH M4x12
960030
N M3
960030
N M3
960040
N M4
903412
SFH M4x12
M3
M4
4x12mm
4x12mm
3x8mm
Push the top of the holder
together with fingers to insert
the brace with body post.
During initial assembly, there is no need to check gear mesh or diff play. Fitment should not be
checked until suspension holders are installed on the bulkheads and the complete assembly is
mounted to the chassis. All parts have specifically designed tolerances for proper operation once
fully assembled. After assembly, check for free rotation of all drivetrain parts and non-binding
movement of the suspension.
FRONT BUMPER ASSEMBLY
902308
SH M3x8
Overtightening will deform the composite wing holder,
and will not allow you to mount the wing as per the
instructions on page 44 step 2.
NOTE
1x
1x
1x
2x
4x
1x
1x
1x
#353280
GRAPHITE BRACE SET for extra stiffness adjustment.
3x40mm
To Next Page
