Xray XB8E User Manual

37
902325
SH M3x25
903410
SFH M4x10
960040
N M4

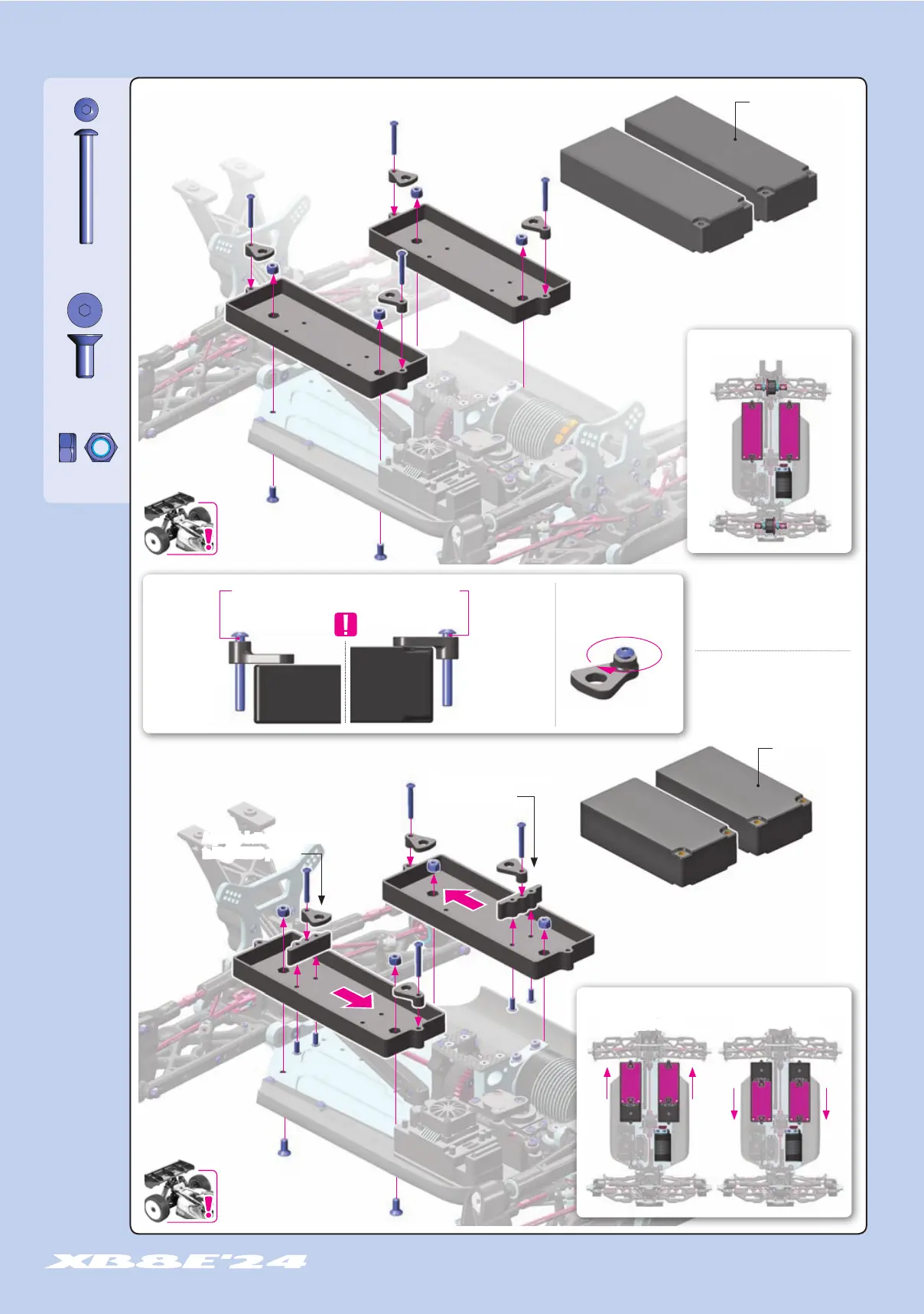

10. RADIO CASE
ALTERNATIVE 1
ALTERNATIVE 2
(INITIAL SETTING)
CONFIGURATION FOR STANDARD BATTERY PACK
CONFIGURATION SHORT BATTERY PACK
SETTINGS WITH BALANCE POSITION
Adjustable battery holder setting
in REARWARD position.
Adjustable battery holder setting
in FRONTWARD position.
Standard Battery pack
(NOT INCLUDED)
Short Battery Pack
(NOT INCLUDED)
REARWARD POSITION
FRONTWARD POSITION
ADJUSTABLE BALANCE
STANDARD BALANCE
4x
4x
4x
ORIENTATION FOR
STANDARD BATTERY
PACK
ORIENTATION FOR
LOW BATTERY
PACK
To ensure correct functioning of the battery holder, DO NOT
overtighten the screw; the holder must be able to move.
HEIGHT ADJUSTMENT
1 turn = 0.5mm

Xray XB8E Specifications

General

Chassis	7075 T6 Aluminum
Drivetrain	4WD
Shock Type	Big Bore
Motor	Not included
Battery	Not included
