#107601 HUDY Reamer for Body 0-9mm + Cover - Small
#107602 HUDY Reamer for Body 0-18mm + Cover - Large

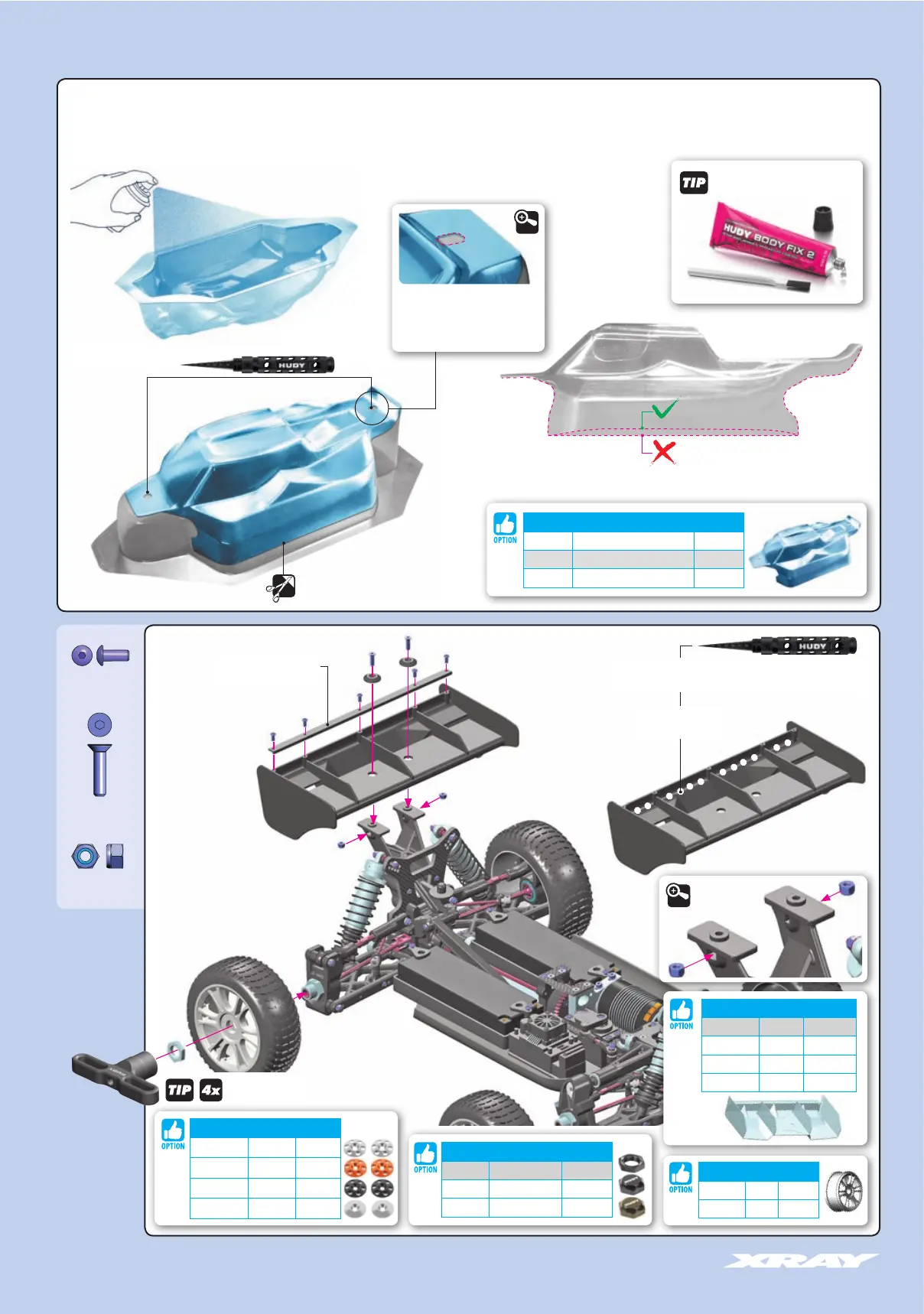

12. FINAL ASSEMBLY
Body Reamer (HUDY #107602)
SIDE VIEW
CUTTING LINE
INCORRECT
CORRECT
➍
Before cutting and making holes on the body, put the unpainted body on the chassis to confirm the
mounting position and location for holes and cutouts.
Before painting, wash the inside of the body with mild detergent, and then rinse and dry thoroughly.
Mask all windows.
Apply paint masks as appropriate.
Paint the body using paints formulated for polycarbonate bodies.
When the paint is dry, remove the masking.
Carefully cut out the body using appropriate scissors or cutting tools.
When you have finished cutting, peel off the external protective films.
➊
➋
➌
➎
➏
➐
➑
To reinforce the body or to fix broken
body use #106281 HUDY BODY FIX.
XRAY STARBURST WHEELS
#359808 Pink OPTION
#359809 Yellow OPTION
DETAIL
To tighten the setscrew you can also use the
HUDY 17mm Wheel Nut Tool #107570.
DETAIL
Be sure to make this rear body
mount hole oval so in the case of
chassis flex after a big jump the body
mount will not tear up the hole.
XB8 BODIES
#359712 HIGH-SPEED LIGHTWEIGHT OPTION
#359713 "EAZY" INCLUDED
#359714 "EAZY" LIGHTWEIGHT OPTION
HUDY REAR WING SHIM
#293561 SILVER OPTION
#293561-O ORANGE OPTION
#293561-K BLACK OPTION
#353561 SILVER OPTION
WHEEL NUTS
#355261 OPEN RIBBED INCLUDED
#293560 COVERED RIBBED OPTION
#355265 COVERED RIBBED OPTION
WINGS
#353517-K BLACK INCLUDED
#353517 WHITE OPTION
#353517-Y YELLOW OPTION
#353512 LEXAN
®
OPTION
