46
DIFF MAINTENANCE

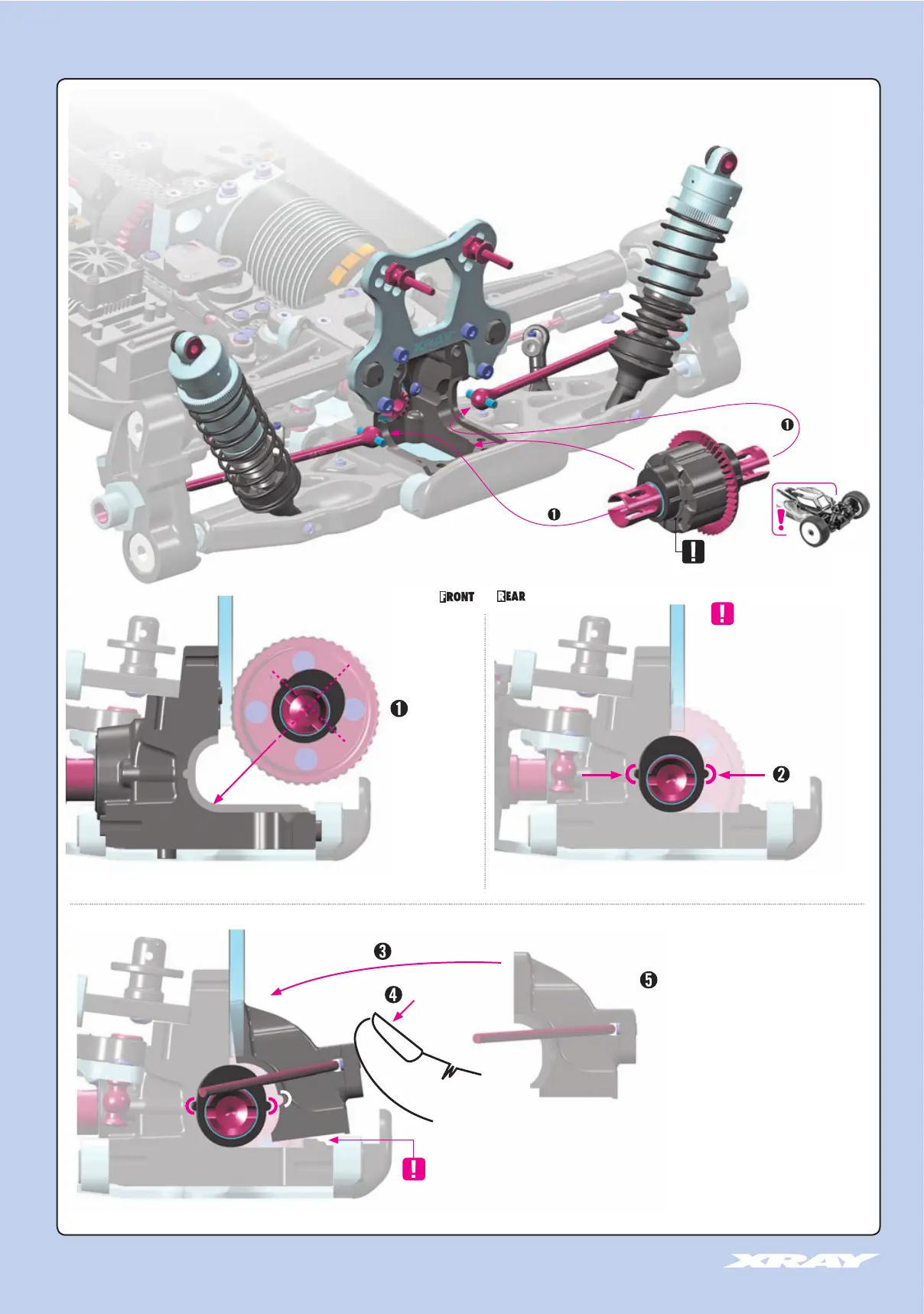

INSTALLING THE DIFFERENTIAL WHEN CAR IS ASSEMBLED
&
EXTREMELY IMPORTANT
HUB MUST BE INSERTED IN
GROOVE AND PROPERLY
PRESSED INTO BULKHEAD.
"CLICK"
RE-INSTALL HARDWARE
- Gearbox Cover Upper Screws (2)
- Gearbox Cover Lower Screws (2)
- Shock Absorber Locknuts (2)
- Reconnect Anti-Roll Bar Linkage
THE COVER MUST BE ALIGNED WITH LABYRINTH
GROOVE AND THEN PRESSED INTO PLACE
Check that left and right Diff
Height Inserts are installed in
the same orientation.
NOTE
ORIENTATION
