Xray XB8E User Manual

6
DIFFERENTIAL GEARS

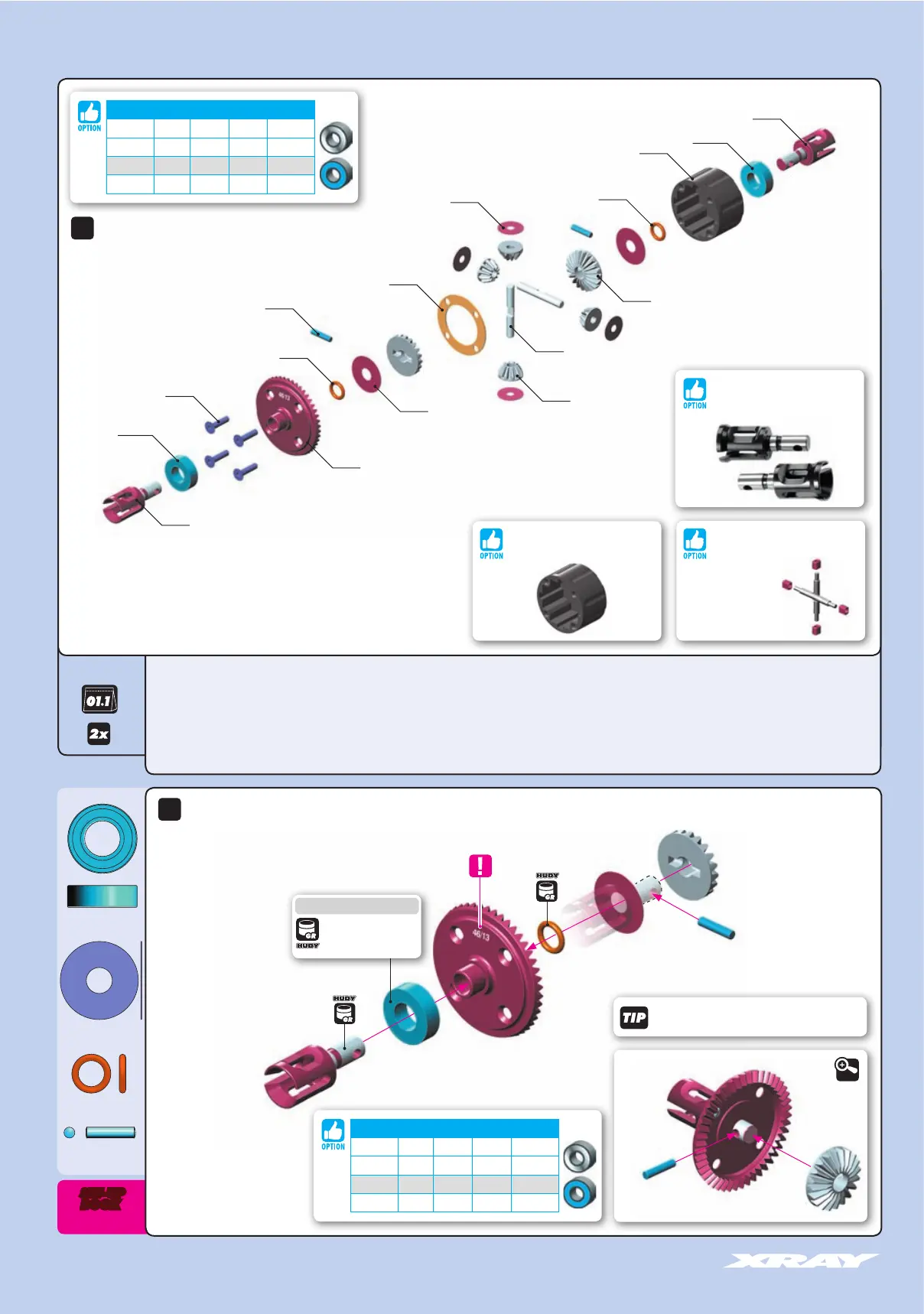

1. FRONT & REAR DIFFERENTIALS
2x
2x
➊
➋
➌
➍
➎
➏
354846 F/R DIFF LARGE BEVEL GEAR 46T - MATCHED FOR 13T PINION GEAR
355006 DIFFERENTIAL 46T - MATCHED FOR 13T PINION GEAR - SET
355022 DIFFERENTIAL CASE - V2
355031 STEEL DIFF BEVEL & SATELLITE GEARS - V2 (2+4)
355065 DIFF OUTDRIVE ADAPTER - V2 - HUDY SPRING STEEL™ (2)
355084 F/R DIFF PIN (2)
355091 F/R DIFF GASKET (4)
903312 HEX SCREW SFH M3x12 (10)
940816 BALL-BEARING 8x16x5 RUBBER SEALED - GREASE (2)
964030 WASHER S 3.5x12x0.2 (10)
964060 WASHER S 6x18x0.2 (10)
971061 SILICONE O-RING 6x1.55 (10)
980261 PIN 2.5x11.5 (10)
BAGS
940816
BAG 00.9
BAG 00.9
903312
354846
964060
355031
355031
971061
355022
940816
355091
964030
980261
971061
355084
355065
355065
940816
BB 8x16x5
964060
S 6x18x0.2
971061
O 6x1.55
980261
P 2.5x11.5
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
STEP DETAIL
➎
➎➏
➏
DETAIL
BOOK
SET-UP
IMPORTANT!
Use matching outdrives on left and right sides of a diff.
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
46/13T
(46/13T)
XRAY BALL-BEARINGS
#930816 8x16x5 GREASE STEEL OPTION
#930817 8x16x5 OIL STEEL OPTION
#940816 8x16x5 GREASE RUBBER INCLUDED
#940817 8x16x5 OIL RUBBER OPTION
# 355064
F/R DIFF. OUTDRIVE ADAPTER
LONG - V2 - HSS™ (2)
#355086
HEAT-RESISTANT F/R ALU DIFF
PINS+ INSERTS (SET)
#355022-G
DIFFERENTIAL CASE - V2 - GRAPHITE
XRAY BALL-BEARINGS
#930816 8x16x5 GREASE STEEL OPTION
#930817 8x16x5 OIL STEEL OPTION
#940816 8x16x5 GREASE RUBBER INCLUDED
#940817 8x16x5 OIL RUBBER OPTION
2x
2x
2x
2x
