Xtant2.2/Xtant4.4 Amplifier Owner’s Manual

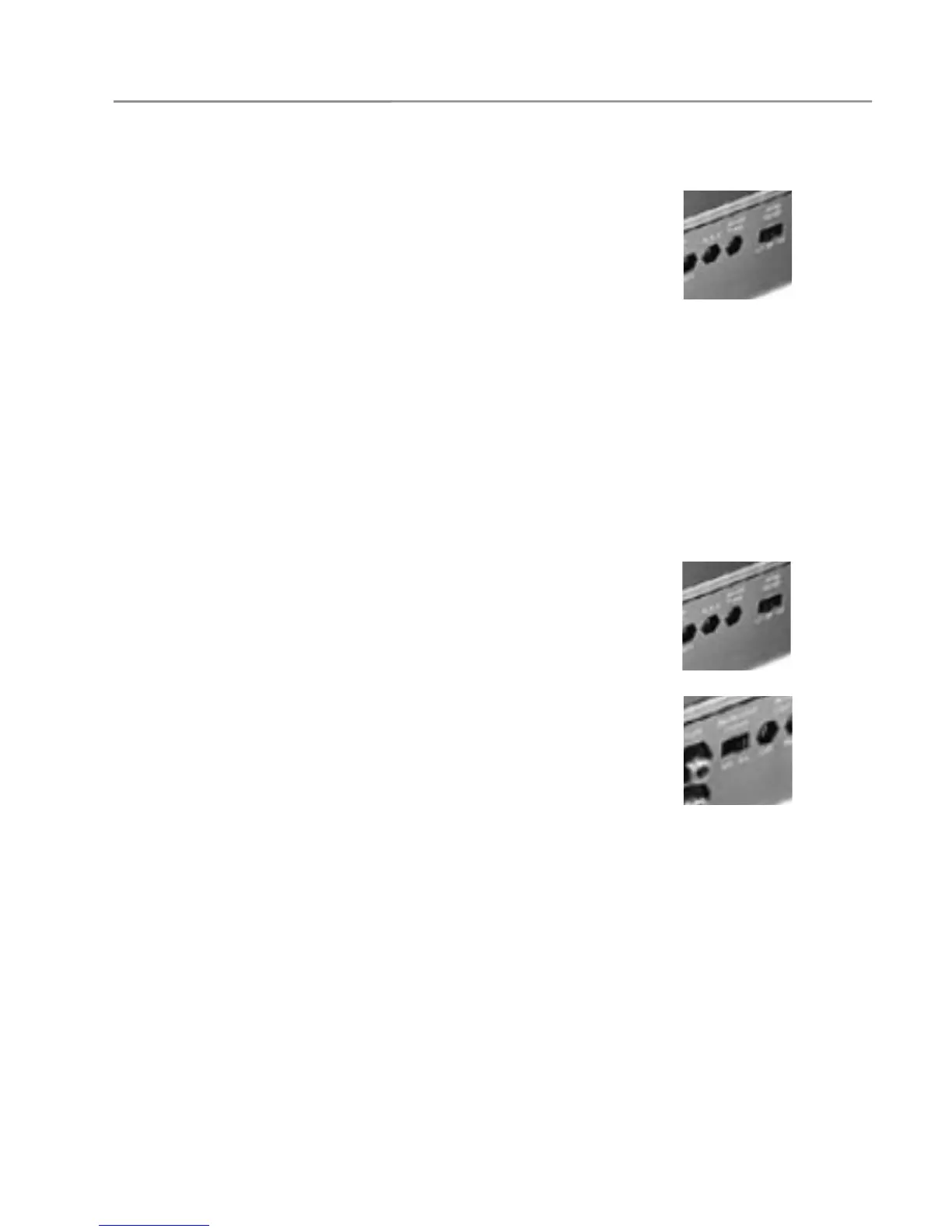

ADJUSTMENTS
CROSSOVER SELECTION
The Xtant2.2 amplifier has built-in High-pass/Low-pass crossover
1. When HP (High-pass) is selected, the amplifier will be devoted to mid/
tweeters.
2. When LP (Low-pass) is selected, the amplifier will be used to drive woof-
ers/subwoofers.
3. When BP (Bypass) is selected, the amplifier is used as a full range
amplifier.
The Xtant4.4 amplifier has built-in High-pass crossover for the front channels and a High-pass/
Low-pass crossover for the Rear channels.
1. When HP (High-pass) is selected, the outputs will be devoted to mid/tweeters.
2. When LP (Low-pass) is selected, the outputs will be used to drive woofers/subwoofers.
3. When Full (Full Range) is selected, the outputs is used as full range
outputs.
CROSSOVER FREQUENCY SELECTION
Crossover frequencies for the on-board crossovers are adjustable between
40-120Hz Hz. Adjust the setting according to your speaker component
specification or to your particular preference—counter-clockwise for a lower
frequency, clockwise for a higher frequency.
BALANCED INPUT ADJUSTMENT
OFF POSITION: when using Low Level (RCAs) without a Line Driver
(100mV-7.5V)
ON POSITION: when using High Level (speaker) inputs with Xtant High
Level Adapters (HLA) or Low Level (RCAs) with a Line Driver (7.5V-17V)
