6
SB2.5 Recumbent Bike
Handlebars, Pedals & Stabilizer Tubes
2
Hardware Step 2
#32. 5/16” x 3/4”
Button Head Socket
Bolt (8 pcs)
#33. 5/16”
Flat Washer (4 pcs)
#35. 5/16”
Split Washer (4 pcs)

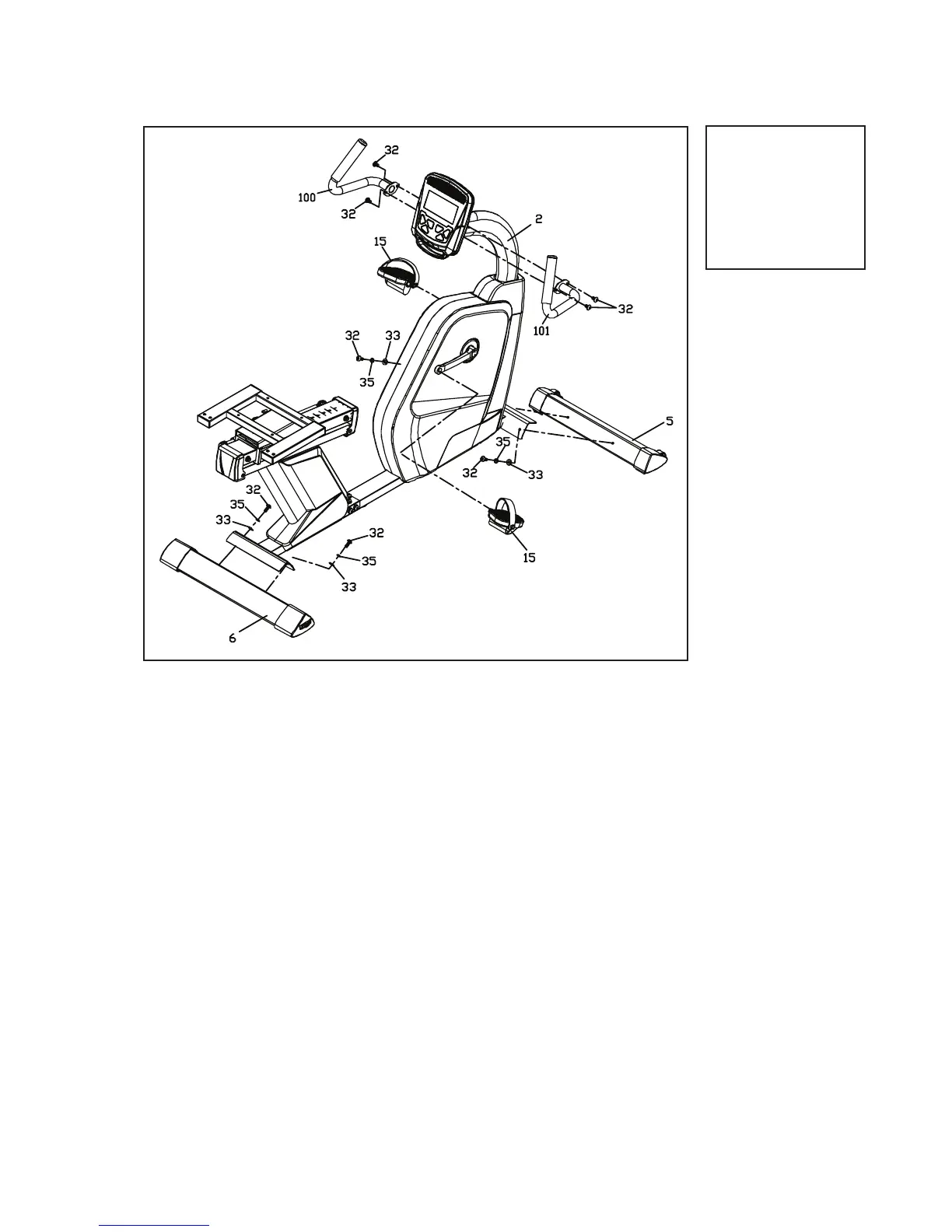

1. Use the M5 Allen Wrench (68) to secure the front and rear stabilizers (5
& 6) on the mounting brackets with four Button Head Socket Bolts (32),
four split washers (35), and four at washers (33).
2. Use 14/15mm Wrench (69) to tighten the pedals (15 left and right) to
the crank axle. The left pedal is a reverse thread and will screw in a
counterclockwise direction. The pedals are marked with an R or L on
the end of the threaded pedal axle. Make sure to tighten the pedals
rmly or a clicking noise can occur during pedaling. It may be
necessary to retighten the pedals after use, if clicking occurs.
3. Attach the left and right handles (100, 101) to the Console Mast (2) with
four Button Head Socket Bolts (32) using the Combination M5 Allen
Wrench & Phillips Head Screw Driver (68).
