SB550 Fitness Bike
#70. 5/16” x 18mm
Flat Washer (4 pcs)
#73. 5/16”
Split Washer (4 pcs)
#95. 5/16” x 3/4”
Button Head Socket
Bolt (4 pcs)
#81. M5 x 12mm
Phillips Head Screw
(4 pcs)
4

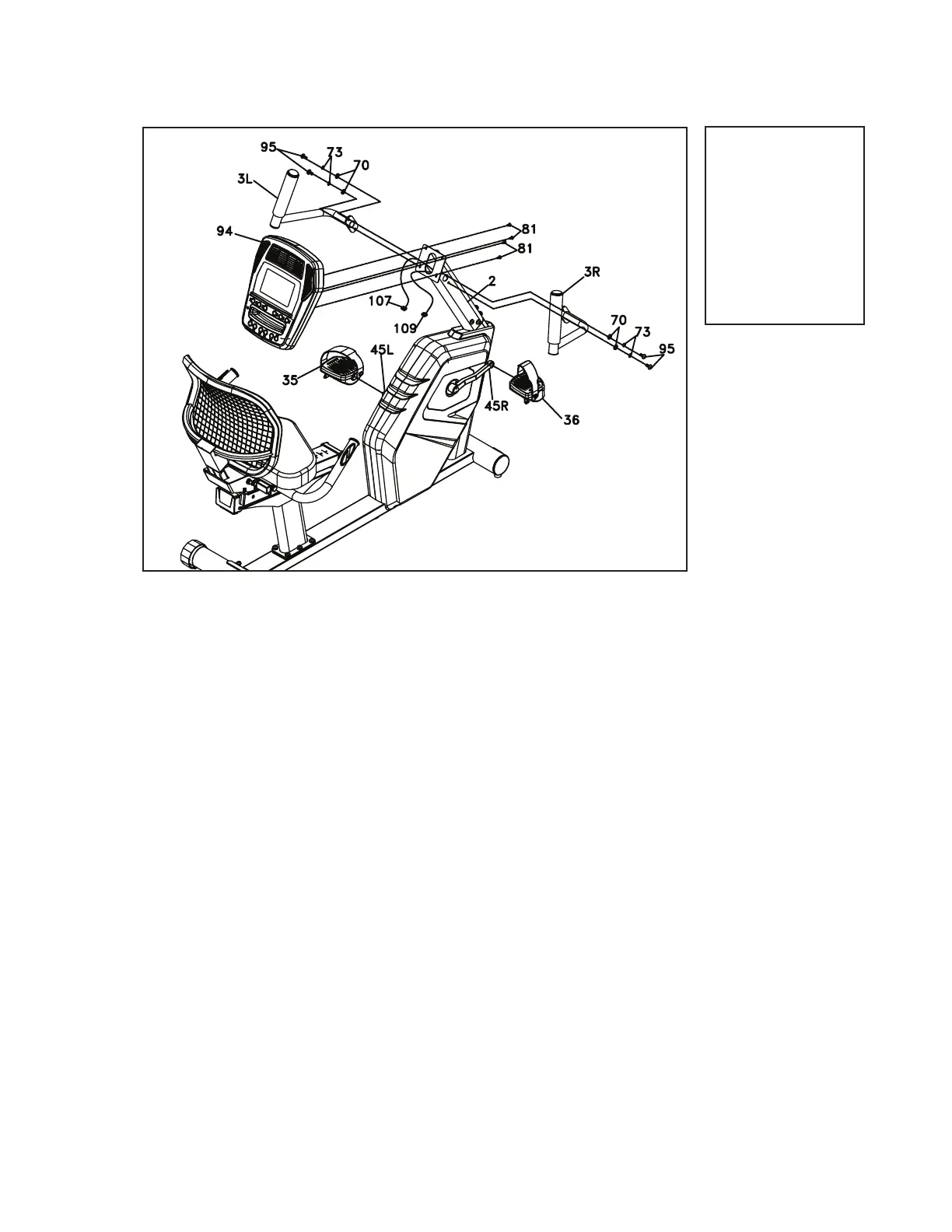

Hardware Step 4
1. Install the Mast Handlebar Assembly (3L,3R) and secure with four
Button Head Socket Bolts (95), Split Washers (73) and Flat Washers
(70) by using the Allen Wrench (106).
2. Connect the two wires (107 & 109) to the mating connectors on the back
of the Console Assembly (94) and secure the console with four Phillips
Head Screws (81) by using Phillips Head Screw Driver (105). Be careful
not to pinch the wires between the console and mounting plate.
3. Install the two pedals onto the crank arms. The left pedal (35) is a
reverse thread so as you turn the pedal bolt into the crank arm turn it
counter-clockwise as if you are loosening it. The right side pedal (36) is a
normal thread so tighten it clockwise. Make sure the pedals are as tight
as you can possibly get them. It may be necessary to re-tighten them
again after a few hours of use.
Console, Handle Bars & Pedals
