SB550 Fitness Bike
9
#70. 5/16” x 18mm
Flat Washer (4 pcs)
#71. 3/8” x 19mm
Flat Washer (6 pcs)
#95. 5/16” x 3/4”
Button Head Socket
Bolt (6 pcs)
#101. 3/8” x 3/4”
Hex Head Bolt (6 pcs)
#102. 5/16” x 19mm
Curved Washer (2 pcs)
3

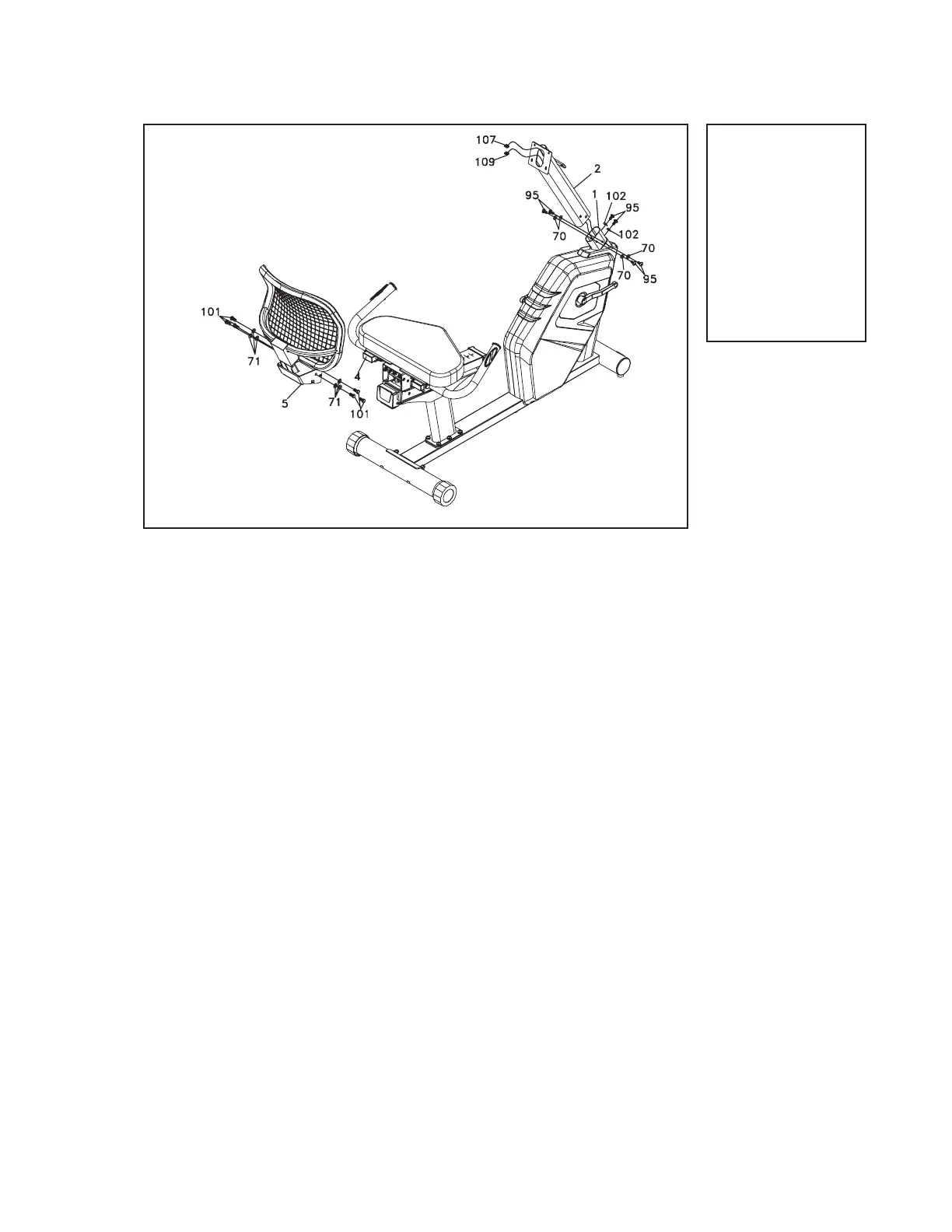

Hardware Step 3
1. Secure the Seat Back Assembly (5) to the Seat Carriage with six Hex
Head Bolts (101) and Flat Washers (71). Make sure these bolts are very
tight.
2. Run the two wires (107 & 109) through the bottom of the Console Mast
and out the hole at the top. Slide the Console Mast into the mating tube;
pull slightly on the two wires while you install the Console Mast so they
do not get pinched. Secure the mast with six Button Head Socket Bolts
(95), four Flat Washers (70) on the side bolts and two Curved Washers
(102) on the two front bolts. Make sure to start all six bolts rst before
tightening all the way.
Console Mast & Seat Back
To Next Page
