Xterra U15 - U15 Assembly Instructions; Front Stabilizer Assembly; Rear Stabilizer Assembly

5
#28 Carriage Bolt M8*72mm (2 pcs)
#40 Flat Washer φ8*16*1.5t (2 pcs)
#49 Cap Nut M8 (2 pcs)
#28 Carriage Bolt M8*72mm (2 pcs)
#40 Flat Washer φ8*16*1.5t (2 pcs)
#49 Cap Nut M8 (2 pcs)
R e ar S t abili z er
U15 Assembly Instructions
1

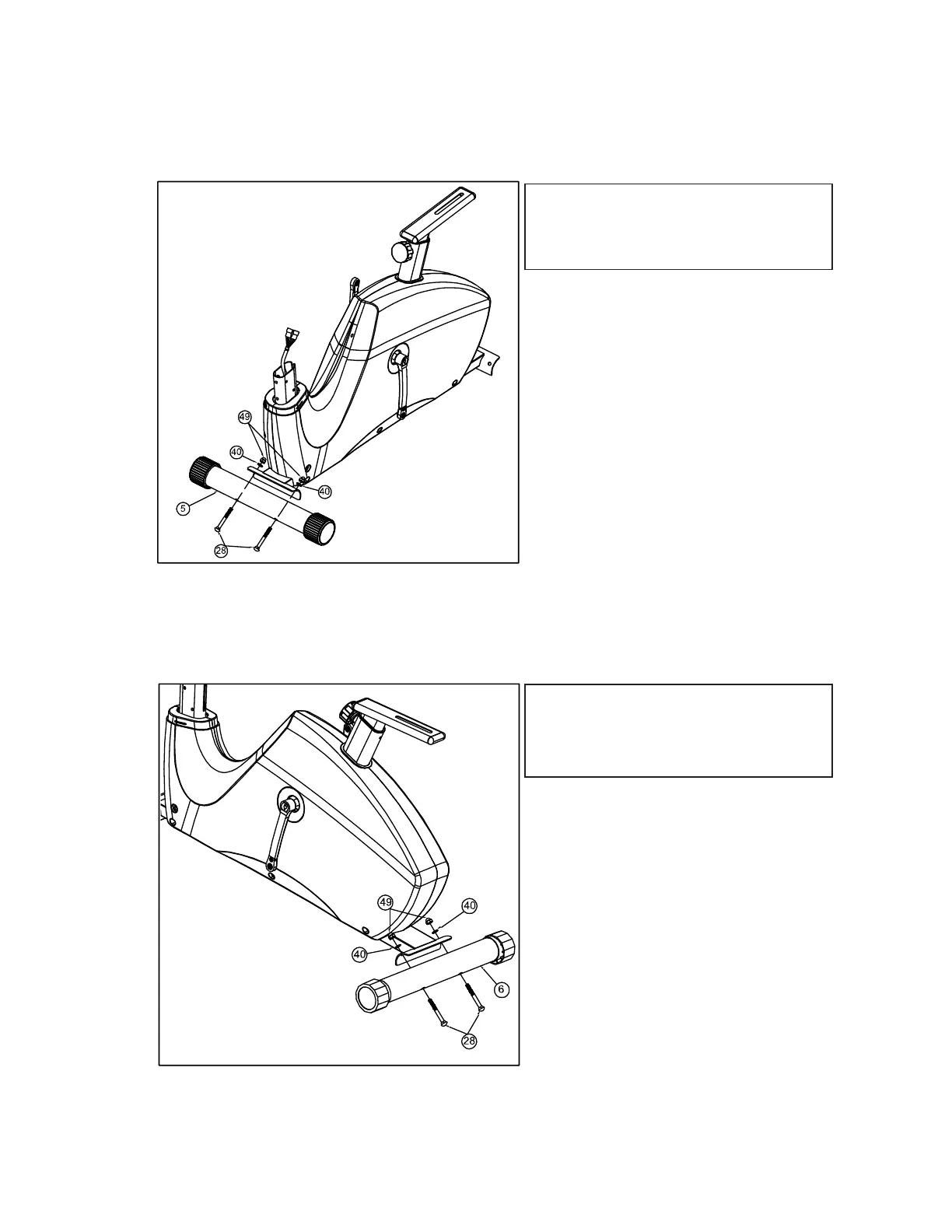

1. Install the Front Stabilizer Tube
(No. 5) onto the Main Frame and
secure using 2 Carriage Bolts (No.
28), 2 Flat Washers (No. 40), and 2
Cup Nuts (No. 49).
2
1. Install the Rear Stabilizer Tube (No.
6) onto the Main Frame and secure
using 2 Carriage Bolts (No. 28), 2
Flat Washers (No. 40), and 2 Cap
Nuts (No. 49).
Hardware Step 1
Fr ont S t abili z er
Hardware Step 2
