Xterra U15 User Manual

8
#17 . Seat Adj. Knob (1 pc)
#27 . Carriage Bolt M10*35mm (1 pc)
#37 . Flat Washer φ10*30*3t (1 pc)
#56-1 . Cap Nut M8*8mm (3 pcs)
#56-2 . Flat Washer φ8*φ19*2.0t (3
pcs)
7
1. Secure the Seat Cushion (No.
56) to the Sliding Seat Mount
(No. 4) using 3 Cap Nut
(No.56-1) and 3 Flat Washer
(No.56-2).
8
1. Secure the Sliding Seat
Mount (No. 4) using the Seat
Adj. Knob (No.17), 1
Carriage Bolt (No.27) and 1
Flat Washer (No.37).
2. Make sure all screws are
secured fasten.
S e a t Cushion
S e a t

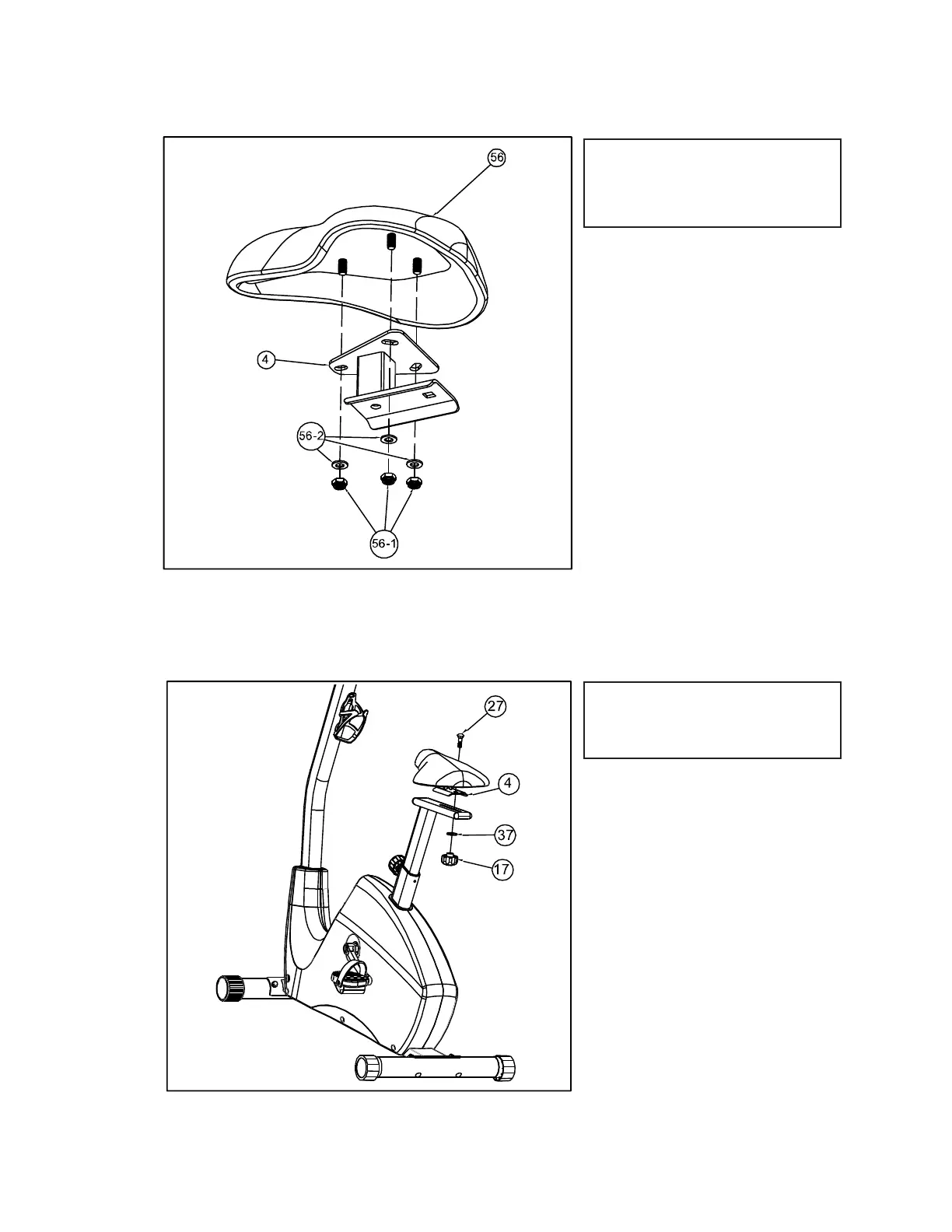

Hardware Step 7
Hardware Step 8
