18. Create a Computer Room Floor Pipe Network ❑
a. Add a VEP-1P detector
• Change Detector Name to Computer Room Detector
b. Add a Simple pipe
• Rename the pipe Computer Room Pipe
• Configure the number of bends before 1st hole to 7
• Click Finish
• Configure the direction of your bends, starting at the top:
R F D L F L B
• Delete two holes after the last Bend 90
• Close the Endcap
• Insert 4 holes between the F & L elbows (set Relative Distance
for each to 1)

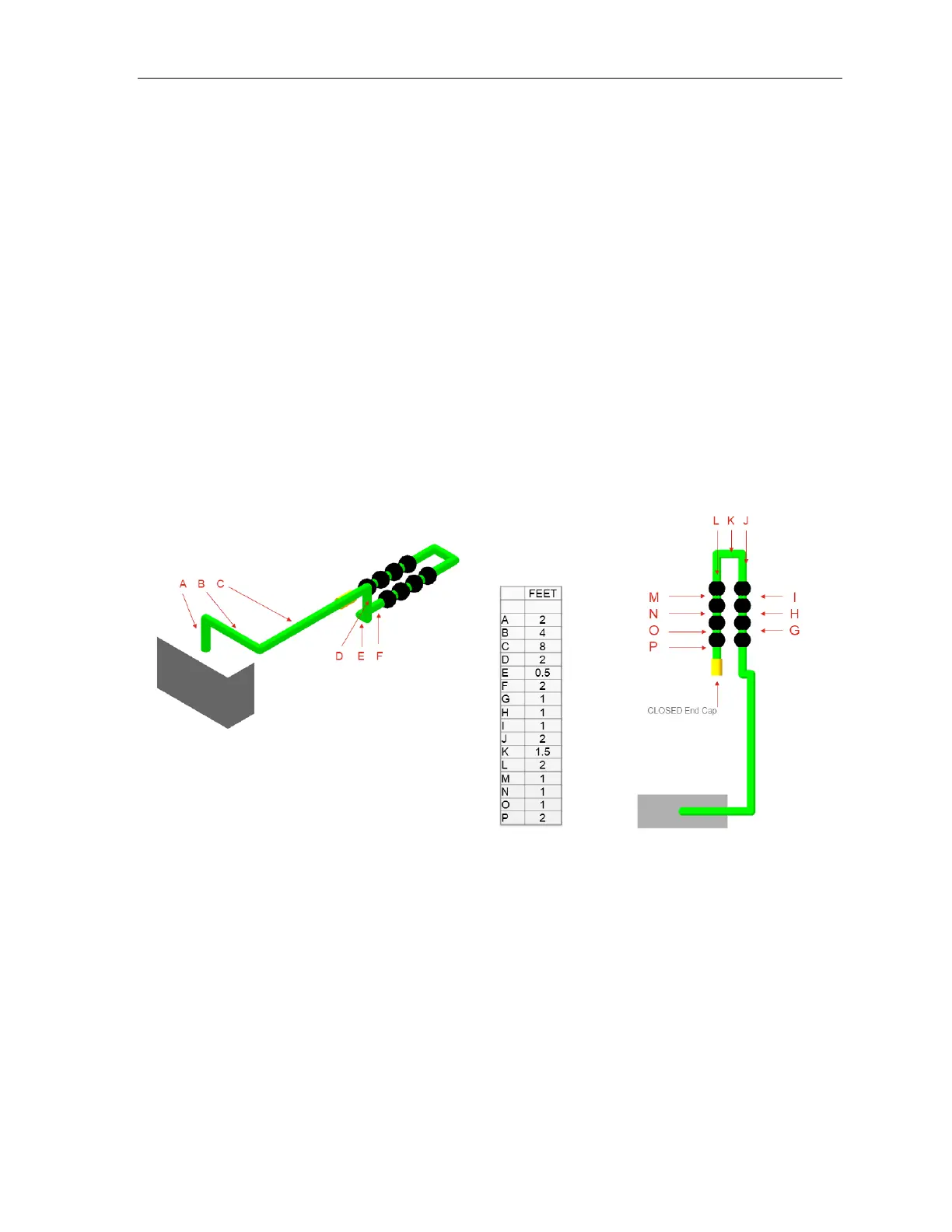

• Set Relative Distance (see drawing)
c. Click Calculate
d. Click Save
