Operation Manual
59
Operation
Operation Manual
59
Quick Attach System
This forklift includes a quick attach system that allows for easy
attachment changes. Perform attachment connection and
removal procedures on level ground.
Warning
Improper connection of an auxiliary
attachment can result in death or serious
injury. Attachments not locked into place
could become unstable and fall on the
operator or other personnel near the forklift,
which could result in death or serious injury.
• Make sure attachment locking devices are always in
place.
• DO NOT operate the forklift until you have positive
indication that the carriage attachment is fully engaged.
Attachment Connection

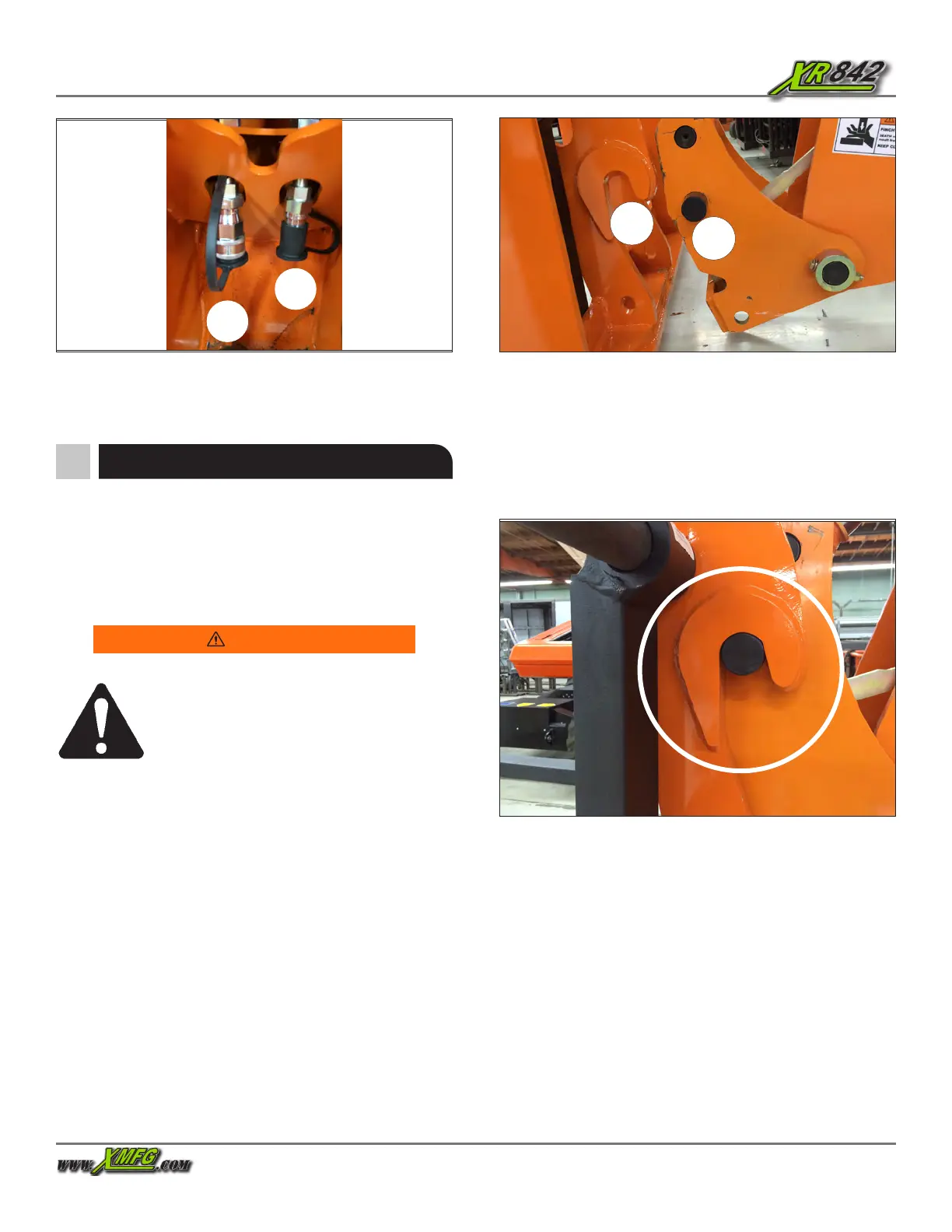

Figure 73. Drive Forklift Forward to Align Pivot Pins (A) with
Attachment Hooks (B)
1. Position the forklift directly behind the attachment.
NOTE: Allow enough distance to extend the boom ap-
proximately 18 to 20 inches.
2. Tilt the quick attach adapter forward.
3. Extend the boom and/or drive the forklift forward until
the pivot pins (A) are below and between the two (2)
attachment hooks (B).
4. Raise the boom until pivot pins (A) have seated fully in at-
tachment hooks (B).
5. Tilt the attachment up slightly. The quick attach adapter
should be tight against the rear of the attachment. Align the
holes between the quick attach adapter and attachment.
Figure 72. Quick Attach Couplers For Hydraulic Systems.
(A) Female Coupler. (B) Male Coupler.
Figure 74. Raise Boom Until Pivot Pins (A) Are Fully Seated
in Attachment Hooks (B)
A
B
A
B
