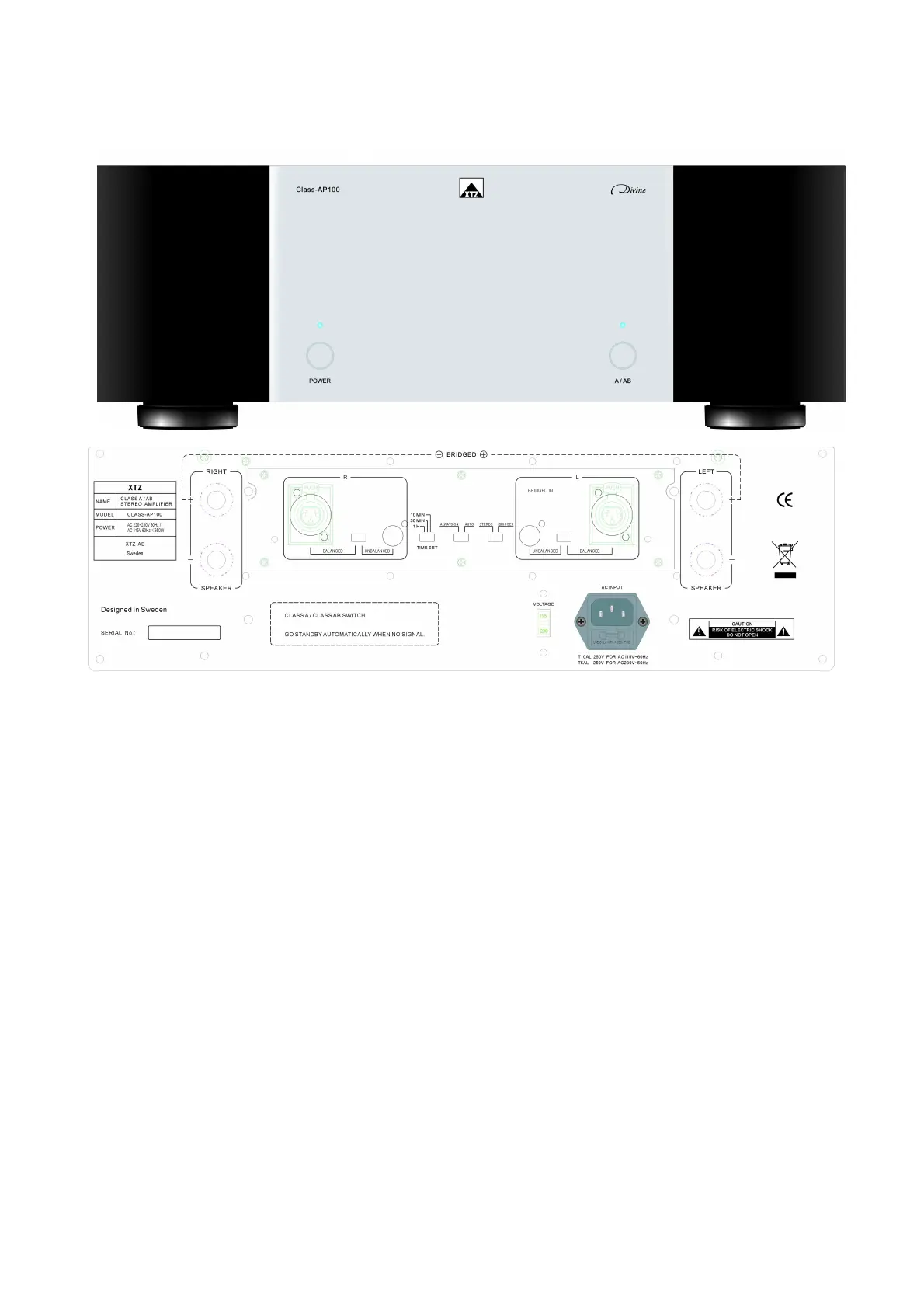

Functional reference
1. POWER ON
2. CLASS A/AB
3. SPEAKER TERMINALS Right
4. SPEAKER TERMINALS Left
5. BALANCED INPUT Right
6. UNBALANCED INPUT Right
7. SWITCH BALANCED/UNBALANDED Right
8. UNBALANCED INPUT Left
9. BALANCED INPUT Left
10. SWITCH BALANCED/UNBALANCED Left
11. TIME SET
12. ALWAYS ON/ AUTO
13. STEREO MODE/BRIDGED MODE
14. VOLTAGE
15. AC INPUT
1
2
3
4
5
6
7
8
9
10
11
12
13
15
14
