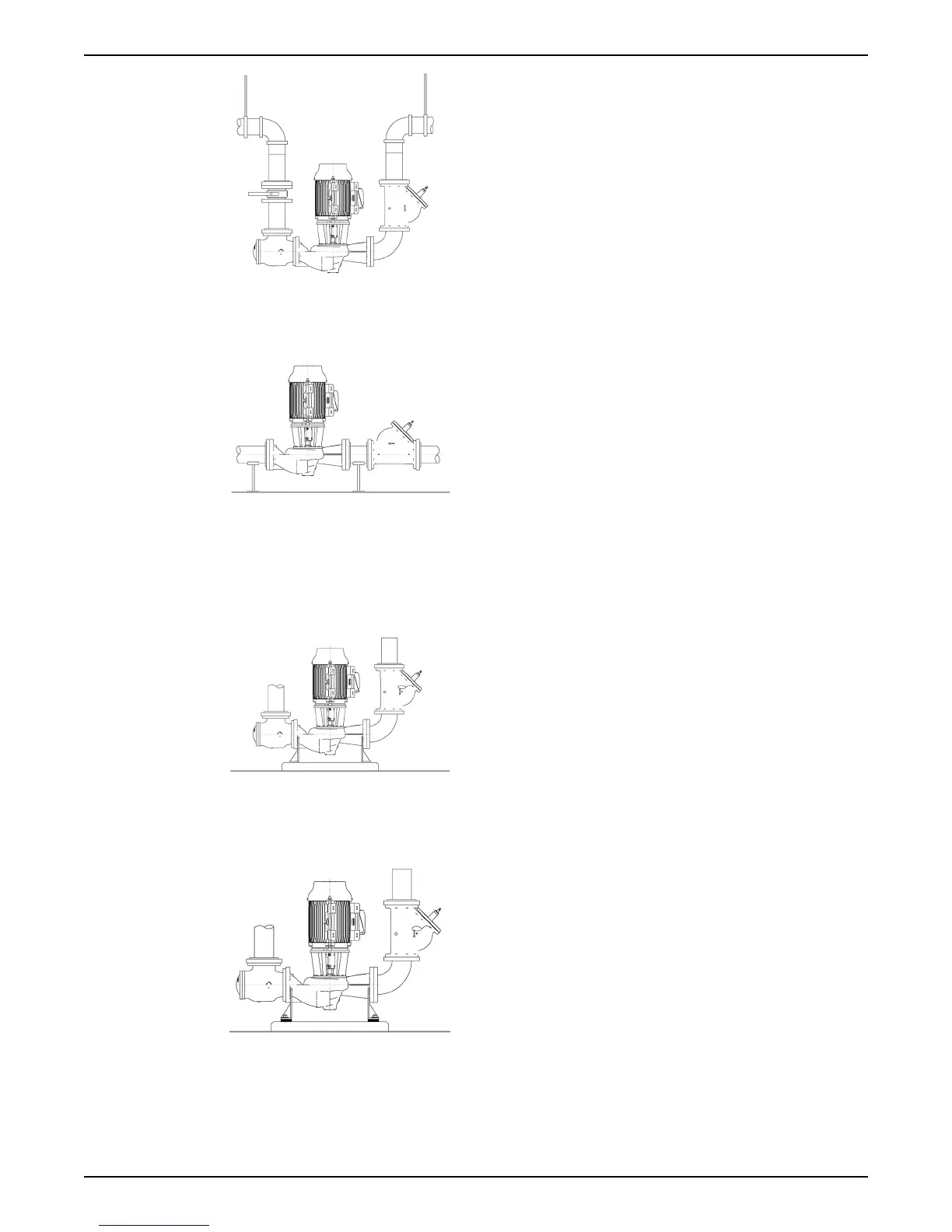

Figure 5
Pumps can be installed in the piping with floor mounted saddles adequate to carry the
loads from the pump and piping.
Figure 6
Optional B&G Flange Supports can be used when rigid pump support to the floor or
isolation base is required. The supports are installed on the back side of the pump flanges
and have tapped holes to accept the flange bolting and have mounting holes in their
bases for anchor bolts. Pipe supports (not shown) are required such that the pump flanges
are not supporting the piping.
Figure 7
Alternately with the optional B&G Flange Supports, insolation pads can be used between
the support and the floor.
Figure 8
e-80SC pumps have a four bolt circle on the bottom of the volute to accept an ANSI/
ASME flange that can be used with a connected pipe as a temporary pump support while
the permanent pump piping or pump supports are being fitted to the pump. This support
4 Installation
Series e-80SC INSTRUCTION MANUAL 13
