Xylem Flygt 3085 - 3-phase star-delta wiring

11

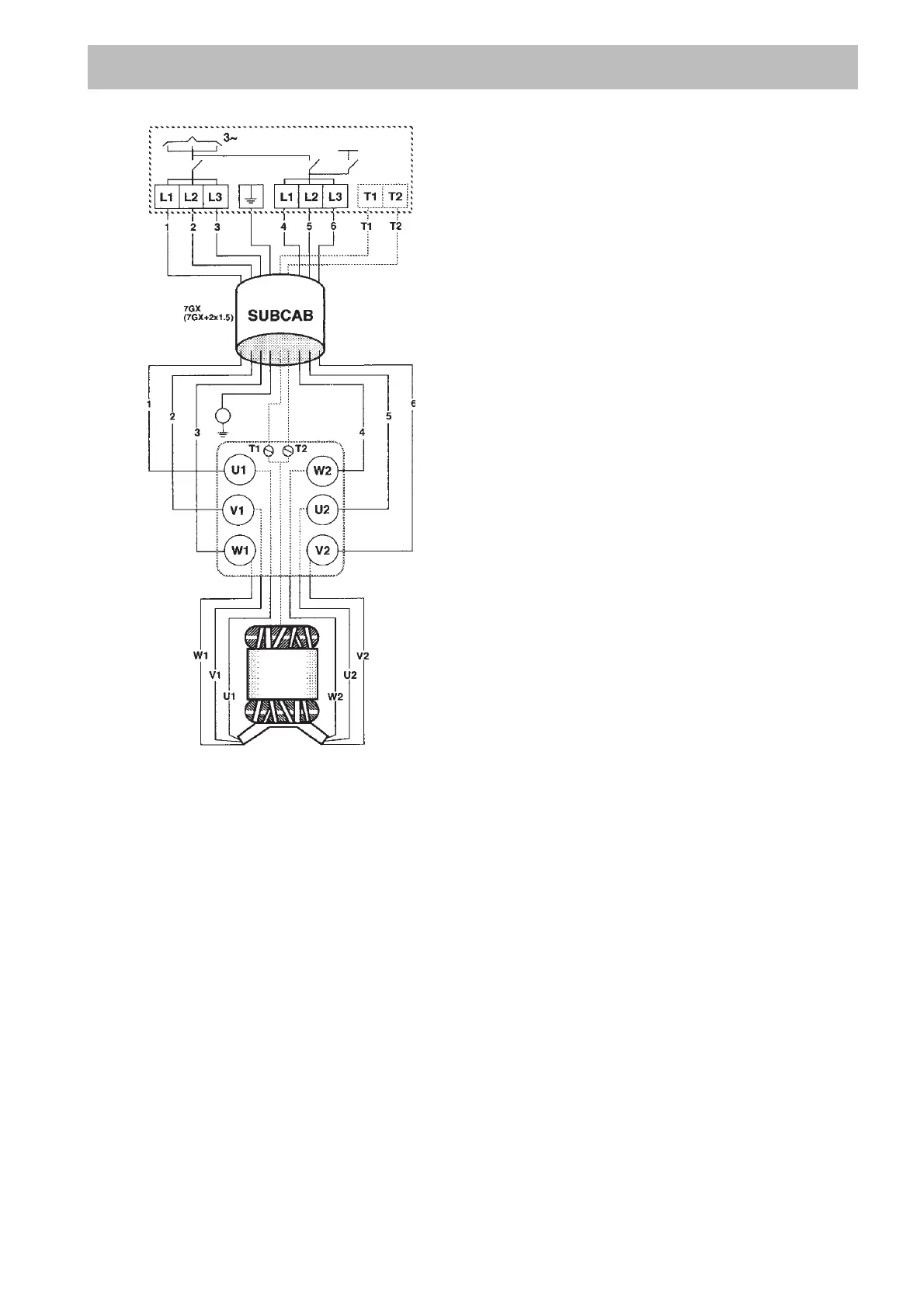

3-phase, star-delta starting
Conductors Connection starter
SUBCAB 7Gx 1 black L1
HCR SO7E6E5-F 7x2.5 2 black L2
3 black L3
4 black L1
5 black L2
6 black L3
yellow/green earth
SUBCAB 7Gx+2x1,5 1 black L1
2 black L2
3 black L3
4 black L1
5 black L2
6 black L3
T1 black T1*
T2 black T2*
yellow/green earth
* Terminal for connection of thermal contacts in the motor and monitoring equipment.
SUBCAB is a registered trademark of ITT Flygt AB for electrical cables.
Stator leads
V2 = blue
W2 = black
U2 = green
U1 = red
V1 = brown
W1 = yellow
CABLE CHART
