Xylem Flygt 3085 - Care and Maintenance; Safety and cleaning precautions; Regular inspection guidelines; Hot water application maintenance

16

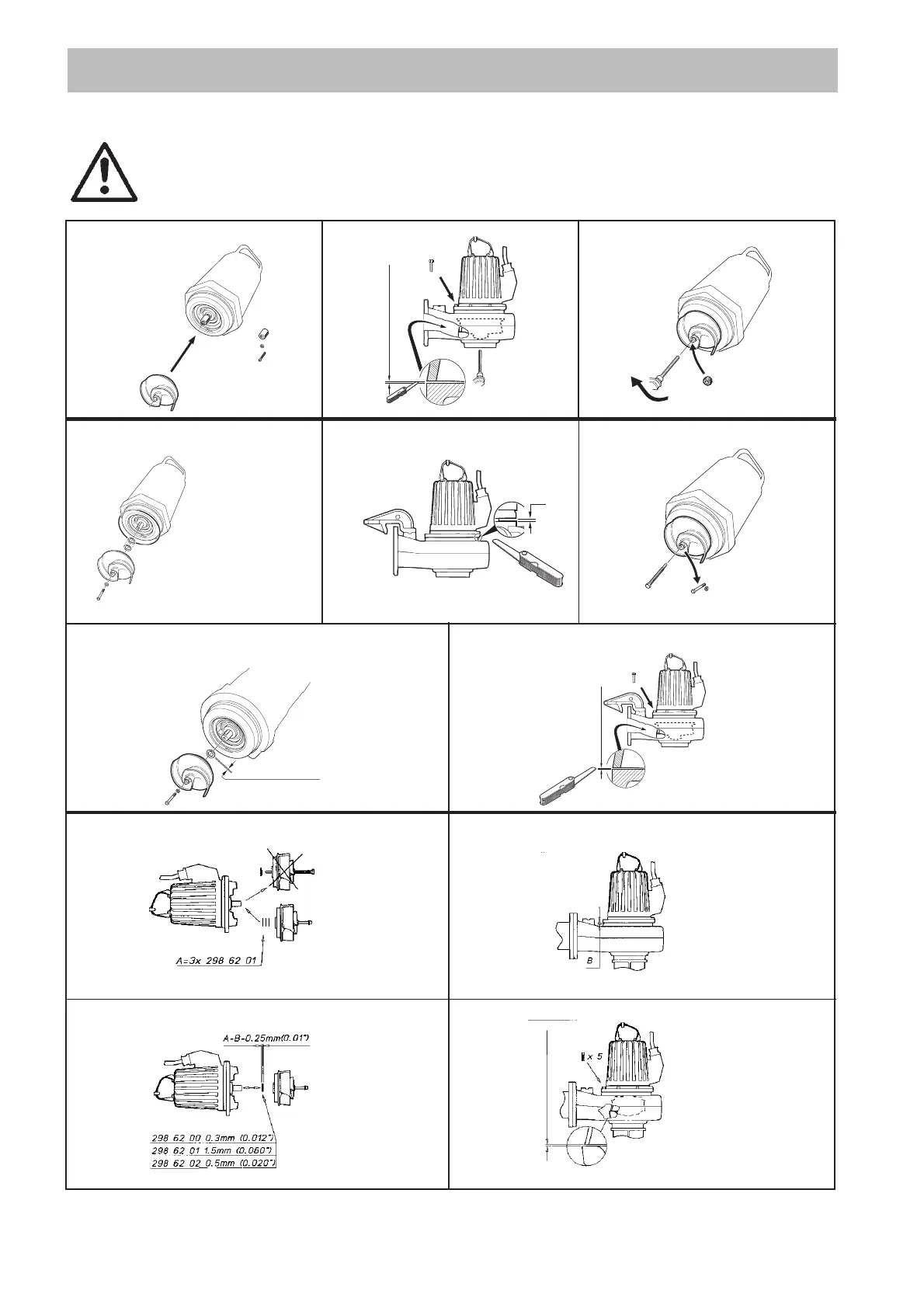

N-type impeller - replacing and setting clearance
3085=0,1 - 0,6 mm (0,004 - 0,024") 3102=0,2 - 0,8 mm (0,008 - 0,032")
x 4
NP/NS/NL3127
1.
3.2.
4.
5.
1. 2. 3.
A =
B
= A - B - C
0,2 - 0,8 mm (0,008 - 0,032")
x
5
C
=
(3x) 0,3 mm (0,012”) 298 62 00
(1x) 1,5 mm (0,060”) 298 62 01
(2x) 0,5 mm (0,020”) 298 62 02
3x 0,3 + 1x 1,5 +
2x 0,5= 2,9 mm
Warning! The impellers may have very sharp edges.
Use protective gloves.
CARE AND MAINTENANCE
N3085/3102
NT3127
1.
2.
3. 4.
0,2 - 0,8 mm (0,008 - 0,032")
