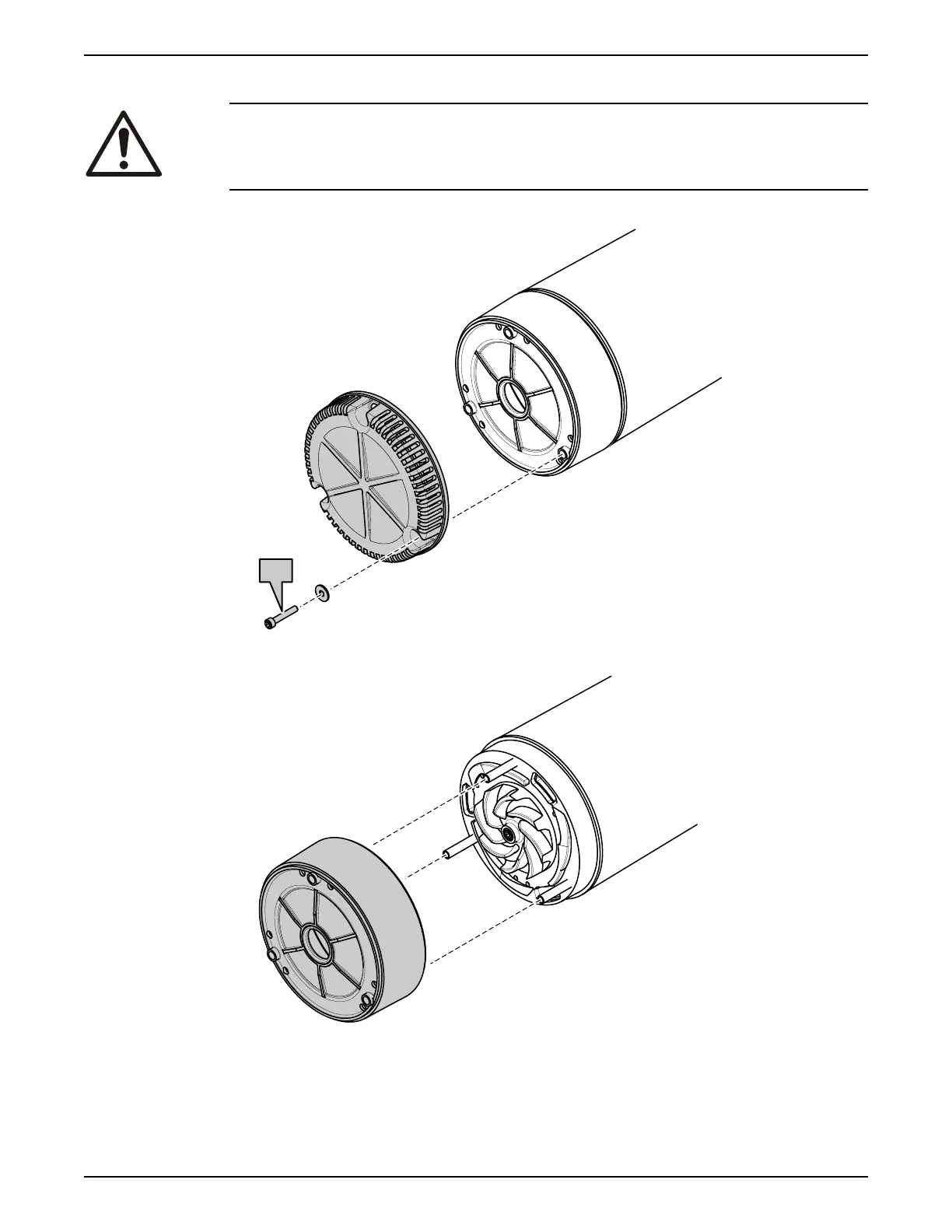

6.4.1 Remove the impeller, drainage version
CAUTION: Cutting Hazard
Worn parts can have sharp edges. Wear protective clothing.
1.
Remove the strainer.
WS002031A
3x
2.
Remove the diffuser.
WS002032A
3.
Remove the impeller:
a)
Remove the impeller screw and washer.
b)
Pull off the impeller.
6 Maintenance
2008 Ready 8, 8S Installation, Operation, and Maintenance
23
24
26
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction and Safety
5
Introduction
5
Safety Terminology and Symbols
5
User Safety
6
Special Hazards
6
Protecting the Environment
7
Spare Parts
7
Warranty
7
2 Transportation and Storage
8
Inspect the Delivery
8
Inspect the Package
8
Inspect the Unit
8
Transportation Guidelines
8
Lifting
8
Temperature Ranges for Transportation, Handling and Storage
9
Storage Guidelines
9
3 Product Description
10
Products Included
10
Pump Design
10
Monitoring Equipment
10
Level Regulators
10
The Data Plate
11
Product Denomination
12
4 Installation
13
Install the Pump
13
Install with S-Installation
14
Make the Electrical Connections
15
Connect the Motor Cable to the Pump
17
Cable Charts
18
Check the Impeller Rotation
19
5 Operation
20
Precautions
20
Start the Pump
20
Clean the Pump
21
6 Maintenance
22
Torque Values
23
Service
23
Change the Oil
23
Replace the Impeller
24
Remove the Impeller, Drainage Version
25
Remove the Impeller, Sludge Version
26
Install the Impeller, Drainage Version
27
Install the Impeller, Sludge Version
28
Replace the Motor Cable
30
Remove the Motor Cable
30
Install the Motor Cable
31
7 Troubleshooting
33
The Pump Does Not Start
33
The Pump Does Not Stop When a Level Sensor Is Used
34
The Pump Starts-Stops-Starts in Rapid Sequence
35
The Pump Runs but the Motor Protection Trips
35
The Pump Delivers too Little or no Water
36
8 Technical Reference
38
Application Limits
38
Motor Data
38
Specific Motor Data: Ready 8
38
Specific Motor Data: Ready 8S
39
Dimensions and Weights
40
Performance Curves
41
