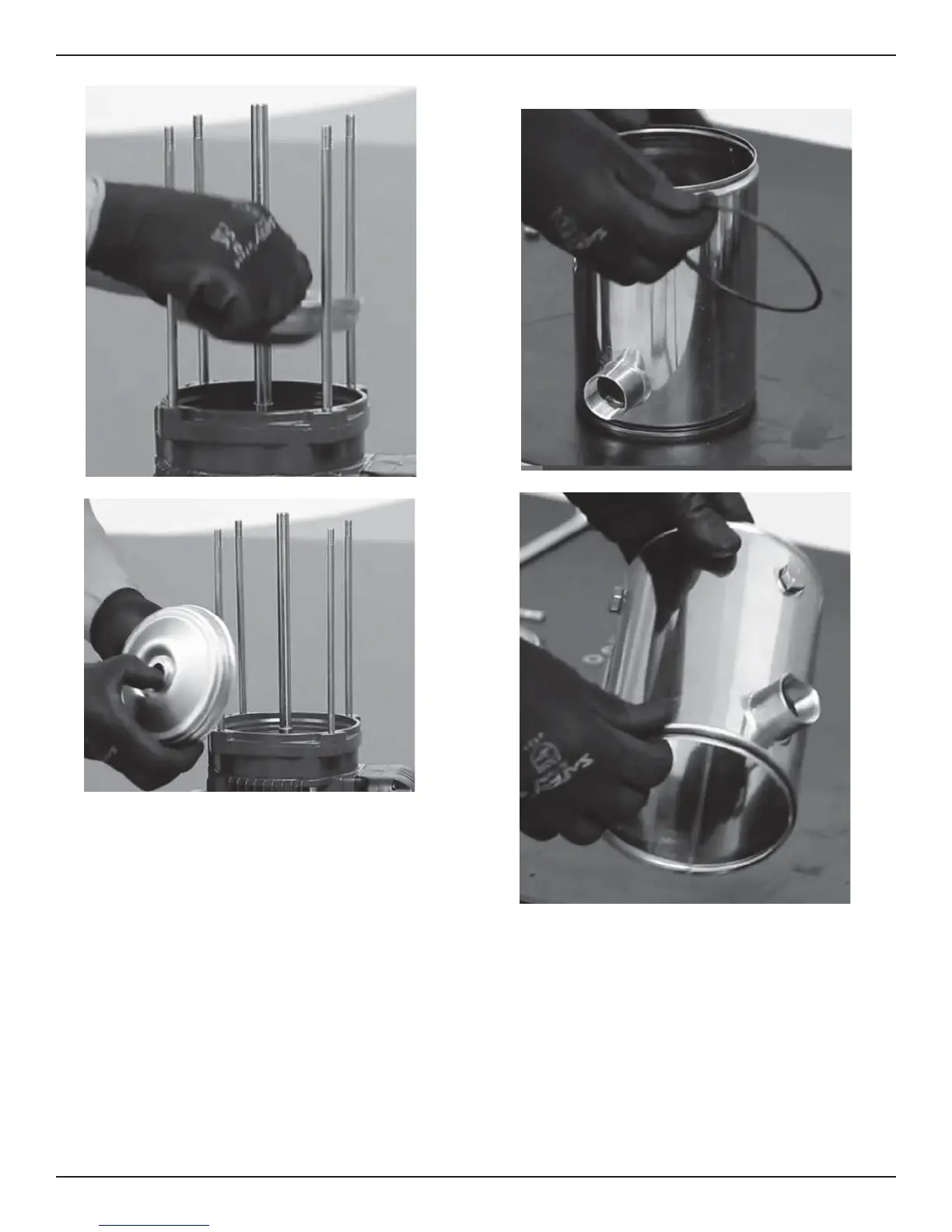

19. Remove seal housing.
20. Press out stationary seal from seal housing.
6.2.2 Preassembly
1. Remove sleeve O-ring on suction end (Sleeve design).
2. Remove sleeve O-ring on motor end (Sleeve design).
Note: Properly dispose of sleeve O-rings and mechanical seal
parts. Do not reuse.
3. Install new sleeve O-ring on suction end (Sleeve design).
4. Install new sleeve O-ring on motor end (Sleeve design).
6.2.3 Reassembly
1. Inspect and clean the inside the pump casing and inside bore of
seal housing removing any debris.
2. Lubricate ID of seal housing and ID of seal with water or P-80.
3. Remove new rotating and stationary seal elements from packag-
ing, inspect for damage and clean with water.
6 Maintenance
Model e-HM Installation, Operation, and Maintenance Manual 9
