c) Remove bearing.
d) Repeat a through c for all intermediate stages.

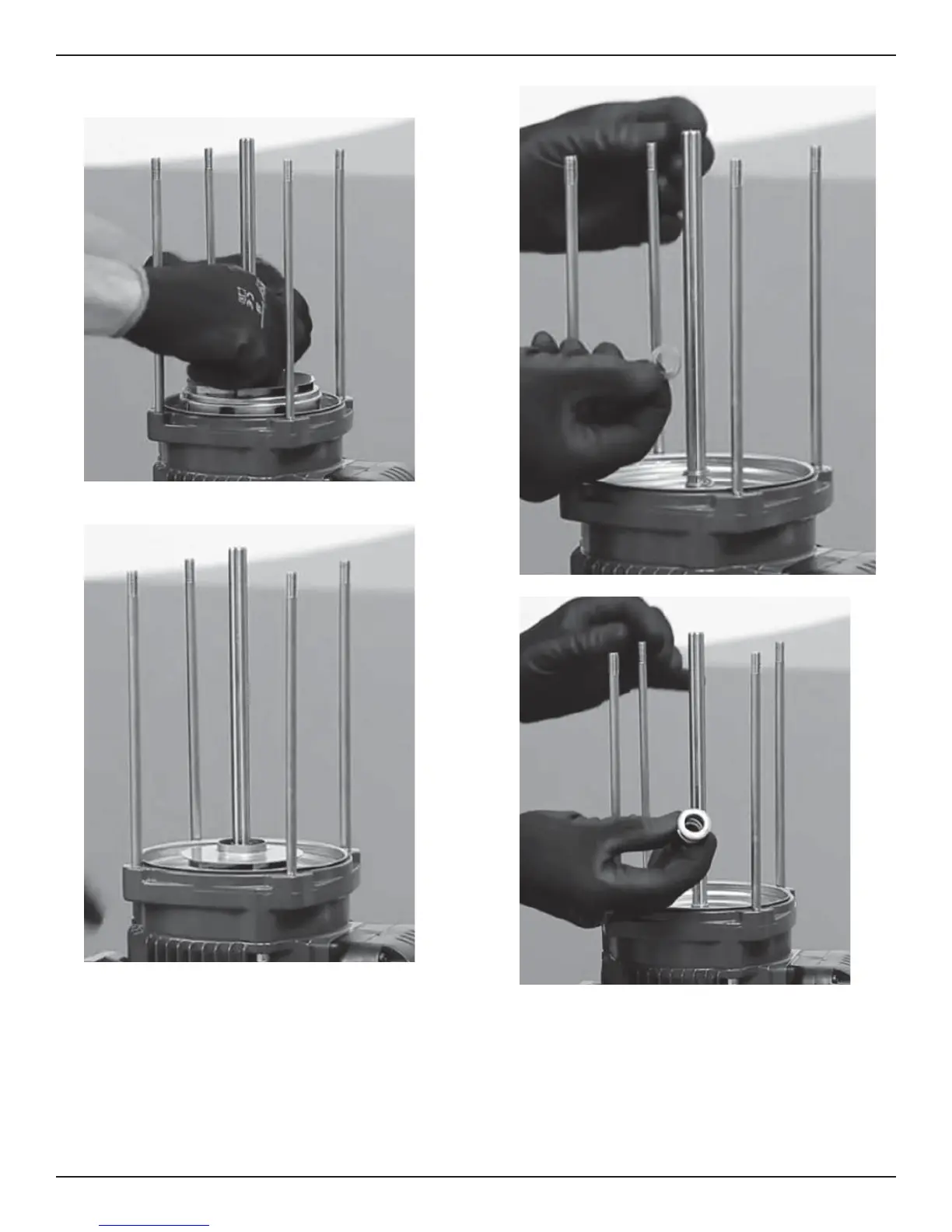

14. Remove last stage diffuser.
15. Remove impeller spacer.
16. Remove impeller.
17. Remove seal spacer.
18. Remove rotating seal.
6 Maintenance
8 Model e-HM Installation, Operation, and Maintenance Manual
