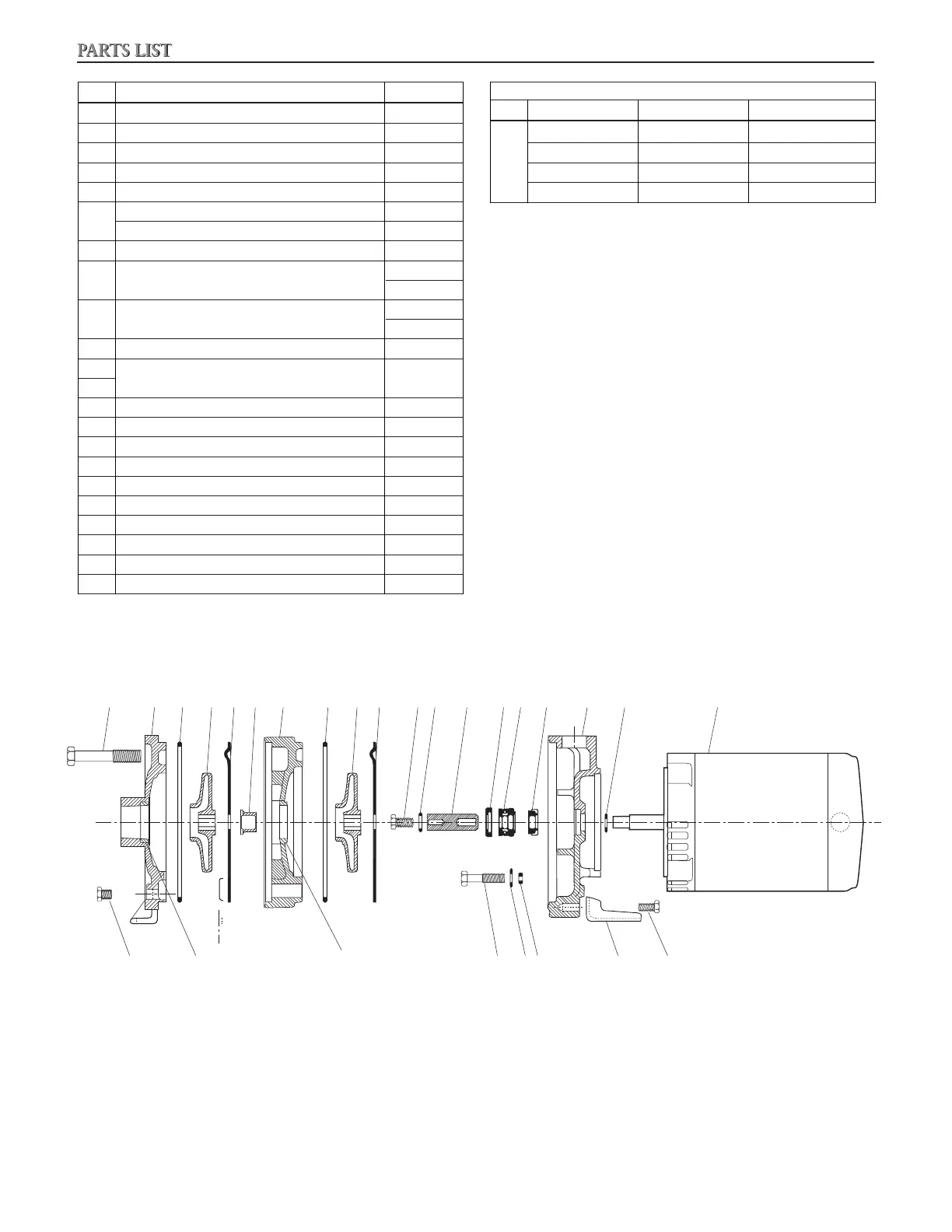

Xylem Goulds HSC20 - Parts List and Diagram; Component Identification; Exploded Assembly Diagram

6
Item Part Name Quantity
1 Pipe Plug ¼" NPT 3
2 Bolt – casing to adapter, 2 stage 4
2 Bolt – casing to adapter, 3 stage 4
3 Casing 1
4 O-Ring – casing and intermediate stage 1 per stage
5
Impeller – ¾, 1 and 1½ HP 2
Impeller – 2 HP 3
6 Coverplate (1 per impeller)
7 Sleeve
(1 – 2 stage)
(2 – 3 stage)
8 Intermediate Stage
(1 – 2 stage)
(2 – 3 stage)
9 Impeller Bolt 1
9, 10,
Shaft Extension Assembly 1
11, 12
10 Washer – impeller (1) and adapter (4) 5
12 Seal Retainer 1
13, 14 Shaft Seal Assembly 1
15 Motor Adapter 1
16 Bolt – adapter to motor 4
17 O-Ring – motor adapter bolts 4
18 Foot 1
19 Bolt – foot to adapter 1
21 Wear Ring 1 per impeller
22 Deflector 1
Motor Codes
Item HP Model Order No.
¾ HSC07 J05853
20
1 HSC10 J06853
1½ HSC15 J07858
2 HSC20 J08854
2 8 9 10 11 12 13 14 15 22 20
1 21 16 10 17 18 19
3 4 5 6 7
21
4 5 6
PARTS LIST
