4 Dimensions and Weights
HV 2.1/2.2/3.2/3.3/3.4 f
Type Weight HV +
WM-Kit
[kg] [kg]
HV 2.1f
HV 2.2f
6,80
HV 3.2f
HV 3.3f
HV 3.4f
5,80
8,40

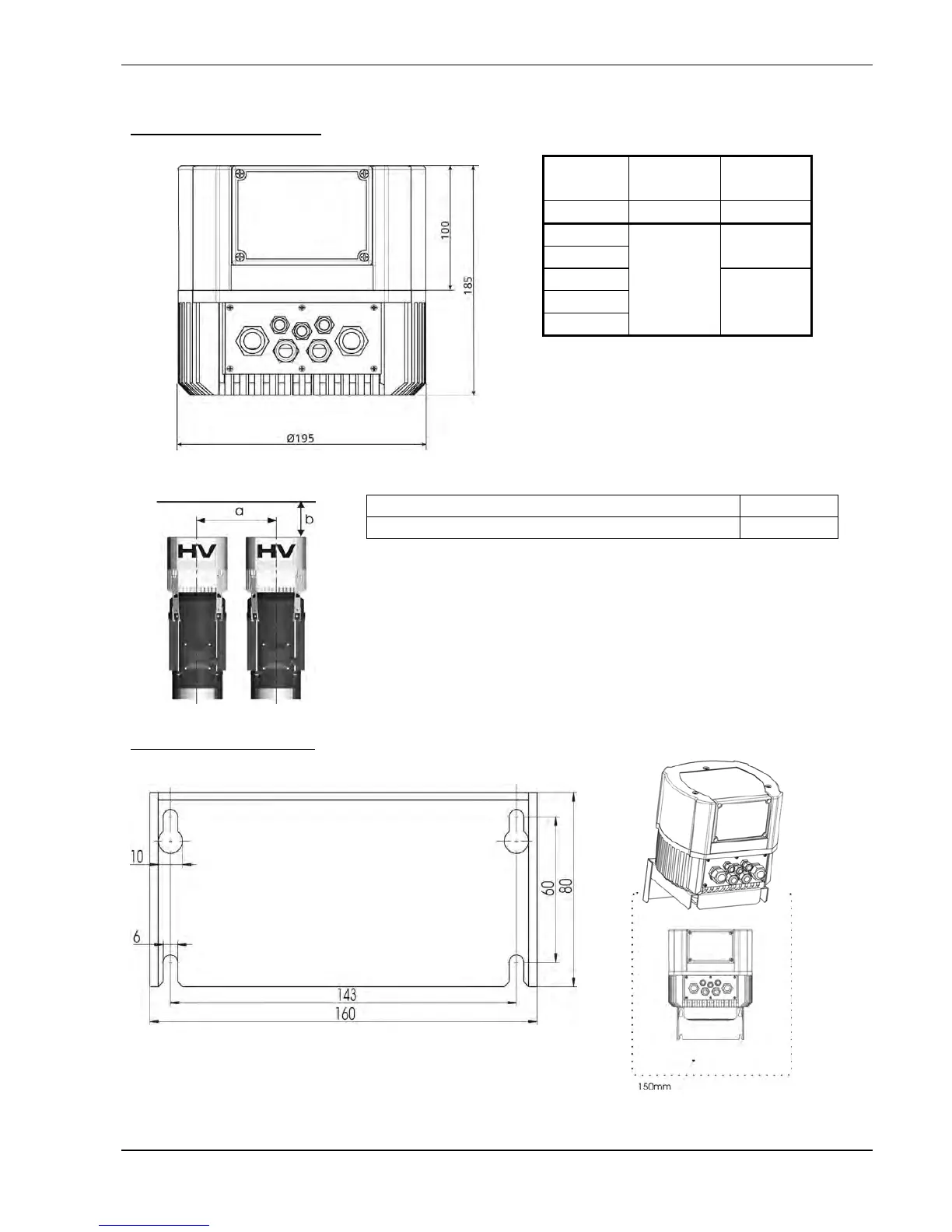

All dimensions in millimetres! Drawings are not in scale!
a … centre-distance between the HYDROVAR 300 [mm]
b … expansion space for maintenance 120 [mm]
Wall-mounting version:
high: 265 [mm] width: 195 [mm] depth: 195 [mm]
Mounting space around the HYDROVAR:
150 [mm]
