Yaesu FT-857D Technical Supplement

102
CONNECTOR Unit

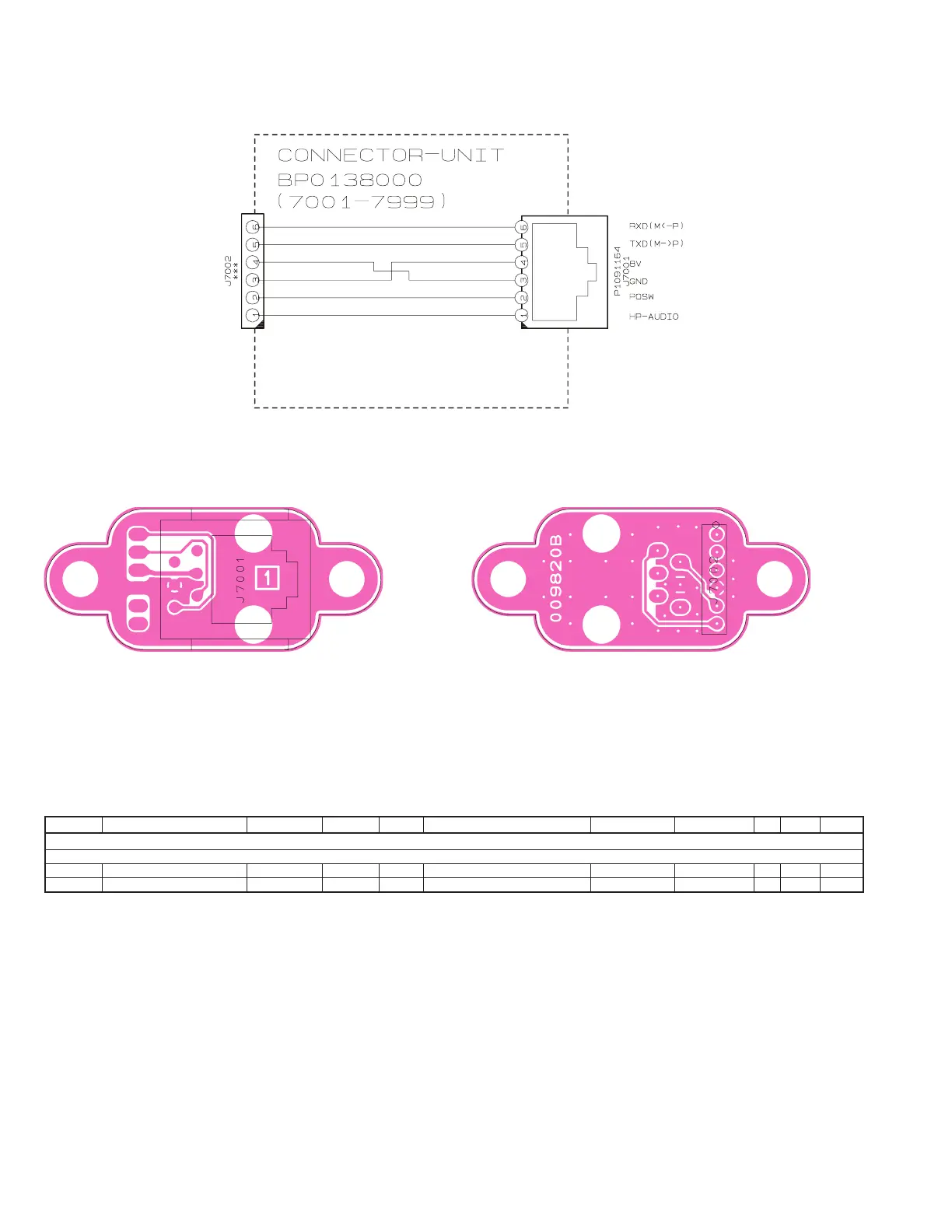

Circuit Diagram
Parts Layout
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE LAY ADR
PCB with Components CB2338001
Printed Circuit Board AH007M000 FR009820B 1-
J 7001 CONNECTOR HJC0278-010022 P1091164 1-
J 7002 WIRE ASSY AH007M T9207023 1-
Side BSide A

Yaesu FT-857D Specifications

General

Modes	SSB, CW, AM, FM, WFM
Impedance	50 Ohms, unbalanced
Supply Voltage	13.8 V DC ±15%
Frequency Range	420-470 MHz
Power Output	100 W (HF/50 MHz), 50 W (144 MHz), 20 W (430 MHz)
Current Consumption	22 A (maximum)
Dimensions	155 x 52 x 233 mm (6.1" x 2.0" x 9.2")
Weight	2.1 kg
Channels	200
Receiver Sensitivity	0.2 μV (SSB/CW)
