Yakima FullBack - INSTALLATION STEPS; Initial Setup and Vehicle Preparation

3
1035059C-2/42
1
2

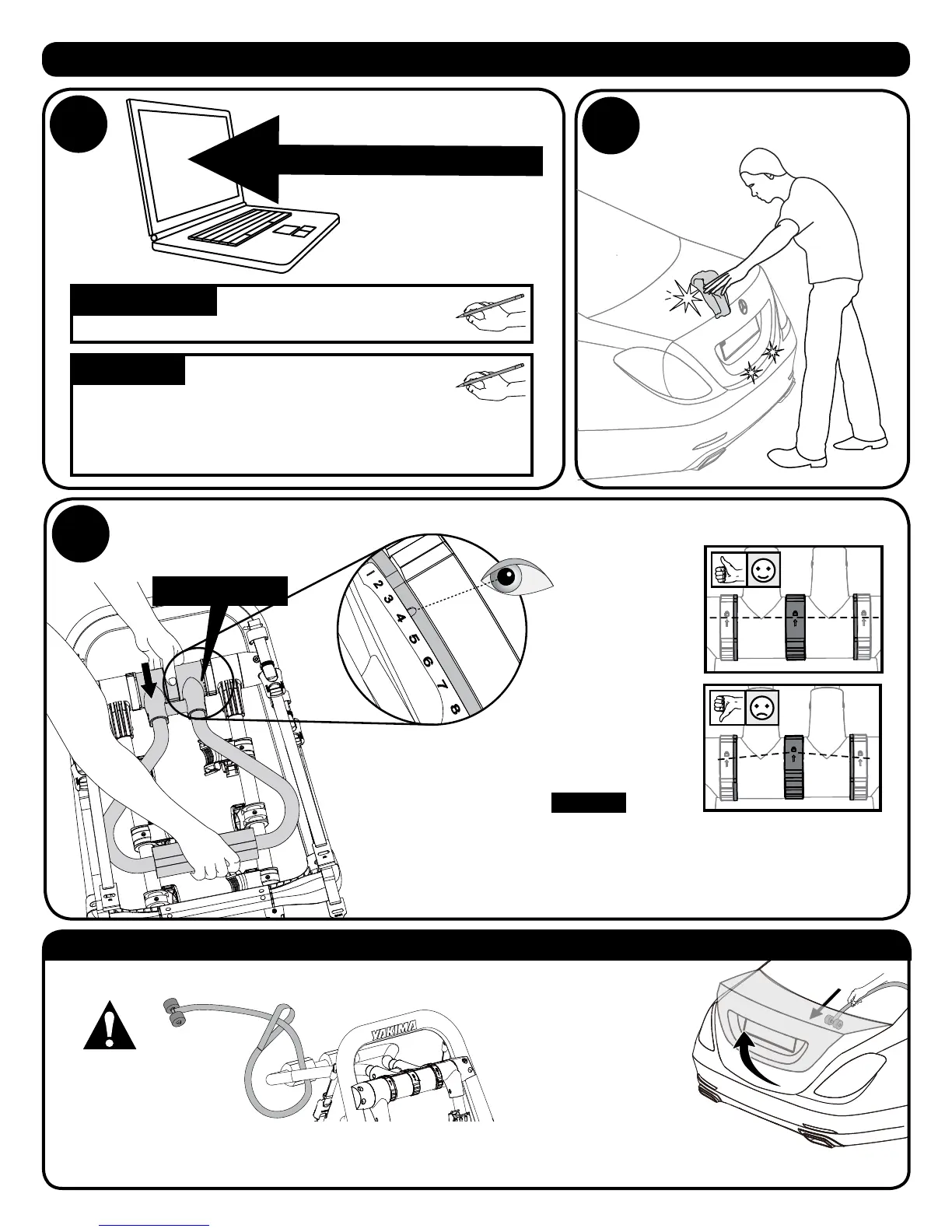

INSTALLATION
HUB SETTING
Clean the vehicle
FIT NOTES
HUB SETTING
• Rotate the center dial toward the
unlock icon and raise the upper
frame arm.
• Set its position to the
HUB SETTING
you
determined in step 1.
• Ensure that the center dial returns to
the aligned position.
• Ensure that the upper frame arm is
locked into the correct position.
OPTIONAL Install trunk security
strap.
Open trunk or hatch.
Insert anchor end of
trunk security strap
through opening
between trunk or hatch
and the vehicle. Be sure
strap is between the
hinges of trunk or hatch.
Close the trunk or hatch.
Wicking of
moisture
into the
vehicle may
occur in wet
conditions.
Thread strap end of trunk security strap
around frame, and insert anchor end of trunk
security strap through loop as shown.
Set the hub
