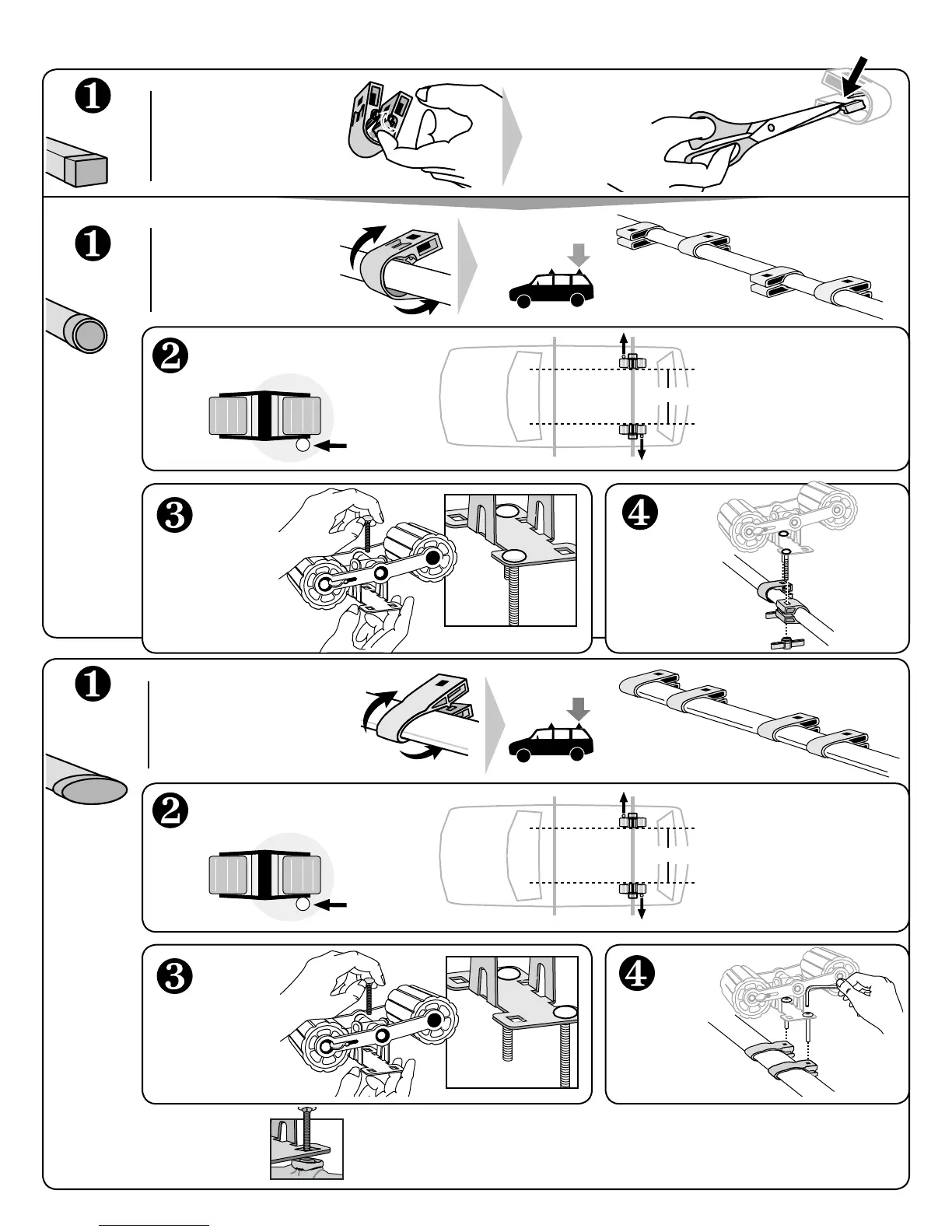

Yakima HullyRollers - Crossbar Compatibility and Installation; Square Crossbar Installation; Round Crossbar Installation; Factory Bar Installation

15" / 38cm
15" / 38cm
1033424C-2/15
Position roller brake
tabs outboard.
ROLLER DISTANCE:
15”(38 cm) is an average
distance and will need
to be adjusted to your
boat‘s hull.
Use hex
wrench
to tighten
COMPLETELY.
Insert bolts
from above,
2 per roller.
BRAKE TAB
Position roller brake
tabs outboard.
ROLLER DISTANCE:
15”(38 cm) is an average
distance and will need
to be adjusted to your
boat‘s hull.
Attach hex
keys and
tighten
COMPLETELY.
Insert bolts
from above,
2 per roller.
BRAKE TAB
Remove the
tabs with
scissors or
pliers.
Loosen the tabs in the
SnapArounds by bending
them repeatedly.
DO YOU HAVE - SQUARE - ROUND - OR FACTORY CROSSBARS?
FACTORY
BARS
Attach four MightyMounts
to the REAR crossbar
(2 per roller).
Follow the Universal MightyMount
instructions and refer to this instruction for
correct installation.
UNIVERSAL
MIGHTYMOUNT
#03590
Attach SnapArounds
to REAR crossbar in
opposite direction as
shown (2 per roller).
If your MightyMounts require
bar caps, install them now.
ROUND
(SQUARE continued)
SQUARE
SQUARE BARS ONLY
