Yakima KingPin 4 - Page 2

1033601B-2/15
FOR 1-1/4" HITCHES ONLY.
REMOVE 2" ADAPTER.
PULL OUT THE PIN AND
WIRE-LOCK FROM THE
HITCH PLATE.

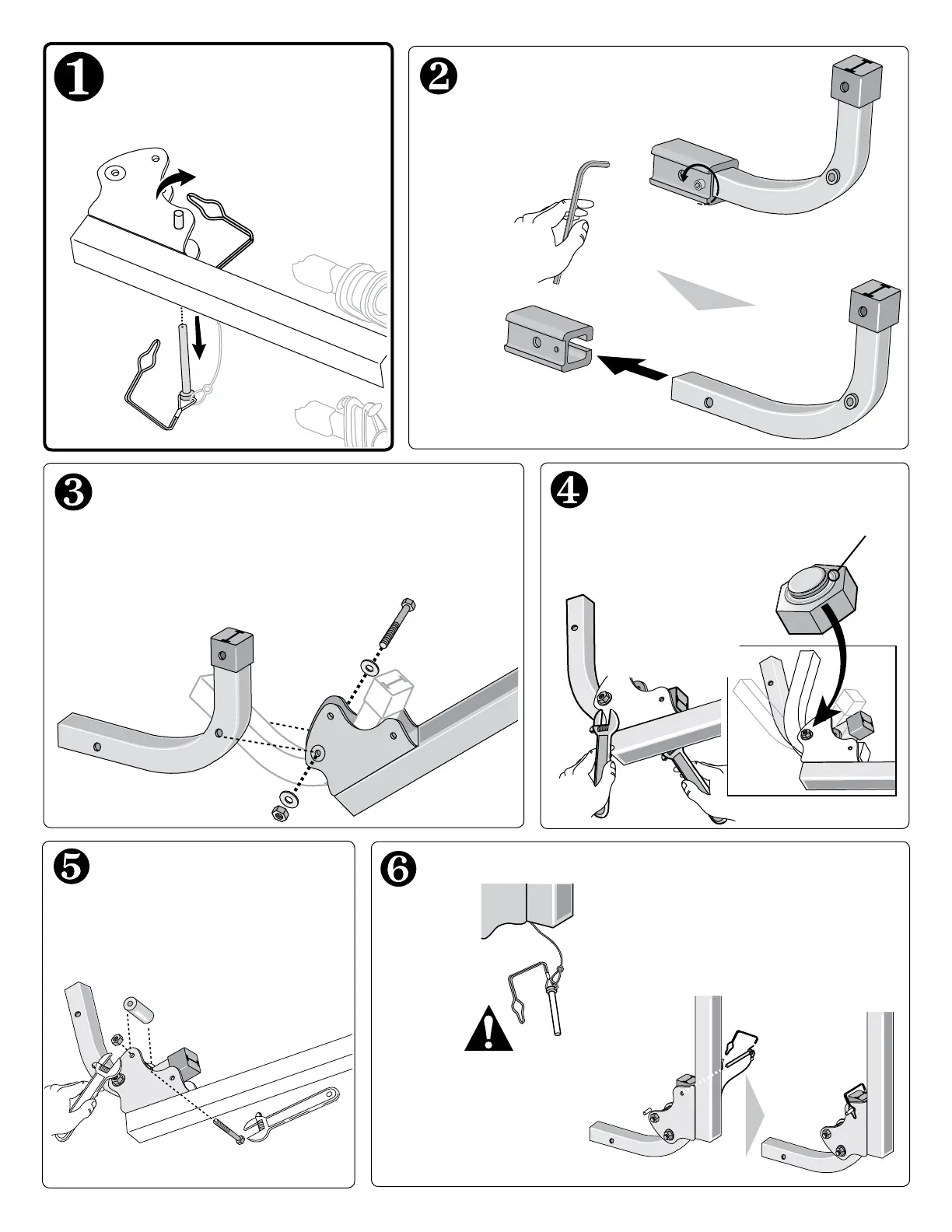

INSTALL TONGUE.
Push the tongue into the hitch
plate, aligning the holes.
Install safety pIn and wIre-lock.


REPLACE
WIRE-LOCK.
Safety pin and wire-lock
must be in place when
bikes are loaded.
Pin is only removed for
access to vehicle.
TIGHTEN with 9/16" wrenches.
attach the stop bolt
and bolt sleeve.


wrenches.
1-1/2 to 2 threads
should be visible
above the nyloc
portion of the nut.
NYLOC



hex bolts and a
flat washer.


a nut.
