Yakima LockNLoad Series - Place Track Back into Roof Channel; Insert Nut Plates; End Cap Fitment

28-13-011-Rev4 7/17

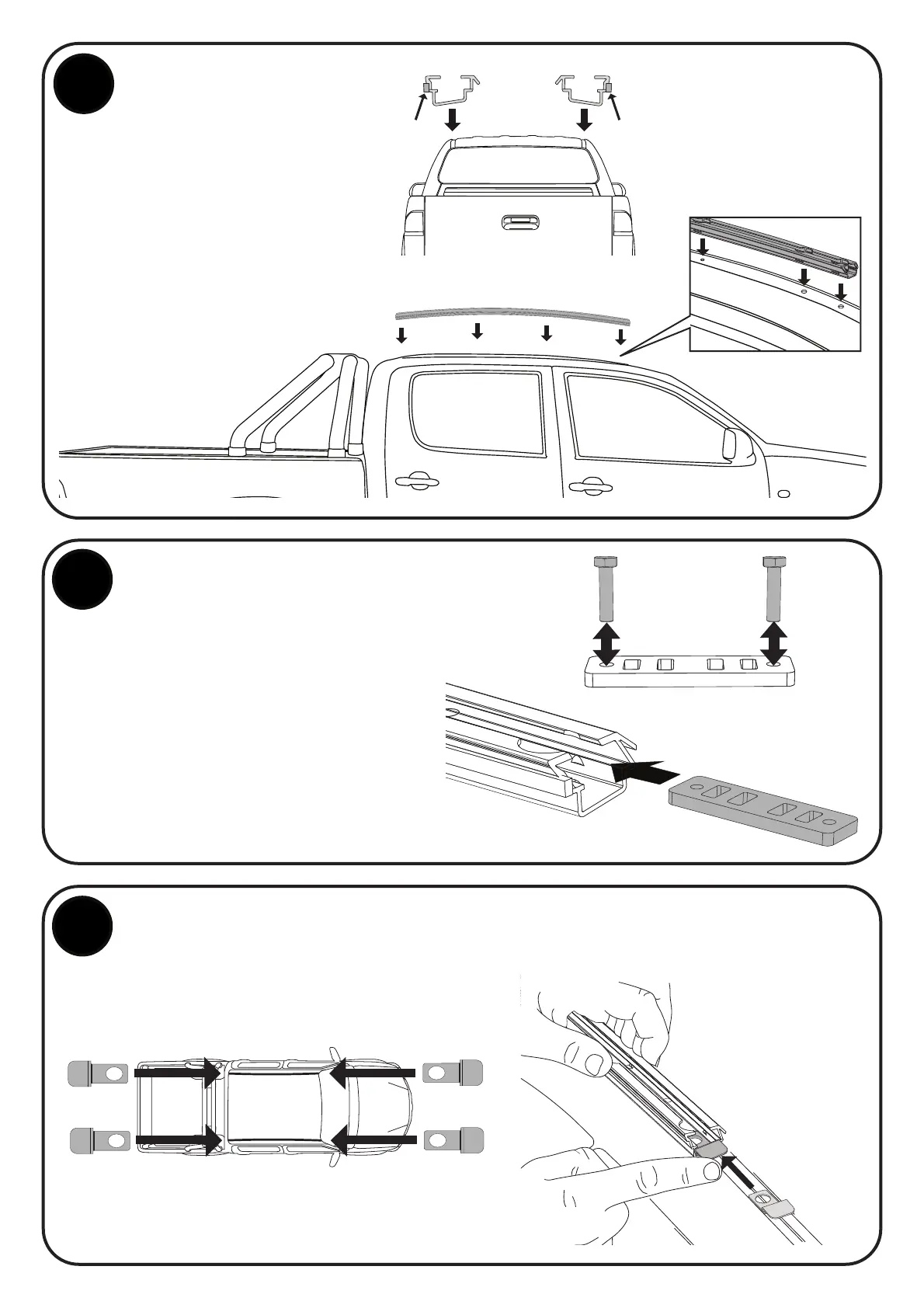

PLACE TRACK
BACK INTO
ROOF CHANNEL
Accurately place
Tracks over
drilled holes in
roof channel,
ensuring Track
orientation is
correct as shown.
Foam Tape
Foam Tape
14
INSERT NUT PLATES
Run all of the M6 Hex Screws
through the Nut Plates as shown.
This will aid installation in Step 36
END CAP FITMENT
Assemble End Caps within Tracks as shown, taking note of End Cap orientation.
Align End
Cap and slide
into position
Slide Nut Plates into each
Track end.
