Yakima LockNLoad Series - Install M8 Screws and Secure End Caps

28-13-011-Rev4 8/17

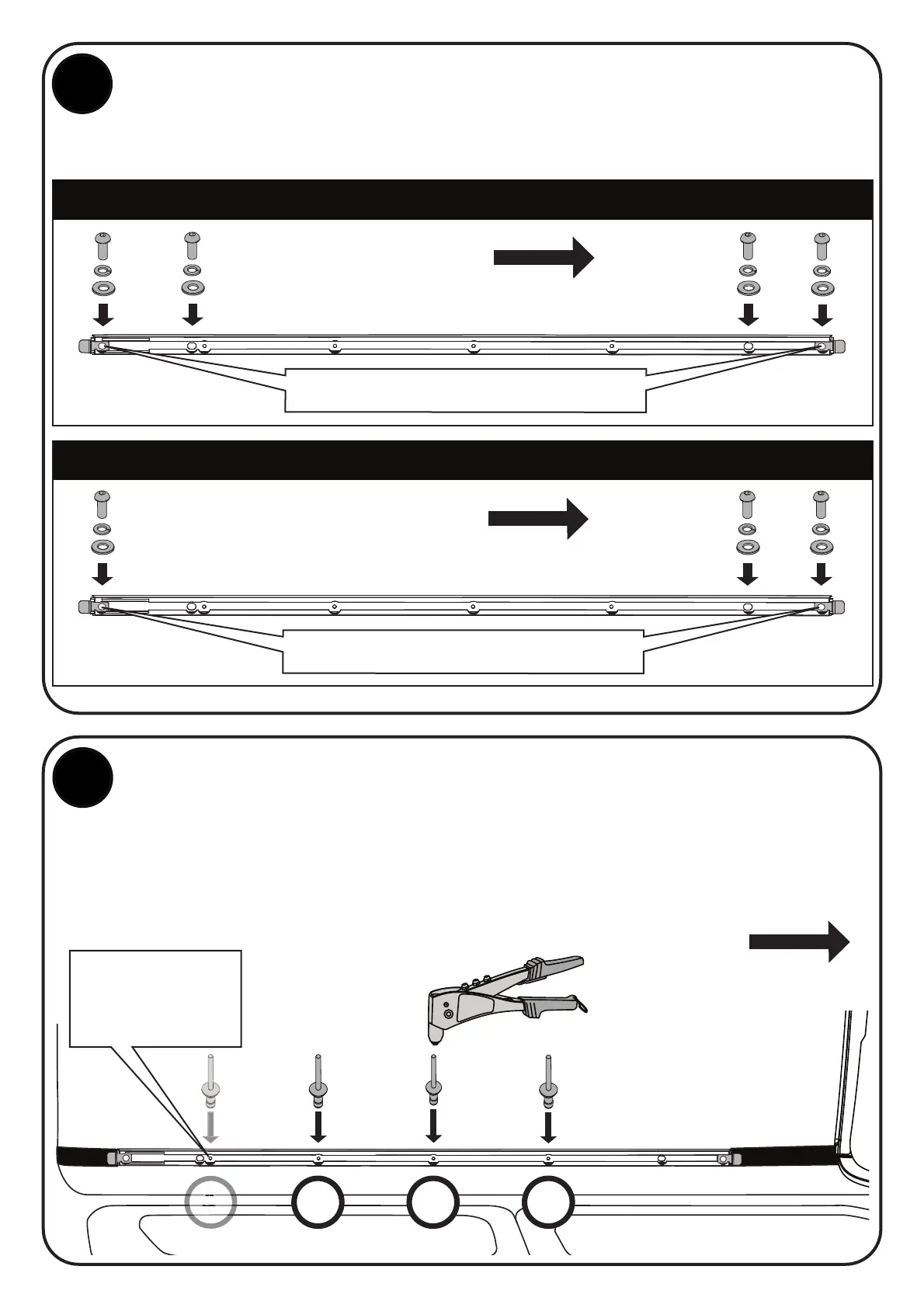

INSTALL M8 SCREWS AND SECURE END CAPS
Assemble 1 x M8 Spring Washer and 1 x M8 Washer onto each M8 Button Head
Screw in the order shown and insert into the M8 Screw holes through Track.
Tighten to 7 Nm.
17
Isuzu D-Max SX
Vehicle Front
Holden Colorado / Isuzu D-Max LS, LS-U, LS-M
Vehicle Front
To secure End Caps, insert M8 Screw assembly
through End Cap and Track. Tighten to 7 Nm.
TRACK INSTALLATION
Align Track and insert all Rivets in their respective holes through Track into roof
channel.
Using a Rivet Gun, punch each Rivet starting from the centre
Rivet, then follow the numerical riveting order as shown.
18
3
4
4
4
4
1
2
Isuzu D-Max SX
models require
a fourth rivet
as shown
To secure End Caps, insert M8 Screw assembly
through End Cap and Track. Tighten to 7 Nm.
Vehicle Front
