Yakima Swing Daddy 4 - Installation and Initial Setup; Insert Tongue into Vehicles Hitch; Install Hitch Bolt, Lock-Washer, and Washer; Install Safety Pin or Lock Tongue

1033439G-2/15

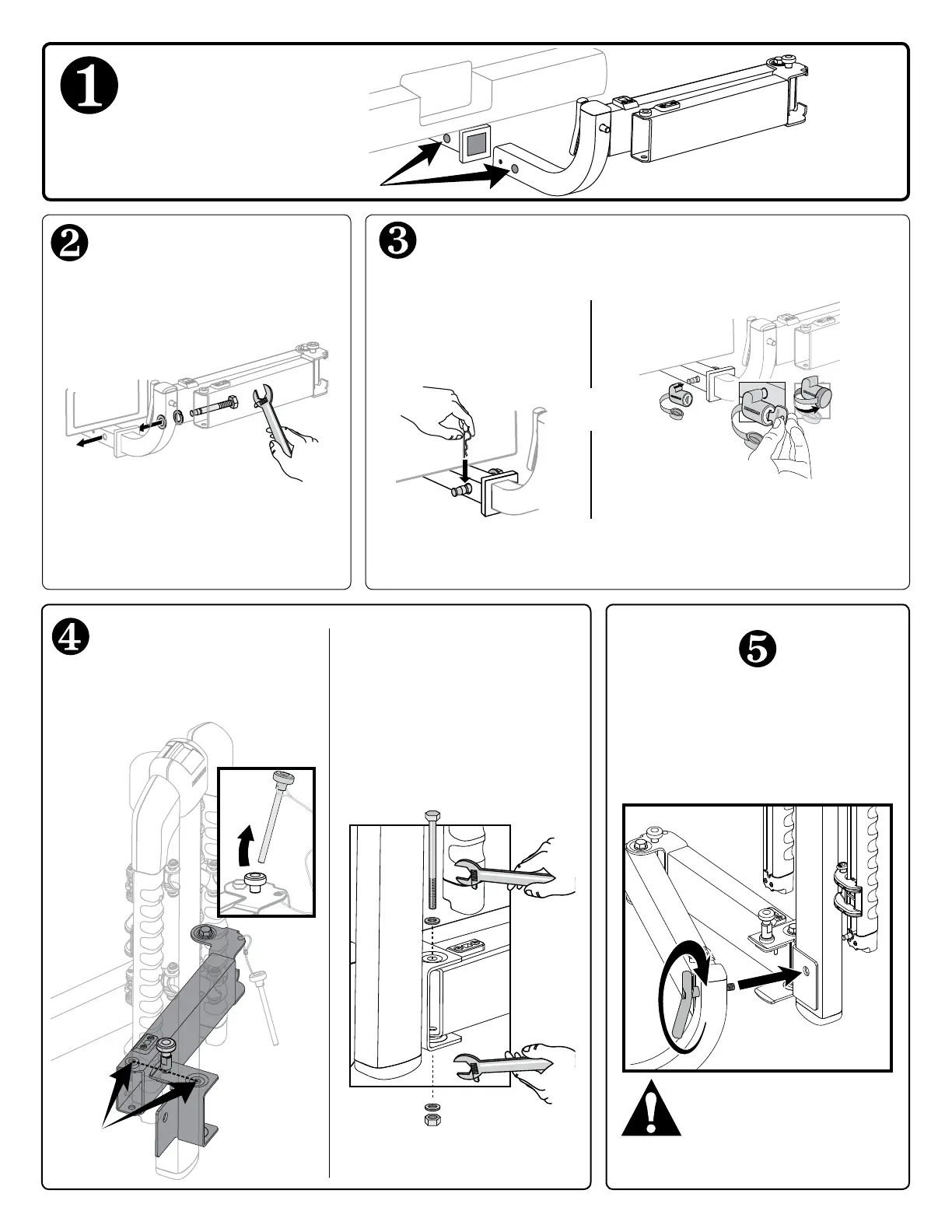

Align the holes in the
receiver to the holes in the base.
INSERT TONGUE INTO
VEHICLE'S HITCH.
INSTALL SAFETY PIN OR LOCK
TONGUE TO THE HITCH.




SECURE MAST TO
TONGUE ASSEMBLY.


completely.
IF SPARE TIRE CAUSES
INTERFERENCE,
DO NOT USE THIS
PRODUCT!
REMOVE PIN.
LIft the mast into
position
(a friend could help).

mast until holes align.


3/4” wrenches.

LOOSEN THE NUT 1/4 TURN.
ALIGN
HOLES
Install bolt, lock-washer, and
washer from right side of receiver.
Install hitch bolt, lock-
washer, and washer.
TIGHTEN 
Install safety pin.
OR
Attach hitch lock.
