Yakima Swing Daddy 4 - Securing Bikes and Accessing Vehicle Rear; Lock Bikes to Carrier; Accessing Vehicle Rear; Pre-Drive Safety Checks

1033439G-4/15
"click"

recess at rear of mast.

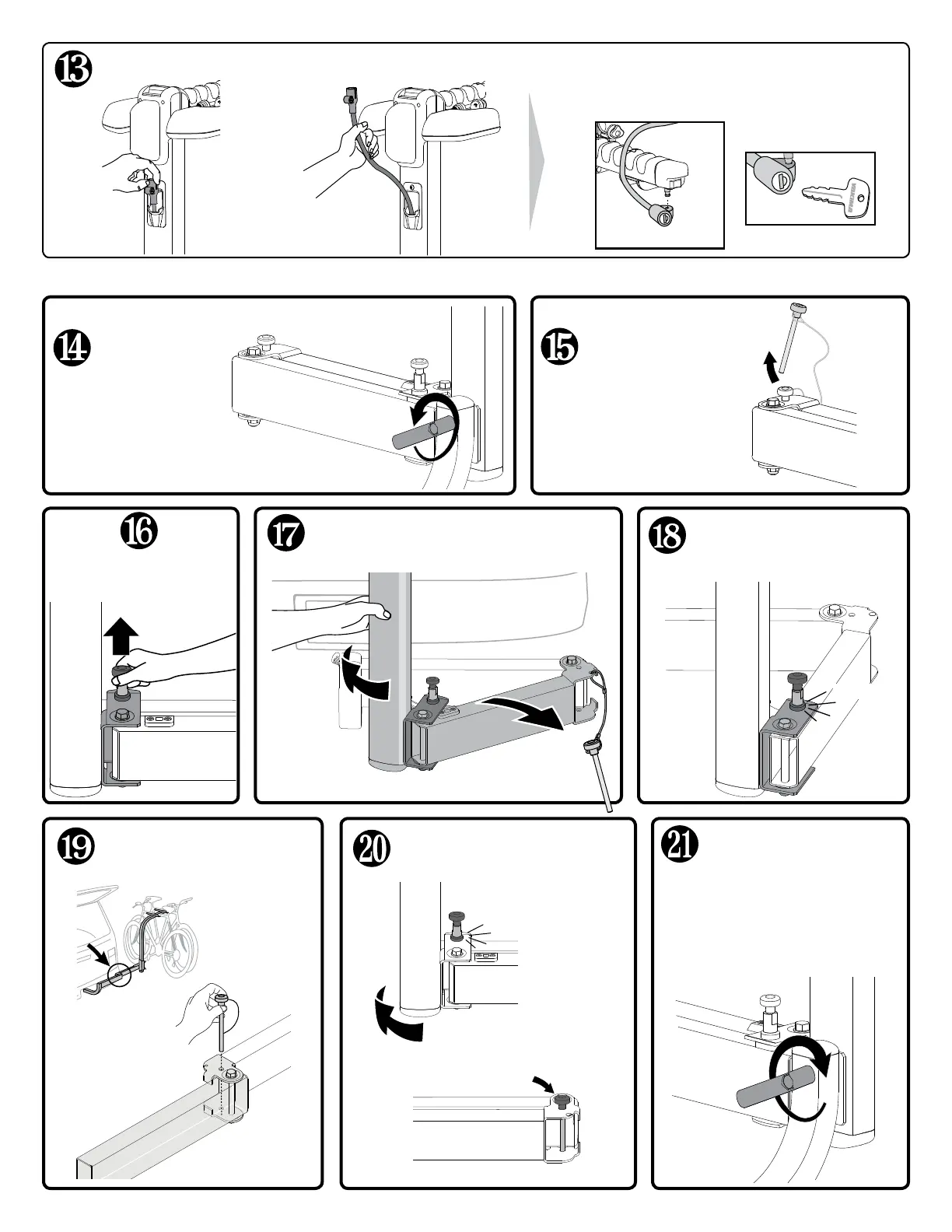

LOCK BIKES TO CARRIER.



ACCESSING REAR WHEN BIKES ARE LOADED
Lift spring pin…
LOOSEN WING BOLT
COMPLETELY.
Stabilize loaded
arm by inserting
pin into hole.
lose gate and tighten
large wing bolt.

(next step).
You should hear
a click as mast
snaps into place.
REMOVE PIN.
Pull gate away from vehicle,
while rotating mast…
CLOSE THE
GATE.
You should
hear a click
as mast
snaps into
place.
Replace the pin.
BEFORE
DRIVING AWAY
