1. VALVE ELEMENT
2. SLEEVE
3. NEEDLE BEARING
4. SLEEVE
5. O-RING
6. VALVE BODY
7. O-RING
8. X-TYPE SEAL
9. FRONT CAP
10. O-RING
11. SPRING WASHER
12. HEX SOCKET SCREW 20-30 N•m (14.8-22.1 psi)
13. PIN
14. VALVE DRUM
15. WASHER
16. SPRING SHIM
17. JOINT SHAFT
18. MIDDLE PLATE
19. ROTOR
20. STATOR
21. O-RING
22. SLIP RING
23. LIMIT RING
24. REAR CAP
25. WASHER
26. LIMIT BOLT 35-40 N•m (25.8-29.5 psi)
27. HEX FLANGED SCREW 35-40 N•m (25.8-29.5 psi)
28. THREAD BUSHING
29. STEEL BALLS

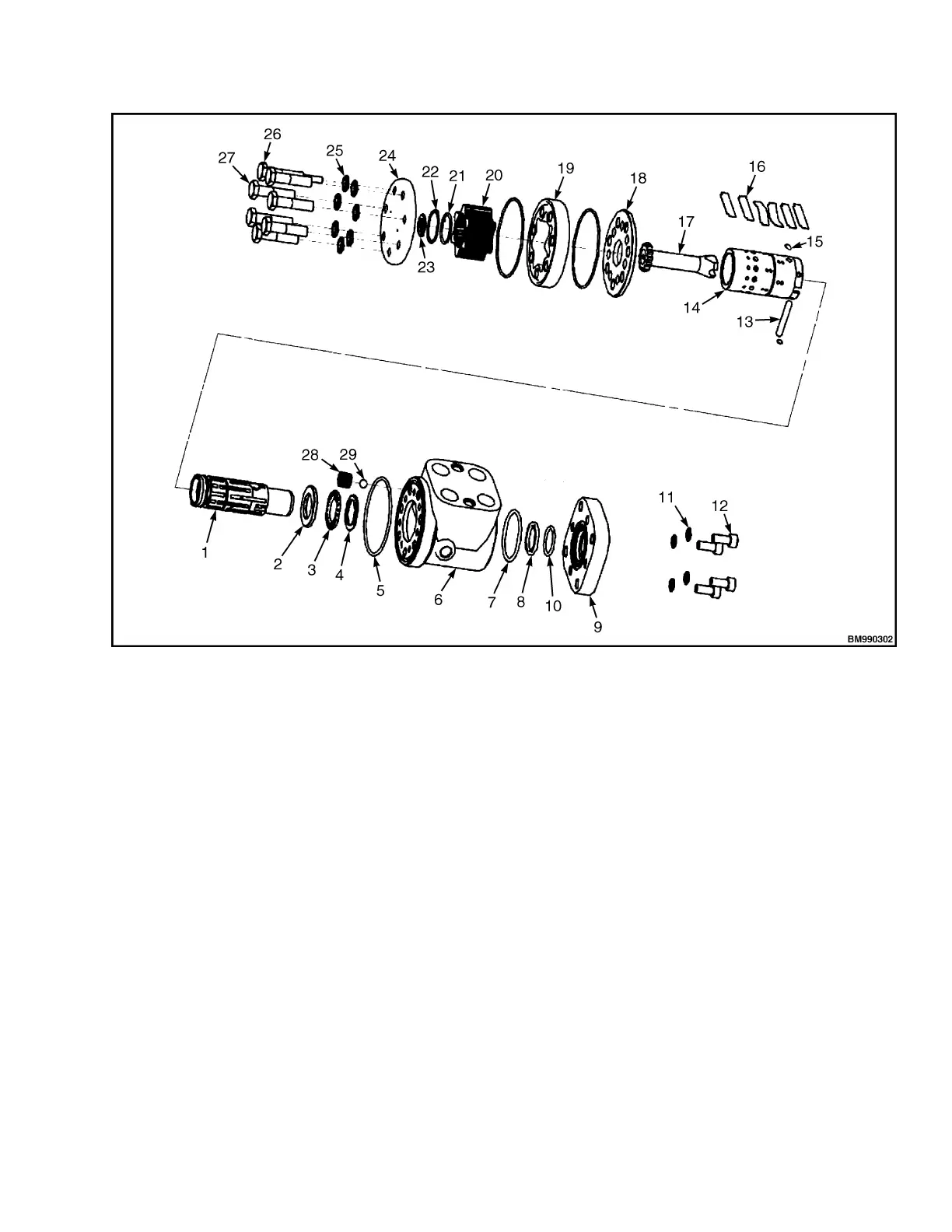

Figure 20. Hydraulic Steering Gear
Steering Cylinder
The steering cylinder is a double acting cylinder. The
two ends of piston rod are connected with a steering
knuckle by connecting rod. Pressurized oil from the
fully hydraulic steering gear enables the piston rod to
move left or right through steering cylinder, thus to
achieve proper steering.
