Yale Assure Lock YRC652

12
P/N YRL-EMICL-256-KFTSINSTL-FUL Rev A
6

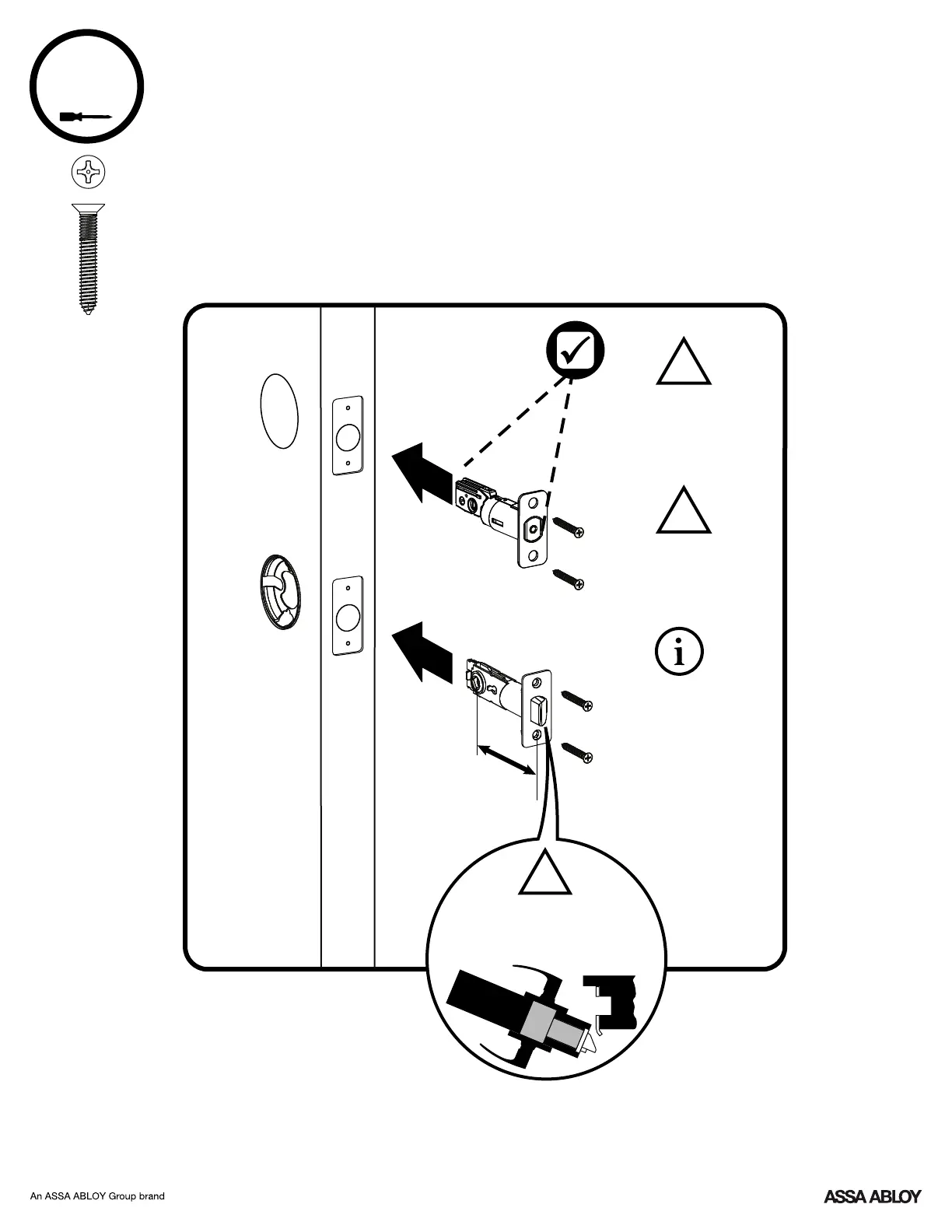

Installing Deadbolt Latch & Latchbolt
x4
7-16 / 8-32 x 1" UNCWS
Choose latchbolt
based on backset.
(2-3/8" or 2-3/4")
Inside of Door
Bolt must be in
retracted (unlocked)
position before
installing.
!
Ensure arrow
stamped on deadbolt
is UP.
!
U
P
Spacer collar
must be used for
1" edge bore.
Collar can be
removed for
3/4" edge bore.
Edge bore can be
3/4" or 1" only.
Curved edge
of latchbolt faces
direction door closes.
!
