Yale Assure Lock YRD430 User Manual

Part of ASSA ABLOYP/N YRD400-KF-0022 Rev ATrusted every day
2

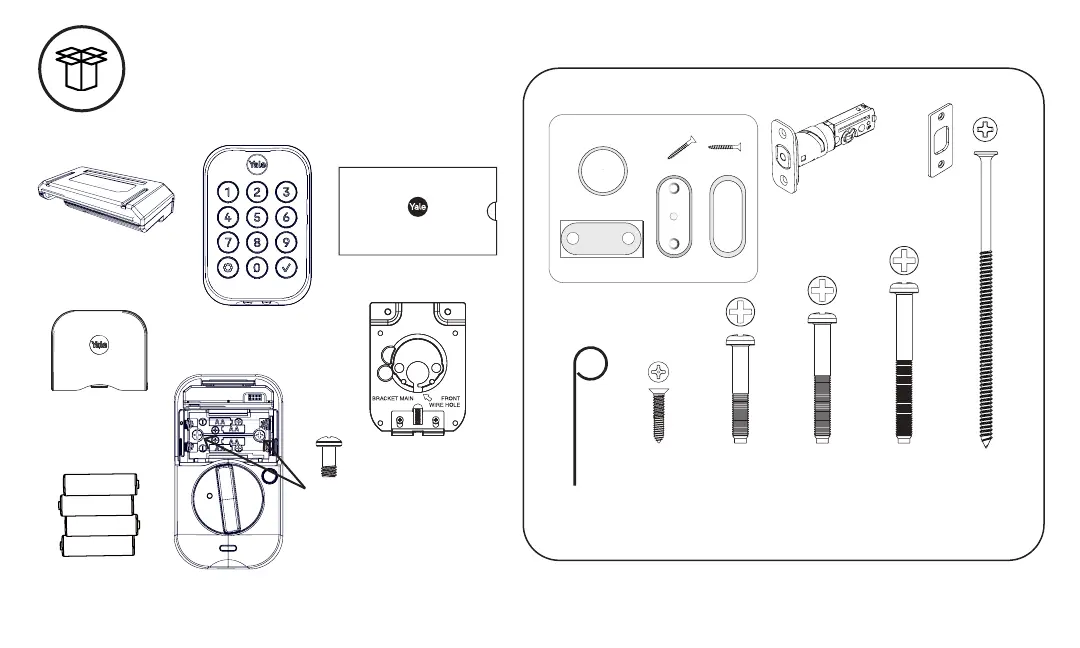

In The Box
AA
AA
AA
AA
Yale Smart Module
(with select models)
Exterior Keypad
Interior Lock
Mounting Plate
Batteries
Screws and
Plastic Clips
(pre-installed)
Battery Cover
Guide
Hardware Components
x4
x2
Note: You must use the provided screws from the
hardware pack when installing this lock.
Adjustable Deadbolt
Latch (AYRDB DRIVE
Adjustable Drive-In Deadbolt
Latch available for purchase)
Reset Pin
Strike
Plate
x2
Screw Set D
Silver for
2 to 2-1/4"
Door Thickness
x2
Screw Set C
Black for
Standard 1-3/4"
Door Thickness
x2
Screw Set B
Blue for
1-3/8"
Door Thickness
x2
Optional
Security
Strike Plate
Screws
x4
Strike Plate
and Deadbolt
Screws
x20mm
DoorSense
DoorSense
Screws
Cover Housing
Mounting Tape
Flush Mount Cap
