Yale Essential YDME-50

Essential Se
ries
2 3
Essential Series
YDME - 50
YDME - 50
Installation

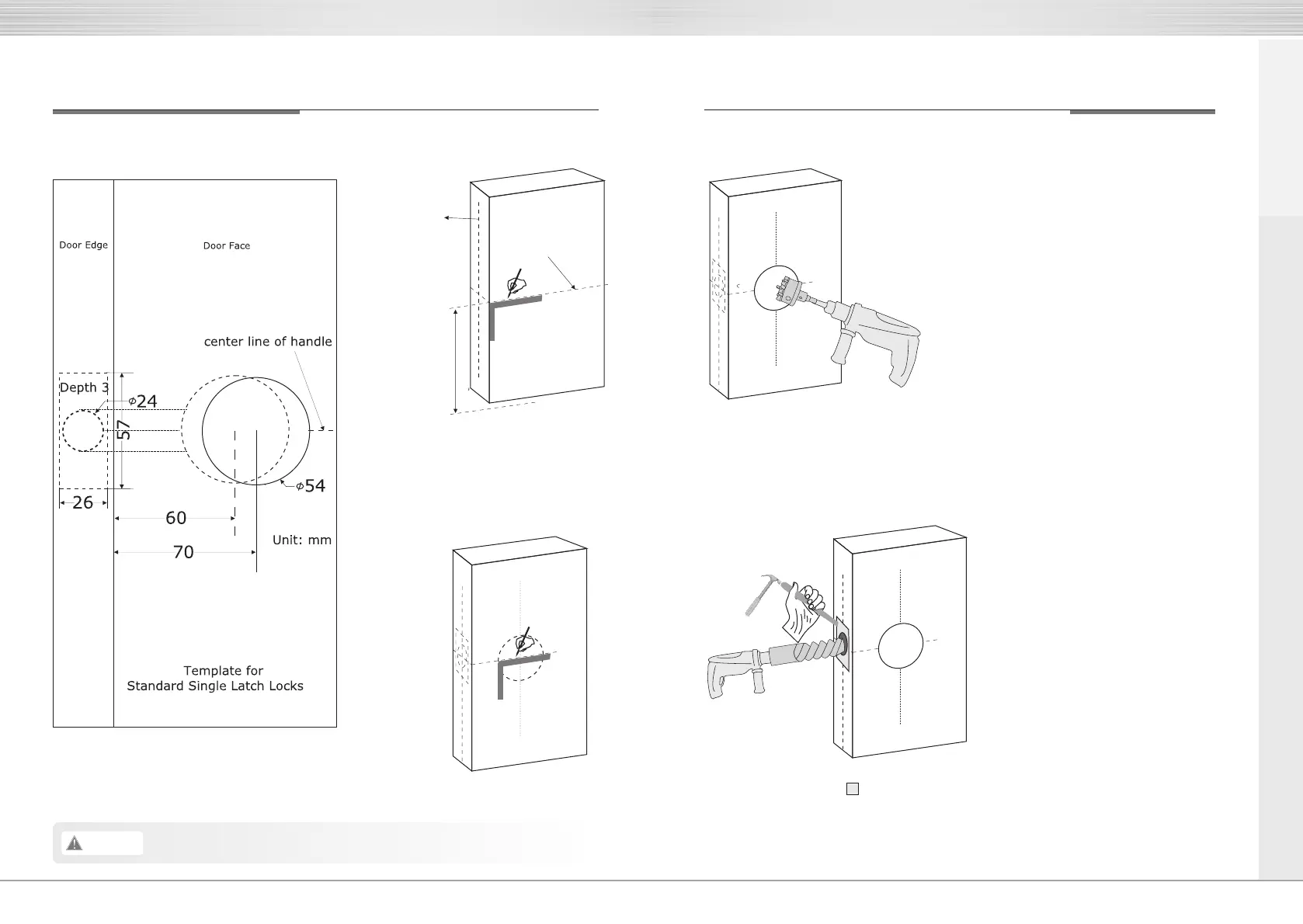

1. Hole Drilling
1.1 Draw the center lines 1.3 Drill holes on the door faces
1.3 Open the hole on the door edge
1.2 Mark the positions of all holes
according to the template
Center line of
door thickness
Center line of
handle
Finished oor
Suggest 950mm
from the door
From nished door, measure desired height
(950mm as recommended) on door. Stretch it to a
horizontal line cross 3 sides of the door. Draw
a vertical line on the center of the door edge.
Tips: Mark the hole positions on the back of door in
same way. The hole on the door edge is on the center
of door edge.
Tips: Drill halfway from each side
of the door.
.
Note: The part with colour should be opened
only to a depth of 3mm.
