600 YRM 496 Cooling System Repair
1. CLEARANCE BETWEEN CRESCENT AND
INNER GEAR
2. CLEARANCE BETWEEN CRESCENT AND
GEARS
3. SIDE CLEARANCE OF GEARS IN HOUSING
4. CLEARANCE BETWEEN HOUSING AND OUTER
GEAR

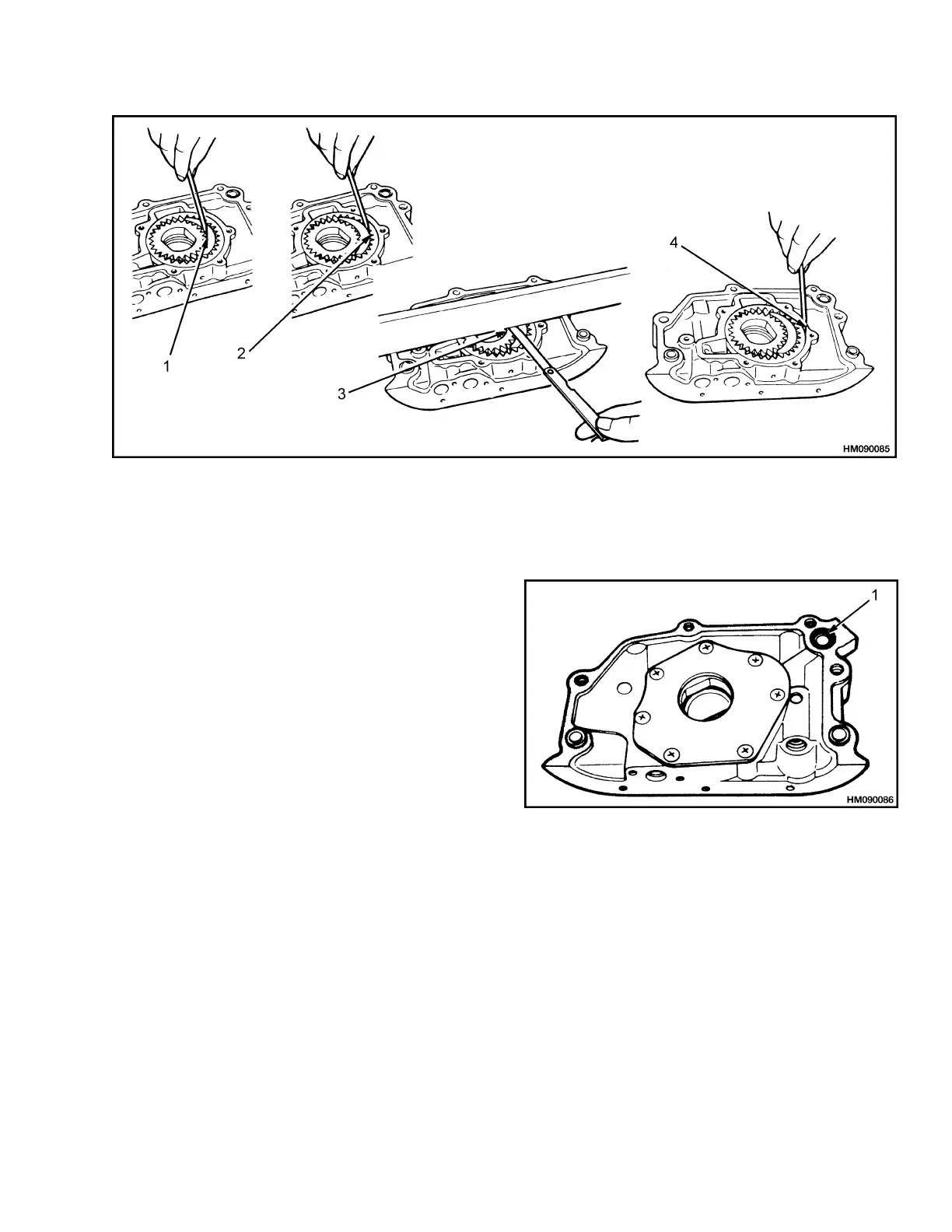

Figure 40. Oil Pump Measurement
INSTALL
1. Install O-ring on oil pump housing. Use grease to
hold O-ring in position. Lubricate oil seal with en-
gine oil. See Figure 41.
2. Use adhesive sealant to install oil pump housing on
cylinder block. Make sure there is no sealant in oil
port. Tighten M10 capscrews to 38 to 53 N•m(28
to39lbfft).TightenM8capscrewsto19to26N•m
(14to19lbfft).
3. Install suction tube assembly. Install gasket and oil
pan.
1. O-RING
Figure 41. Oil Pump
Cooling System Repair
THERMOSTAT
Replace
1. Drain cooling system to level of thermostat.
2. Disconnect hose and remove thermostat housing.
Remove thermostat. See Figure 42.
17
