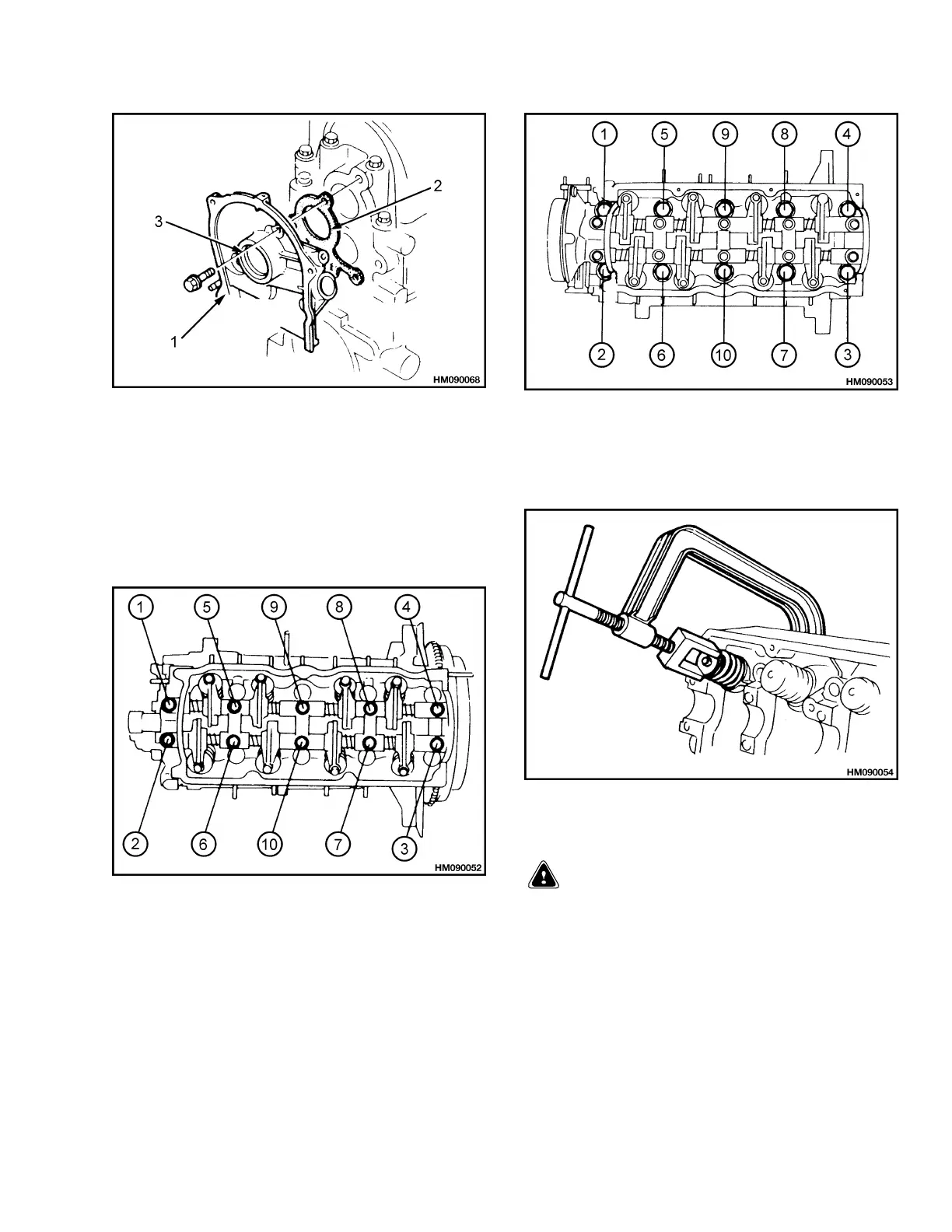

600 YRM 496 Cylinder Head, Camshaft, and Valve Mechanism Repair
1. FRONT HOUSING
2. GASKET
3. OIL SEAL
Figure 4. Front Housing
12. Remove valve cover.
13. Loosen capscrews for rocker shaft supports in
proper sequence. See Figure 5. Remove rocker
shaft assembly and camshaft.
Figure 5. Rocker Assembly Removal Sequence
14. Remove capscrews for cylinder head in proper se-
quence. See Figure 6.
15. Lift cylinder head from the block.
Figure 6. Cylinder Head Removal Sequence
16. Use valve spring compressor to remove valve re-
tainers, springs, and valves from head. See Fig-
ure 7.
Figure
7. Valve Removal
CLEAN
WARNIN
G
Cleaning solvents can be flammable and toxic and
can cause skin irritation. When using cleaning
solvents, always follow the solvent manufacturer’s
recommended safety procedures.
Clean all parts in solvent. Make sure all oil passages
are clean and all machined surfaces are smooth.
