Yale GC040-065RF User Manual

Distributor Repair 600 YRM 496
1. PULLEY
2. SHAFT AND
BEARING
ASSEMBLY
3. WASHER
4. HOUSING
5. SEAL
6. IMPELLER

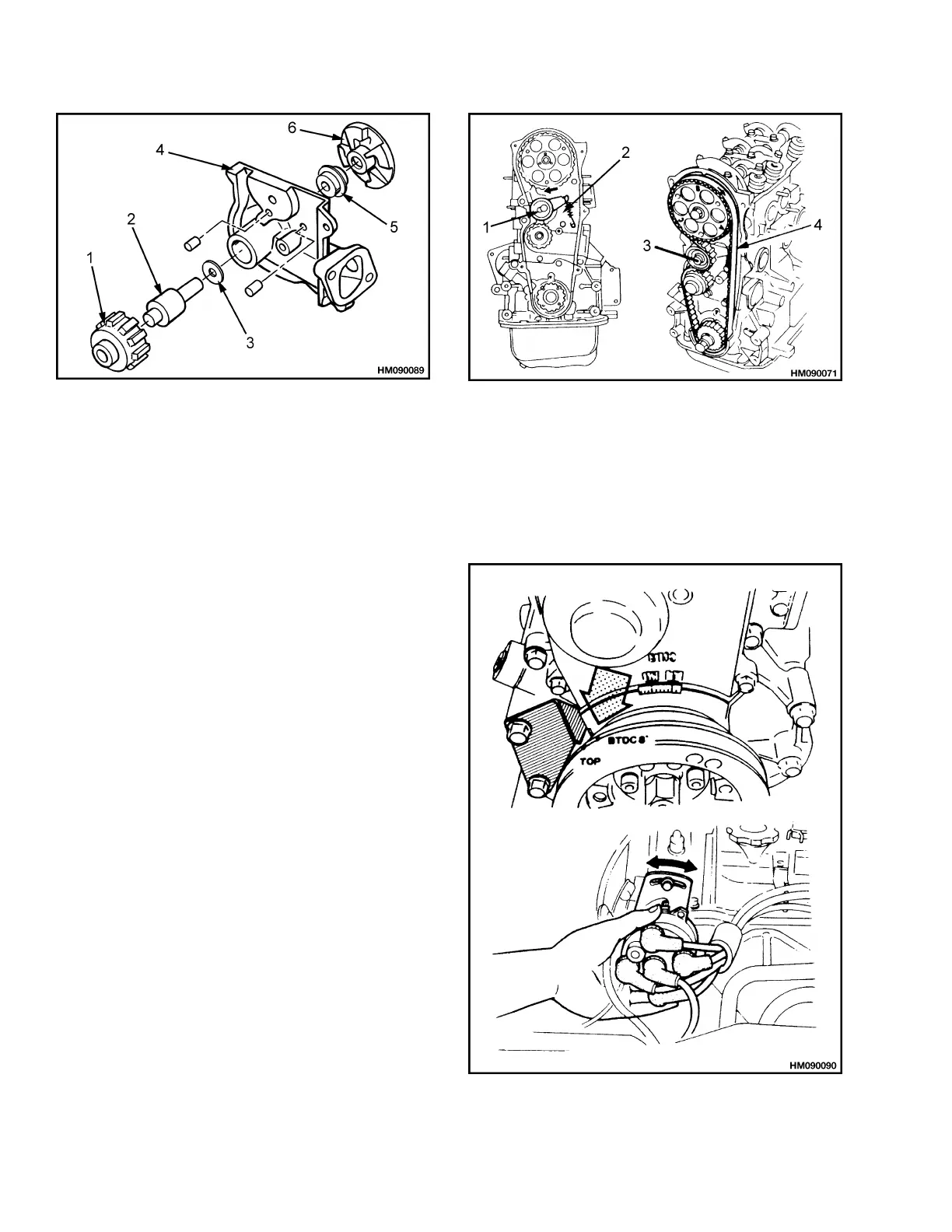

Figure 46. Water Pump
1. TENSIONER
2. SPRING
3. LOCK BOLT
4. TENSION SIDE
Figure 47. Timing Belt Installation
Distributor Repair
NOTE: This section only has the removal and installa-
tion procedures for the distributor. Service procedures
for the ignition system are found in the Electrical Sys-
tem section.
REMOVE
1. Rotate crankshaft until No. 1 piston is at TDC on
compression stroke. Make note of position of dis-
tributor rotor. See Figure 48.
2. Disconnect wires at spark plugs.
3. Remove capscrew from flange of distributor shaft
housing. Lift distributor assembly from engine.
INSTALL
1. Rotate crankshaft until No. 1 piston is at TDC on
compression stroke. Put rotor in correct position.
See Figure 48.
2. Lubricate O-ring and gear on distributor engine oil.
Install distributor, making sure to align marks on
distributor housing, distributor gear, and engine.
3. Connect wires at spark plugs.
Figure 48. Distributor Replacement
20
