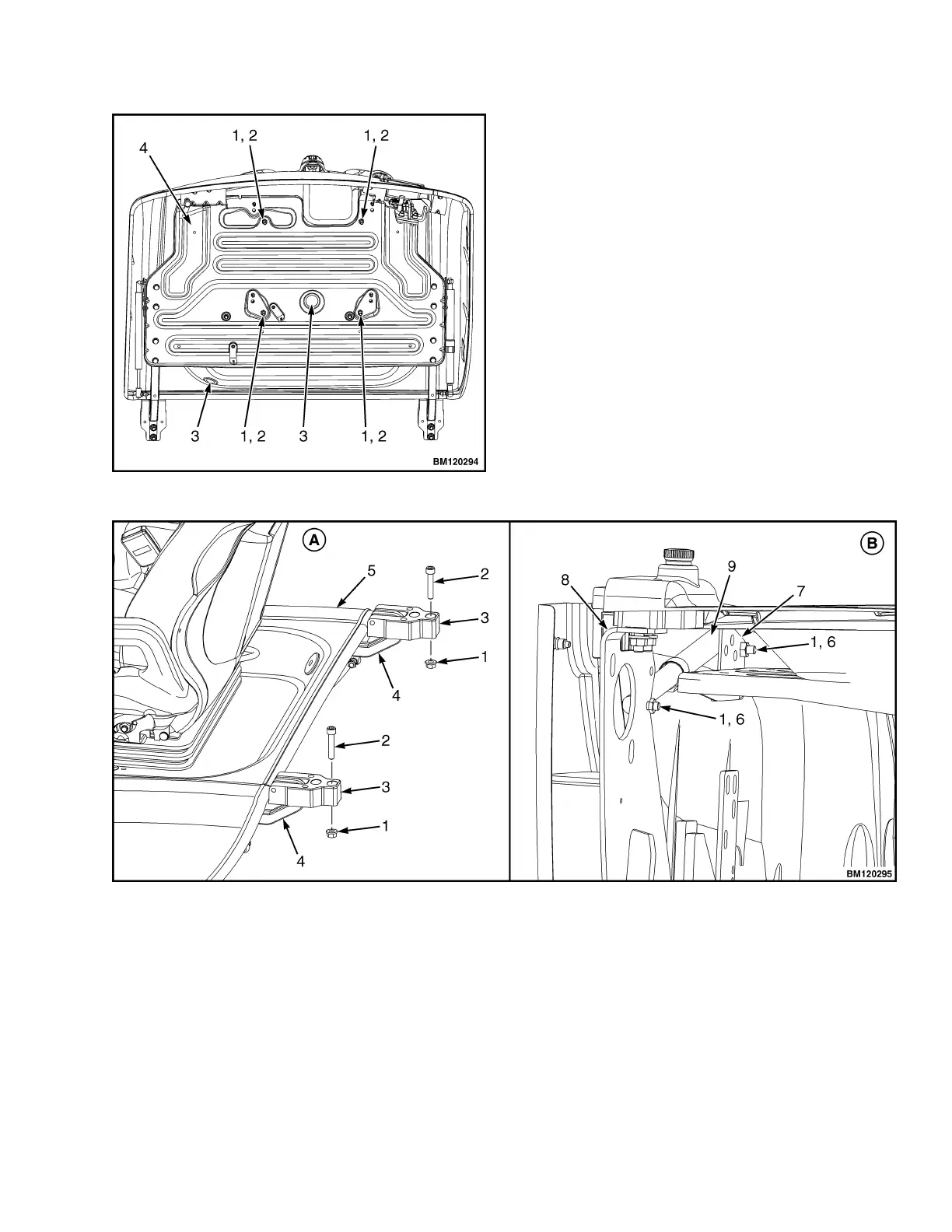

Figure 8. Remove Seat From Hood
Legend for Figure 8
NOTE: MOUNTING HOLES FOR FULL SUSPEN-
SION SEAT SHOWN. MOUNTING HOLES FOR
NON-SUSPENSION SEAT ARE THE SAME.
1. CAPSCREW
2. NUT
3. HOLE FOR CHASSIS HARNESS
4. HOOD LINER
A. HOOD HINGE ARRANGEMENT B. GAS SPRING ARRANGEMENT (LEFT SIDE
SHOWN)
1. NUT
2. CAPSCREW
3. HOOD HINGE MOUNT
4. HOOD HINGE ARM
5. HOOD
6. BALL STUD
7. GAS SPRING MOUNTING BRACKET
8. HOOD MOUNT
9. GAS SPRING
Figure 9. Gas Spring and Hood Removal
0100 YRM 1766 Hood, Seat, and Side Covers Replacement
9
