Yale GLP20LX

11. Remove the bolts retaining the intake manifold to
the cylinder head and remove the intake manifold
and gasket. Discard gasket. See Figure 15.
1. GASKET
2. INTAKE MANIFOLD
3. BOLT
4. CYLINDER HEAD

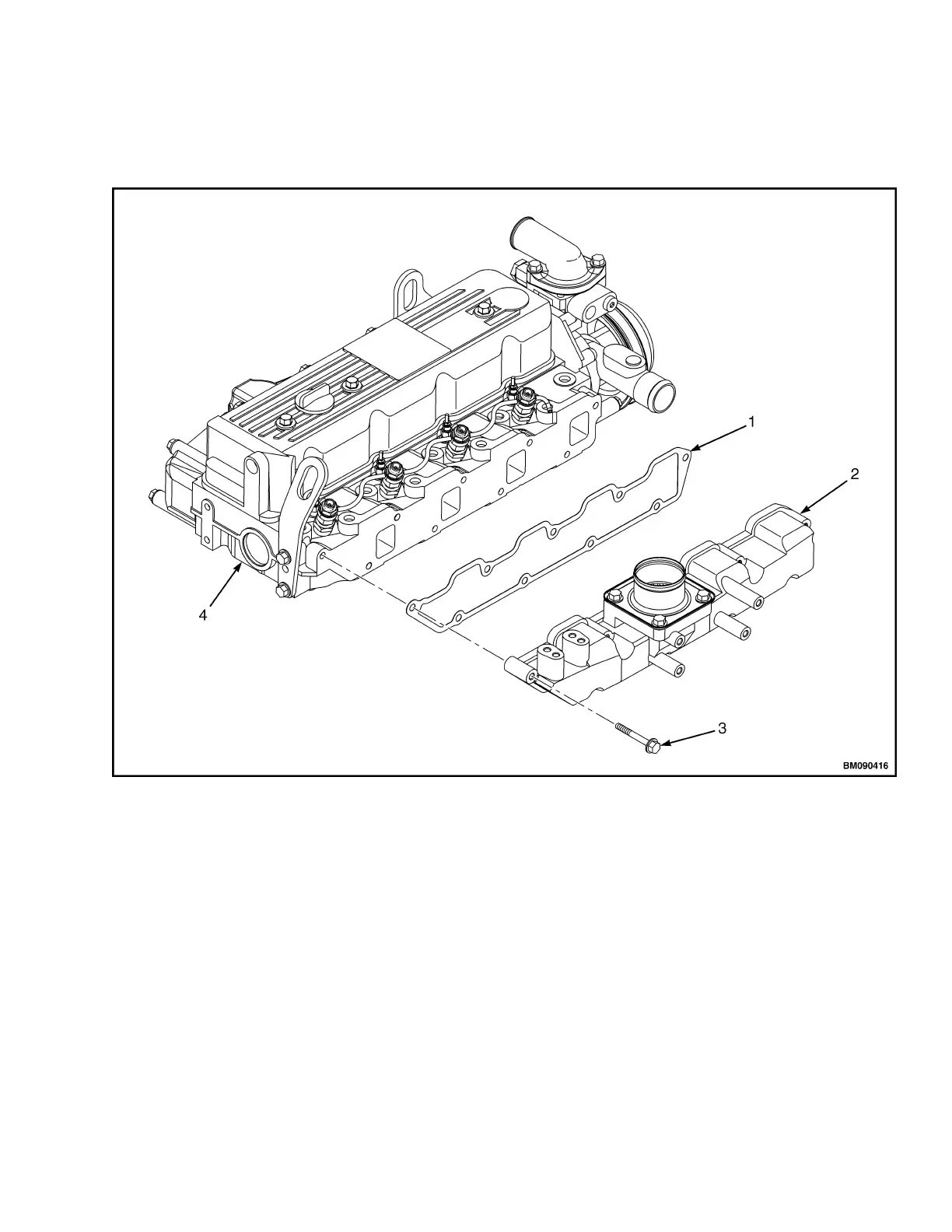

Figure 15. Intake Manifold
0600 YRM 1205 Cylinder Head Assembly Repair
13
