1. RAIN TOP
2. CAPSCREW
3. WHEEL NUT
4. LOCKNUT
5. WASHER
6. LEFT BRACKET
7. RIGHT BRACKET
8. CENTER BRACKET
9. BUSHING
10. SEALER
11. OVERHEAD GUARD

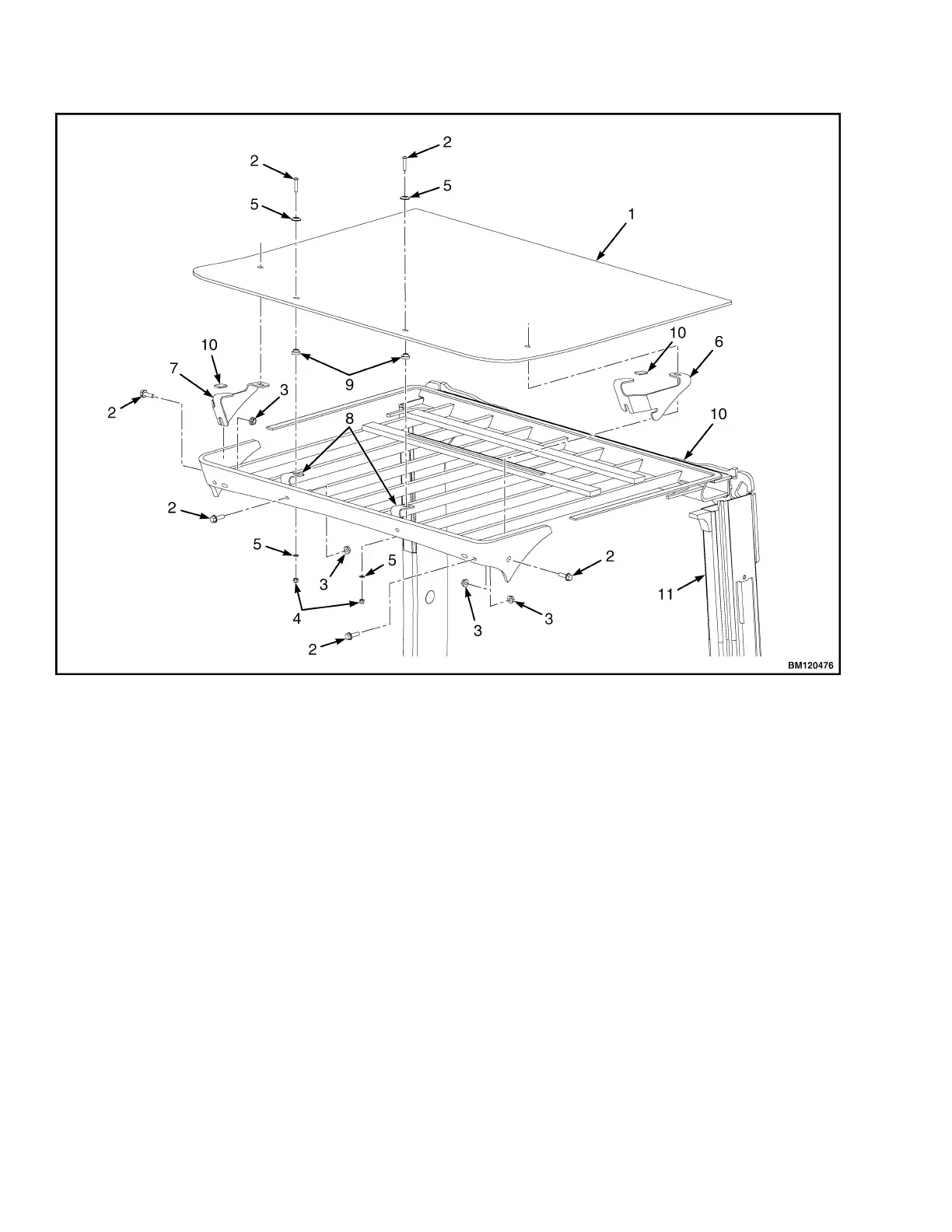

Figure 19. Overhead Guard Rain Top
Overhead Guard Replacement 0100 YRM 1766
20
