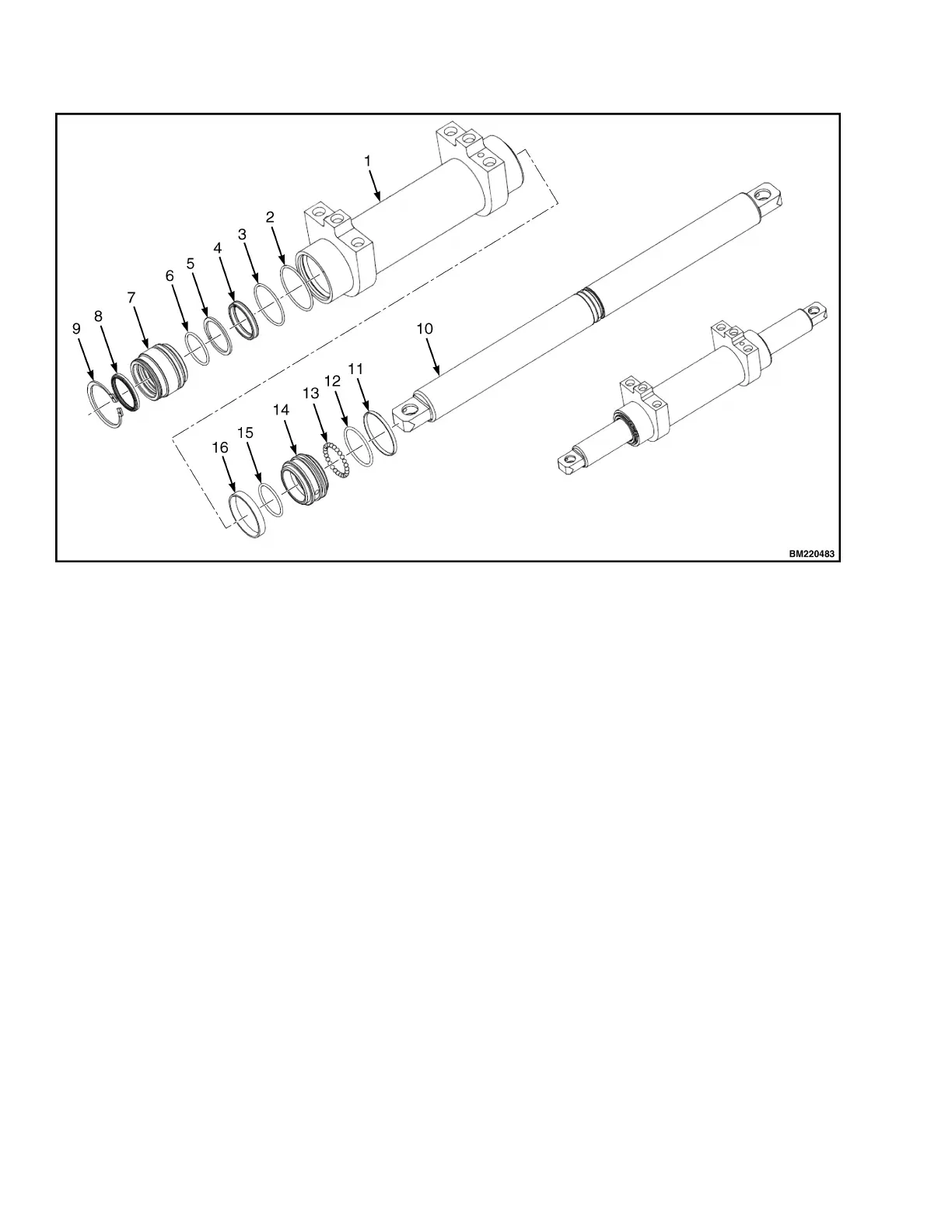

1. CYLINDER CASING
2. CIRCLIP
3. O-RING
4. AXIAL SEAL RING
5. FLAP
6. O-RING SEAL
7. CYLINDER CAP
8. DUST RING
9. RETAINER
10. PISTON ROD
11. SUPPORT RING
12. O-RING SEAL
13. STEEL BALL
14. PISTON
15. O-RING SEAL
16. SUPPORT RING
Figure 21. Steering Cylinder
Inspection of Reassembled Steering
System
1. Turn the steering wheel to the left and right, to
confirm both sides will turn to equally.
2. Inspect hydraulic oil lines and confirm they are
connected in the right direction and properly
routed.
3. Use a jack to lift the rear wheels. Slowly turn the
steering wheel to the left and right. Repeat for
several times, to remove any air from the fluid line
and cylinder.
Steering System 8000 YRM 2199
22
