Yale GP120VX User Manual

Table 4. Proc_Cal_002: Hydraulic Valve Calibration Warm Up and Air Bleed

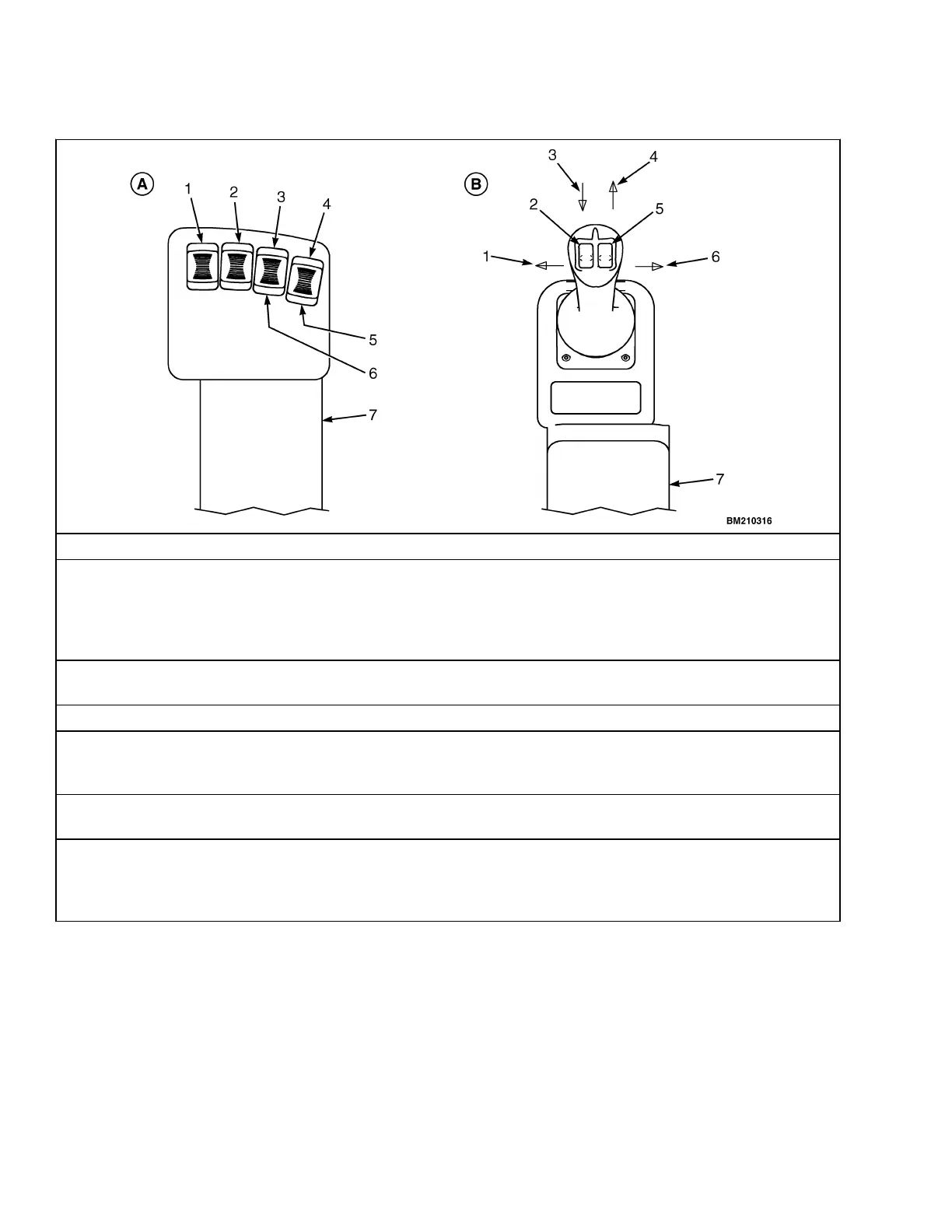

A. E-HYD CONTROL LEVERS
1. LIFT/LOWER
DIRECTION LIFT ↓
DIRECTION
LOWER ↑
2.TILT
DIRECTION BACK
↓
DIRECTION FWD
↑
3.*AUX 1 OR AUX
2
DIRECTION A ↑
DIRECTION B ↓
4.*AUX 2 OR AUX
3
DIRECTION A ↑
DIRECTION B ↓
5.*FOURTH
LEVER
6.*THIRD LEVER
7.SEAT ARMREST
*AUX 2 IS IN THE FOURTH LEVER LOCATION EXCEPT AS FOLLOWS: WITH 5 FUNCTION VALVE WITH CLAMPING ATTACHMENT,
AUX 2 IS IN THE THIRD LEVER LOCATION.
2. JOYSTICK
1. TILT BACK 2. AUX 1
DIRECTION A ↑
DIRECTION B ↓
3. LIFT ↓
4. ↑ LOWER
5. AUX 2
DIRECTION A ↑
DIRECTION B ↓
6. TILT FORWARD
7. SEAT ARMREST
Perform Proc_Cal_025: Hydraulic Valve Pressure Gage Installation and Proc_Cal_001: Service Password
Entry before proceeding.
Information: First determine if it is necessary to bleed the air out of the lift valve and cylinders. The hoist valve
air bleed procedure is necessary if the carriage moves slightly (approximately 1/4 inch) when the engine is
started, without activation of the lift control. The cylinder air bleed procedure is necessary if the cylinders have
not been previously cycled, or if the left function is not operating smoothly.
Proc_Cal_002: Hydraulic Valve Calibration Warm Up and Air Bleed 8000 YRM 1134
6 Confidential/Proprietary - Do Not Copy or Duplicate
