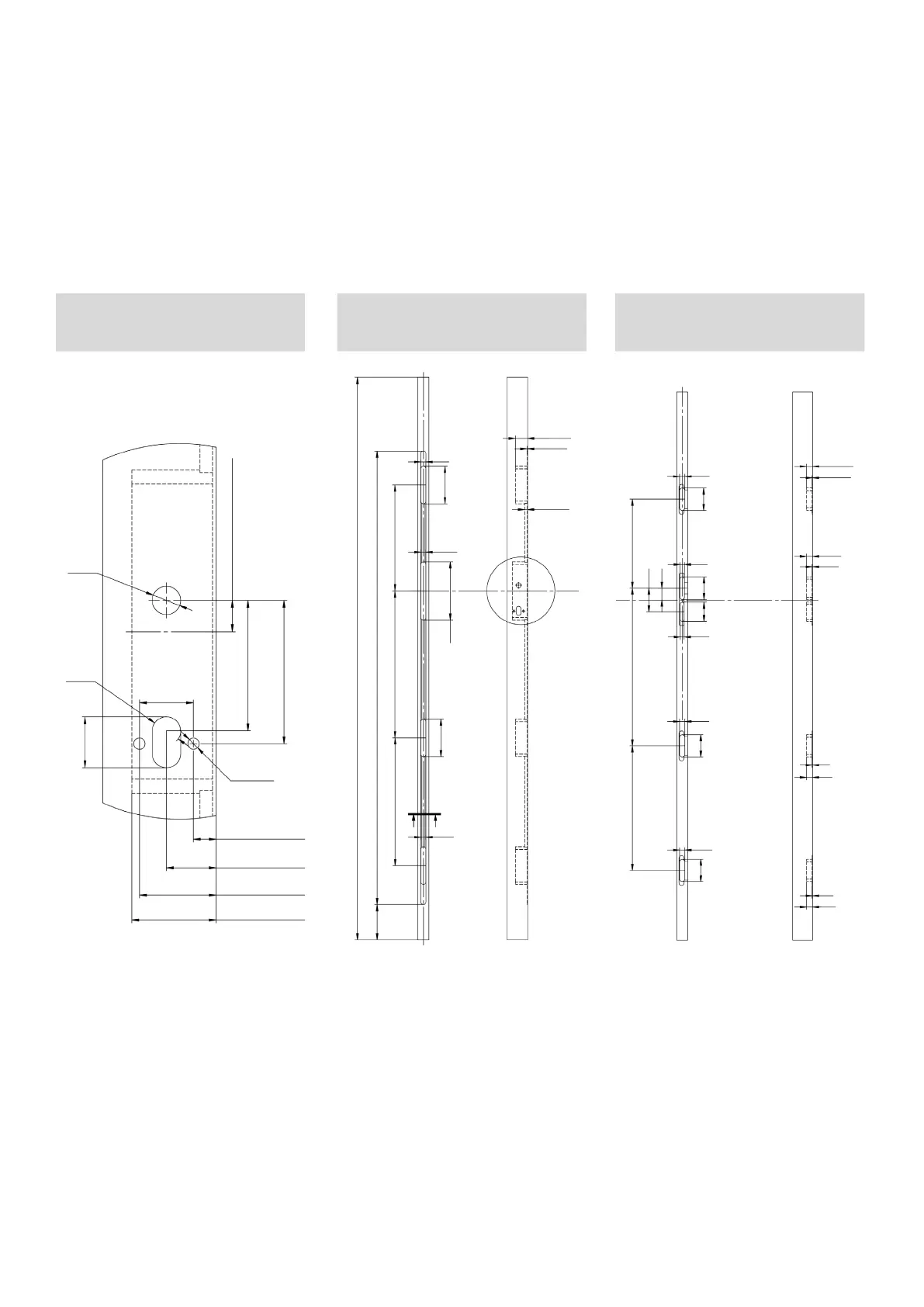

Lockmaster AutoEngage - Fire Door Routing Prep
Heritage multipoint lock - YAS13500THFD
The incorrect routing can lead to a number of operation and performance
issues.
Handle / Cylinder Pull
Routing
Lock Routing
Keep Routing
Prep rev. 4 - March 2022
The Lockmaster AutoEngage has been designed for use on independently accredited Fire Doors. Please ensure that you have the correct test
evidence in place before using this product as part of a Fire Door assembly.
Yale Door and Window Solutions does not hold or provide Fire Door test evidence for this product. The responsibility for ensuring its compliance is
solely down to the door set manufacturer.
16mm = 35 b/s
26mm = 45 b/s
35mm = 35 b/s
45mm = 45 b/s
54mm = 35 b/s
64mm = 45 b/s
60mm = 35 b/s
70mm = 45 b/s
Ø 8 (x2)
Ø 20
Ø 20
38
36
92
101
22mm CENTRE OF CASE
147
228
20
20
147
20
138
500 575 414.5
1774
2200
47.5
2.5
11.5
22
18
16
90
9177
22
90
22
90
500 633 357
95
48
25
2
25
2
25
2
25
2
