Yale Lockmaster AutoEngage - Page 8

When fitting a cylinder pull
Please ensure an Ø8mm diameter is used to
drill through the door to accommodate the
M6 fixing screws (see figure six).
Euro groove preparation
Should a euro groove be required – please route as per the illustrations below for either a 16mm or 20mm
faceplate lock variant.

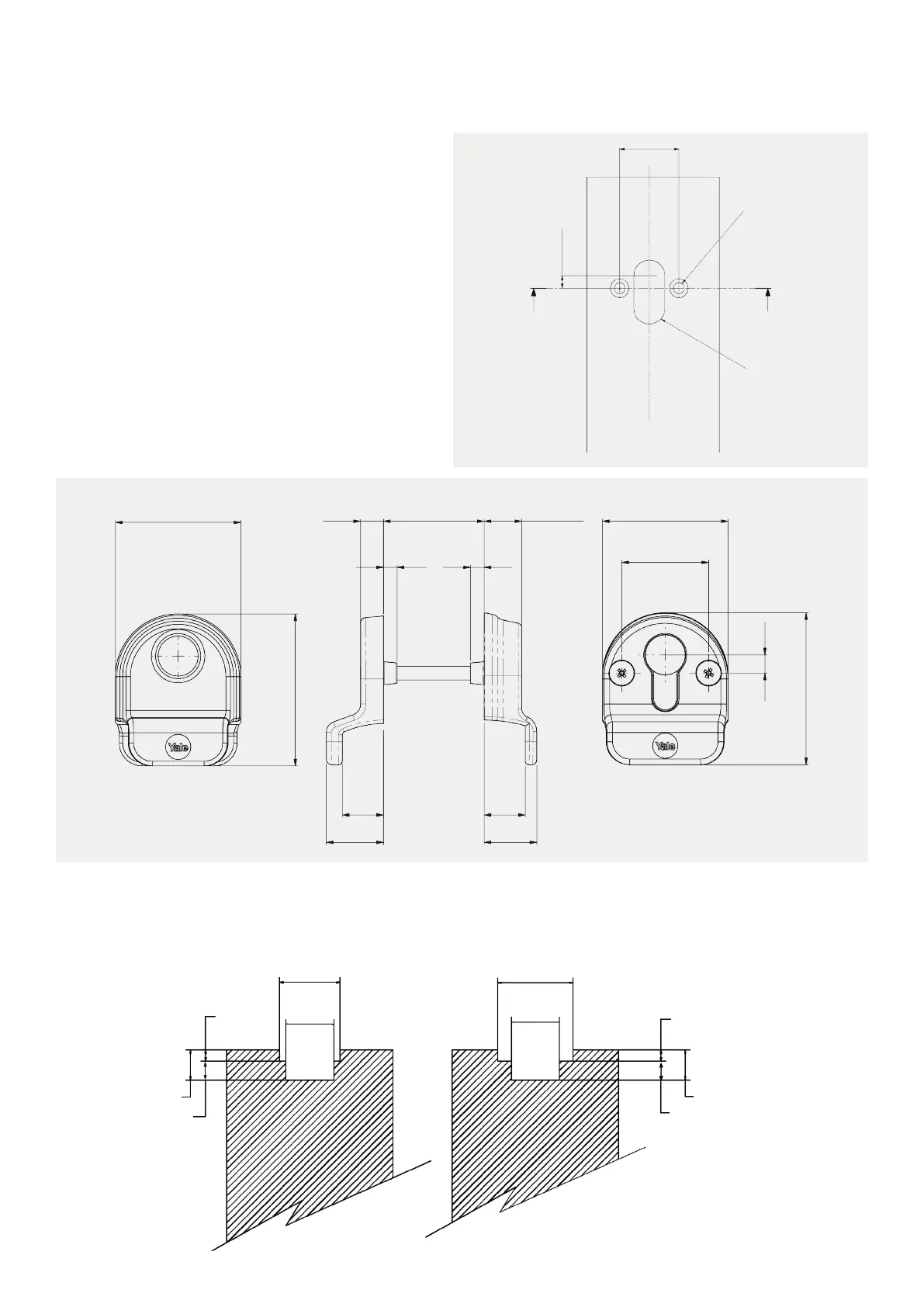

Figure six
Technical Illustration
38mm CRS
8mm CRS
A A
2 Thru’ holes to
accomodate M6
fixing screws
Euro profile
cylinder hole
55mm 55mm
44mm- 48mm
Door width
10mm
66mm
18mm
25mm 23mm
18mm
6mm 6mm
17mm
38mm
66mm
8mm
Route Prep.
2.5mm
2.5mm
11.5mm
11.5mm
16mm
20mm
12.70mm
12.70mm
9mm
9mm
