100 YRM 760 Description
General
This manual has the description for the parts of the
frame. Parts include the frame weldment, doors, bat-
tery rollers, covers, casters, caster wheels and battery
panels. The outer channel of the upright is part of the
lift truck frame. The base arms are part of the weldment
for the outer channel of the upright.
Description
The frame has mounts for the upright assembly, steering system, electrical system, hydraulic system, doors, access
panels, and covers. See Figure 1.

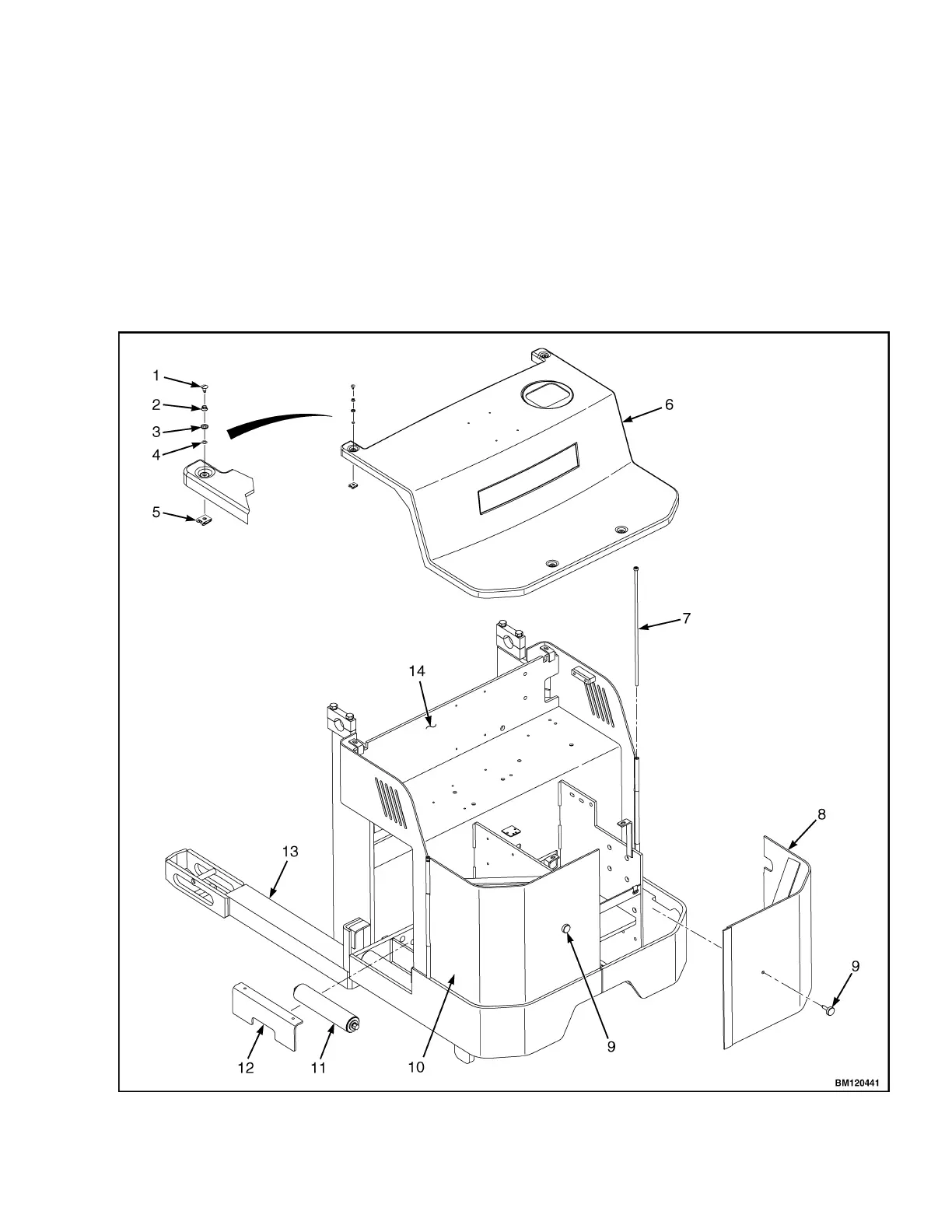

Figure 1. Frame (FS030BF, OS030BE, OS030BF, OS030EC, and OS030EF)
