Studio Manager for V2 02R96 Editor—Owner’s Manual
Using SM Windows

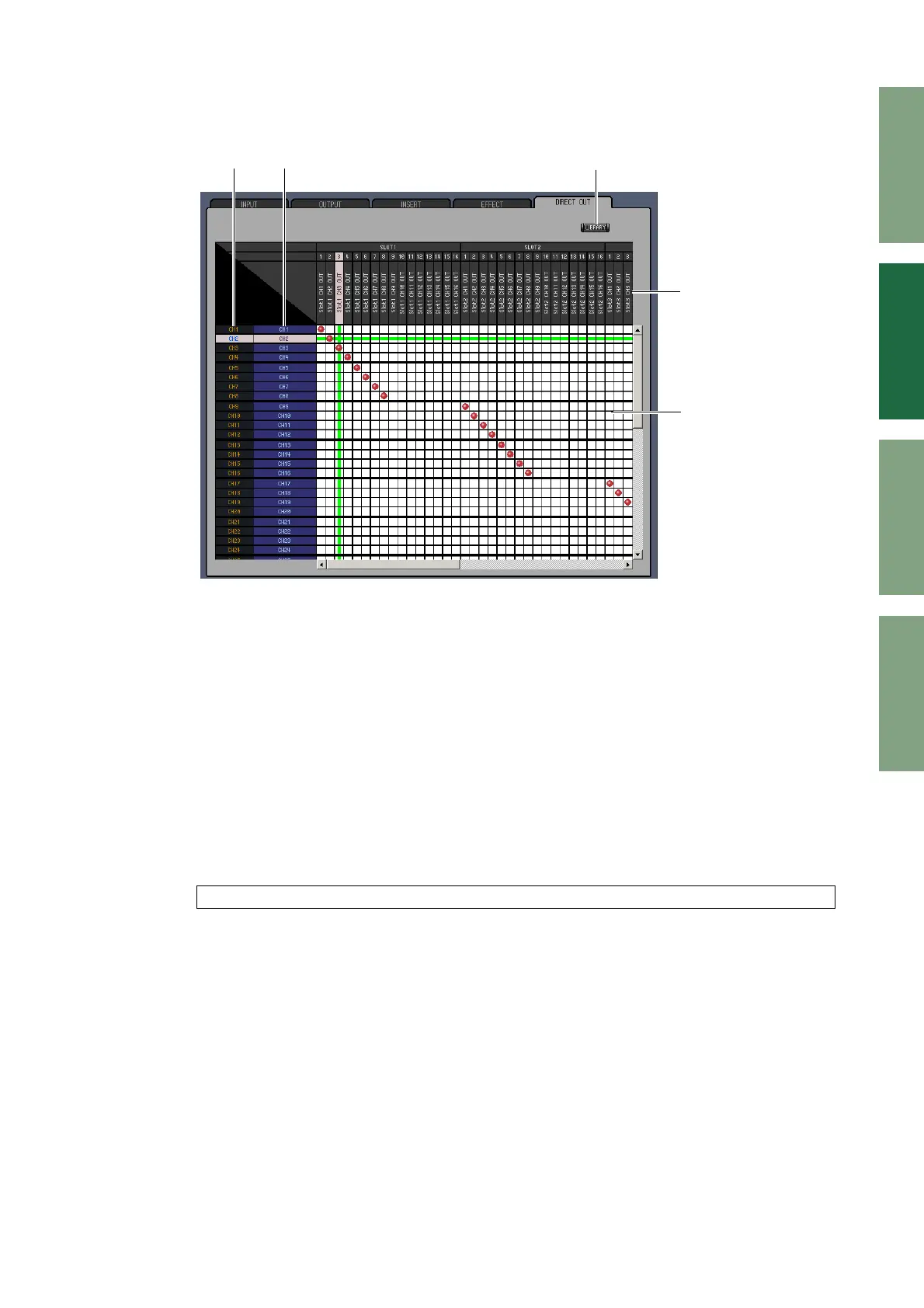

DIRECT OUT PATCH Page
A Channel IDs
These are the Channel IDs.
B Long channel names
These are the Channel long names. To edit a name, click it and type.
C [LIBRARY] button
This button opens the Output Patch Library window.
D Port names
These are the Port names. To edit a name, click it and type.
E Patchbay
The patchbay is used to patch output ports to the Direct Outs. Active patches are indicated by a red
dot. To make a patch, click a square. To unpatch, click a red dot.
Note: You can also use the cursor keys and the <ENTER> key on the computer keyboard to make a patch.
BA
C
E
D
