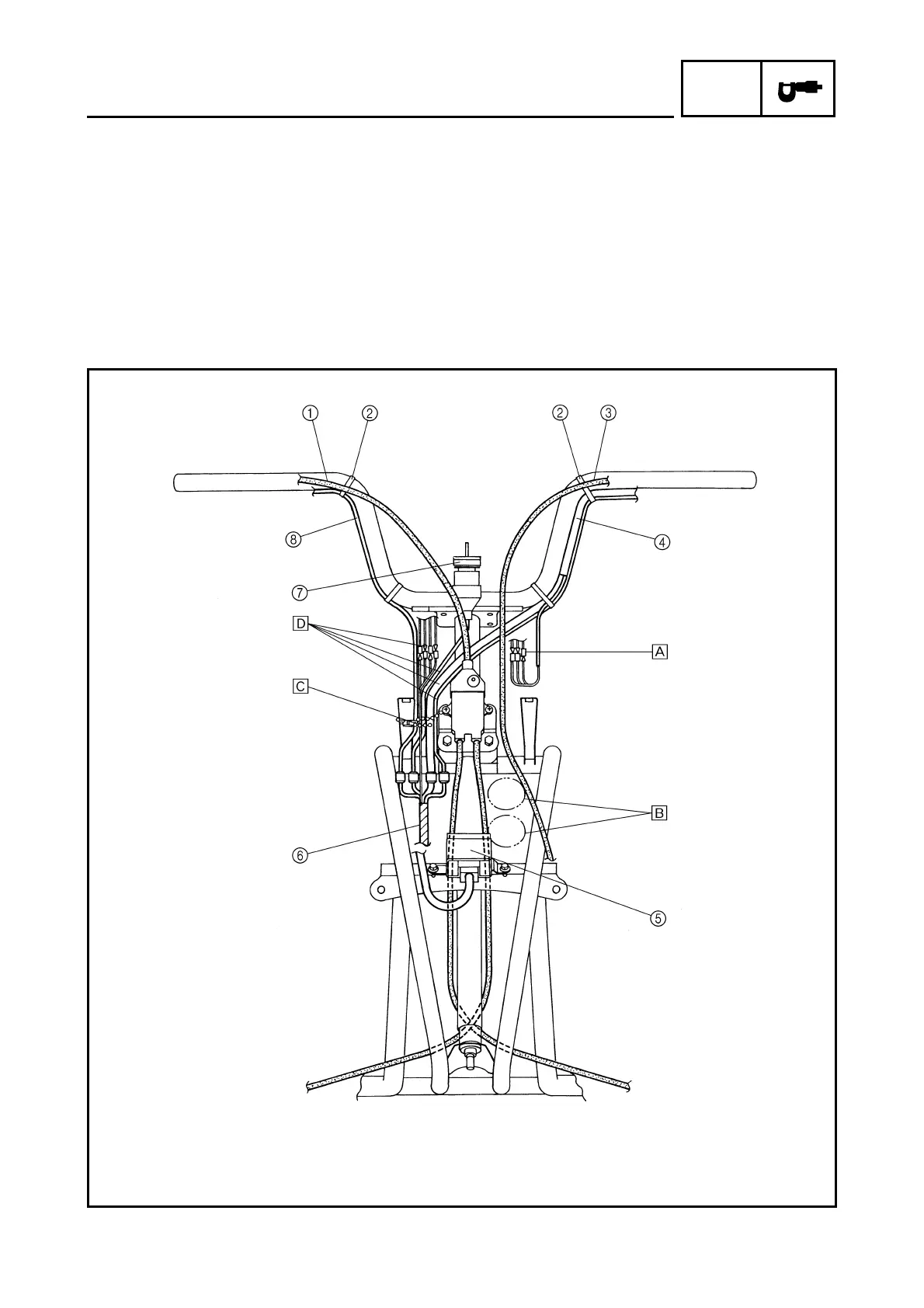

1 Front brake cable
2 Band
3 Rear brake cable
4 Rear brake switch lead
5 CDI unit
6 Wire harness
7 Main switch
8 Front brake switch lead
È Pass leads in front of the brake cable and con-
nect them inside the headlight body.
É Pass the inlet and outlet hoses between the
brake cables.
Ê Clamp the front brake switch lead, rear brake
switch lead, main switch lead, handlebar switch
lead, and wire sub-leads with a plastic clamp.
Ë Pass the leads between the throttle cable and
front brake cable.
CABLE ROUTING
To Next Page
